RS430MNX02A01is a 43 inch outdoor digital signage from Risingstar, it actually modified from the classic 43-inch window facing display RS430MNX01D01, with antenna and special Android motherboard to becom an outdoor TV. It has same function with general TV, also the Risingstar own design structure to adapt the outdoor environment.
Risingstar monitors always has far higher brightness than most of our competitors, for the specific 43-inches we can reached 4000 nits even much higher, more information please searching on our website:
Size (inch) | 32 | 43 | 49 | 55 | 65 |
Model number | RS320HNX02D05 | RS430MNX02A01 | / | / | / |
Brightness (cd/m2) | 1500 | 1500 | 2000 | 2000 | 3000 |
Resolution (pixels) | 1920*1080 | 1920*1080 | 1920*1080 /3840*2160 | 1920*1080 /3840*2160 | 1920*1080 /3840*2160 |
Power (Watt) | 80 | 160 | 180 | 240 | 300 |
Operating temperature | 0 ~ 50℃ | -20 ~ 50 ℃ | 0 ~ 50℃ | 0 ~ 50℃ | 0 ~ 50℃ |
Top grade LCD panel: Risingstar has ability making our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high quality displays for each of our customers.

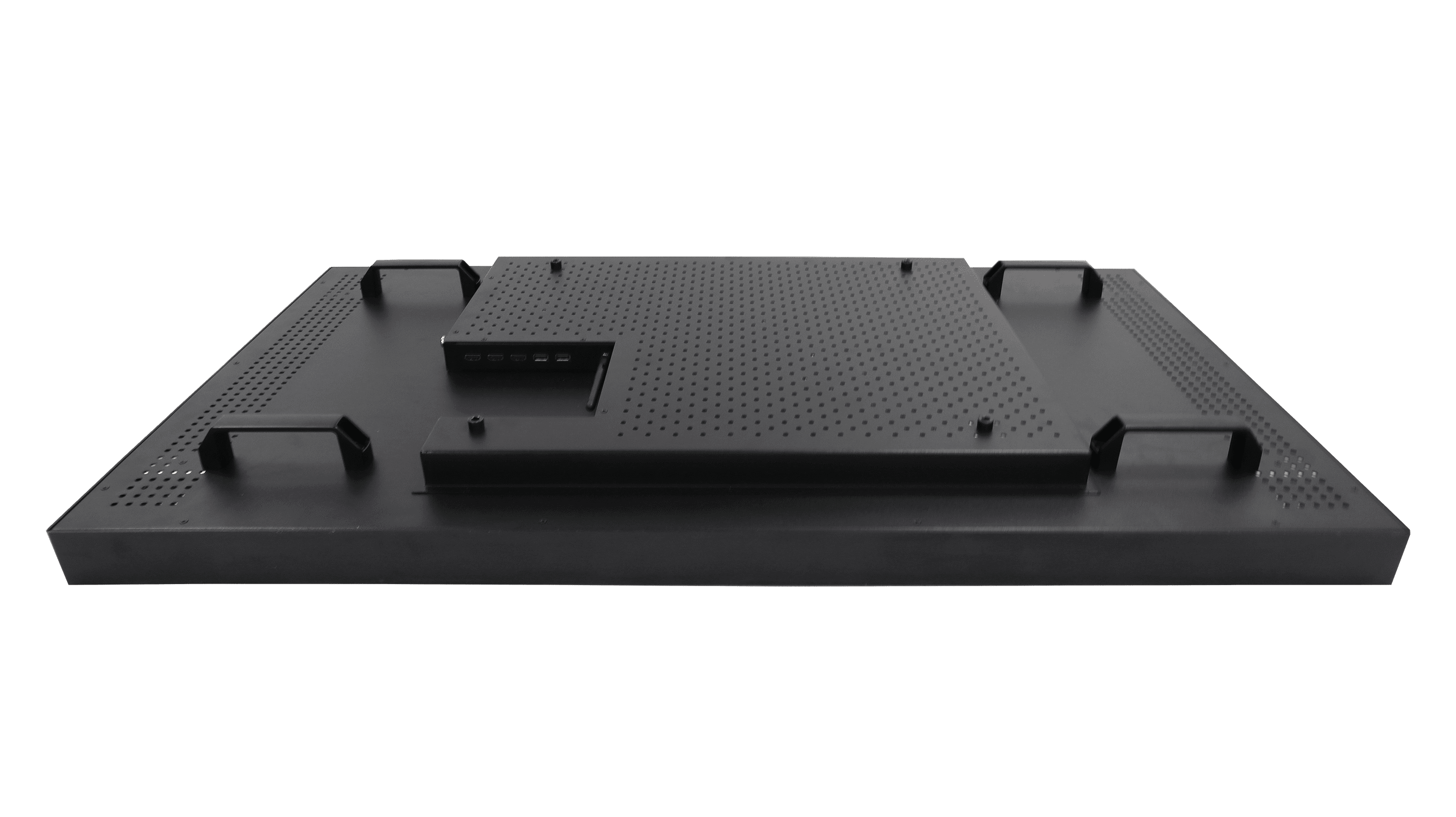

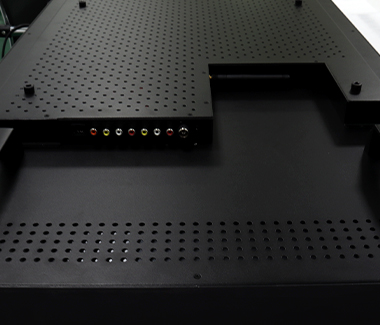

Rugged and unique housing: This display has unqiue housing, the electronic devices box on the housing is not a regular square, instead it has a concavity to set the extra interfaces, this is the mainly difference between digital signage and TV; This design also make the interfaces are closed enough to make the connection looks simply.
High adaptability electronic: Risingstar has customers from all over the world, EU, US, Asia...using the right plug and adapt different voltage is the basic issue we should figure out for our customers, you do not need worry about this; the possibly OS for the display, we can offer both PC and Android to make you using easier; also the interfaces, HDMI/USB/VGA/DVI/DP/Type-C/RJ45 by your choice, our enegineer will help you found the most suitable motherboard;

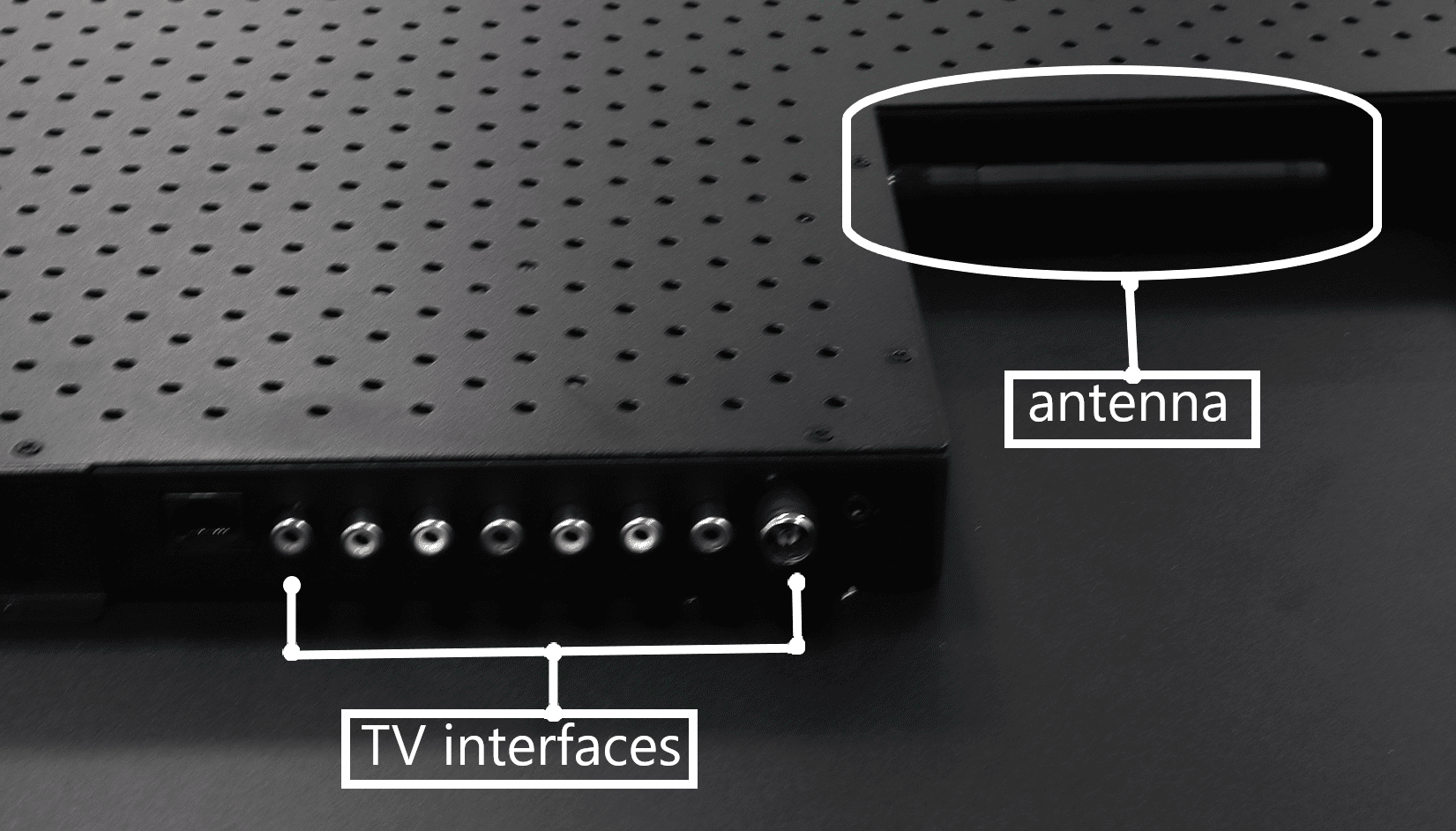

For this outdoor TV, we also provide TV interfaces and antenna.
Ultra wide viewing angle: Most of the Risingstar display is IPS screen, which has extremely high viewing angle could reach 178° for both horizontal and vertical direction.
Multiple mounting type: for each display our engineer will reserved the mounting hole by your request, you can mounting it on the wall, ceiling, floor standing, hanging...whatever your choice, and our default mounting is VESA.
43-inch window facing display series:
RS430LNX01P01, lower brightness but full waterproof indoor display, special product for low light environment such like Museum/Aquarium...
RS430HNX02D05, much thincker and heavier type, but lower consumption and unique outer shell, all these for "Mute"...
RS430MNX01D01, classic design, the standard type of 43-inch window facing display
| Model Name | RS430MNX02A01 |
| Screen Size | 43" |
| Display Area (mm) | 940.896(H) x 529.254(V) |
| Brightness | 2000 cd/m2 |
| Resolution | 3840*2160 |
| Aspect Ratio | 16:09 |
| Contrast Ratio | 1100:1 |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Display Colors | 16.7M |
| Response Time (Typical) | 6 (Typ.)(Tr/Td) (ms) |
| Android motherboard | 2G RAM+16G ROM |
| Input Interface (HDMI) | RJ45,COAX,CVBS1/AUDIO IN1,CVBS2/AUDIO IN2,TV,EARPHONE OUT,HDMI*3,,USB*2, Built-in Wifi |
| OSD Key | IR Remote Control |
| Input Power | AC 200-240v |
| Power Consumption | 130W |
| Radiator System | Automatic heat dissipation |
| Dimensions (mm) | 1014.2*602.4*88mm |
| Mounting | 400x400mm Screws metric M8 |
| Weight (Net) | TBD |
| Operating Temperature | 0 ˚ C ~ 50 ˚ C |
| Storage Temperature | -20 ˚ C ~ 60 ˚ C |
| Screen surface | With Anti glare protective glass |
