RisingLCD waterproof high brightness LCD displays are designed with high brightness sunlight readable brightness, IP65 waterproof and dust-proof specificaiton, size from 21.5 inch to 86 inch, brightness from 500 nits to 5000nits, to meet you different request on different environment.

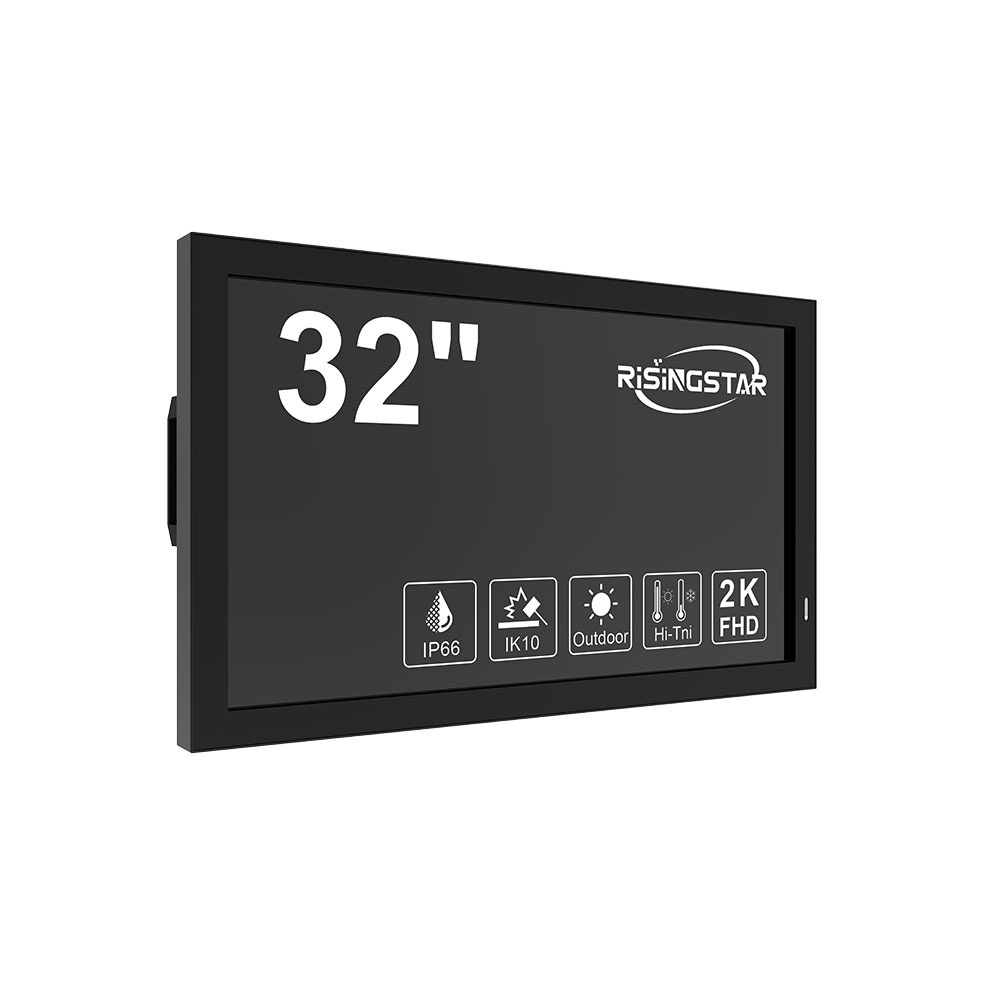

RS320HNX02D05 is a 32 inch outdoor digital signage from Risingstar, it actually the "plus version" of the classic 32-inch window facing display RS320MNX01D01, keep high brightness but lower power consumption.
Risingstar monitors always has far higher brightness than most of our competitors, for the specific 32-inches we can reached 4000 nits even much higher, more information please searching on our website:
Size (inch) | 21.5 | 32 | 43 | 49 |
Model number | RS215MNX01D01 | RS320HNX02D05 | RS430HNX02D05 | RS490MNX01D01 |
Brightness (cd/m2) | 1000 | 3000 | 3000 | 2000 |
Resolution (pixels) | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 /3840*2160 |
Power (Watt) | 80 | 160 | ||
Operating temperature | 0 ~ 50℃ | -20 ~ 50 ℃ | -20 ~ 50 ℃ | 0 ~ 50℃ |
Out of the Ordinary: This series of displays has special housing crave to increasing the ability of head dissipation without any fans or A/C inside it, this design will decreasing the poewr consumption and the running cost.
Top grade LCD panel: Risingstar has ability making our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high quality displays for each of our customers.
Rugged and unique housing: This display has unique outershell, you can see the crave on the display is a sort of thermal dissipation design by our own design, which allows the display to dissipation heat without a fan or A/C, to save the power consumption; it can be fully muted if you need to mount it in some quiet place such like a library, this also the reason why this outdoor display sometimes will mount indoor by our customers.
High adaptability electronic: Risingstar has customers from all over the world, EU, US, Asia...using the right plug and adapt different voltage is the basic issue we should figure out for our customers, you do not need worry about this; the possible OS for the display, we can offer both PC and Android to make you using easier; also the interfaces, HDMI/USB/VGA/DVI/DP/Type-C/RJ45 by your choice, our enegineer will help you found the most suitable motherboard.
Ultra wide viewing angle: Most of the Risingstar display is IPS screen, which has extremely high viewing angle could reach 178° for both horizontal and vertical direction.
Multiple mounting type: for each display our engineer will reserved the mounting hole by your request, you can mounting it on the wall, ceiling, floor standing, hanging...whatever your choice, and our default mounting is VESA.
Window facing display series:
RS320MNX01D01, classic design, the standard type of 32-inch window facing display
RS320MNX03D01, semi-outdoor and super slim design, the most highest integrated display we ever made...
RS430MNX01D01, classic design, the standard type of 43-inch window facing display...
Display | Panel Size | 32 inch |
Display Area | 698.4*392.8mm | |
Brightness | 3000 nits sunlight readable | |
Resolution: | 1920*1080 | |
Aspect Ratio: | 16:9 | |
Response Time | 6/9 (Typ.)(Tr/Td) ms | |
View Angle | 89/89/89/89 (Min.)(CR≥10) | |
Backlight | (DLED) | |
Life Hour | 50000H | |
Control System | Smart Dimming | Support |
Intelligent Temperature Control | Support | |
Remote Control Function | Support | |
AV Inputs | Video | HDMI, VGA |
Electrical Parameters | Input Voltage | AC110V/220V,50/60HZ |
Maximum Power | 80W | |
Shell | Shell Material | Sheet Metal |
Product Size | 798*491*108mm | |
Weight | 40kg | |
Protection Glass | Thickness | 5mm AR tempered glass |
Accessories | Included | AC Power Cable, Remote Control, Wall Mount |
Operating Environment | Operating Environment | Outdoor |
Operating Ttemperature and Humidity | -20-50℃/5%-95%RH | |
Multimedia | Motherboard Type | Android/PC/HD Driver Board (optional) |
IO interface | HDMI/VGA/DVI |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
