RisingLCD high brightness LCD window facing display are specially designed for high volume retail and corporate inside or semi-outdoor spaces to deliver advertising, high brightness and seamless design ensure the digital content vividly stands out from the crowd.

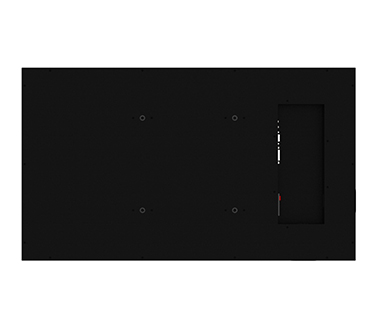

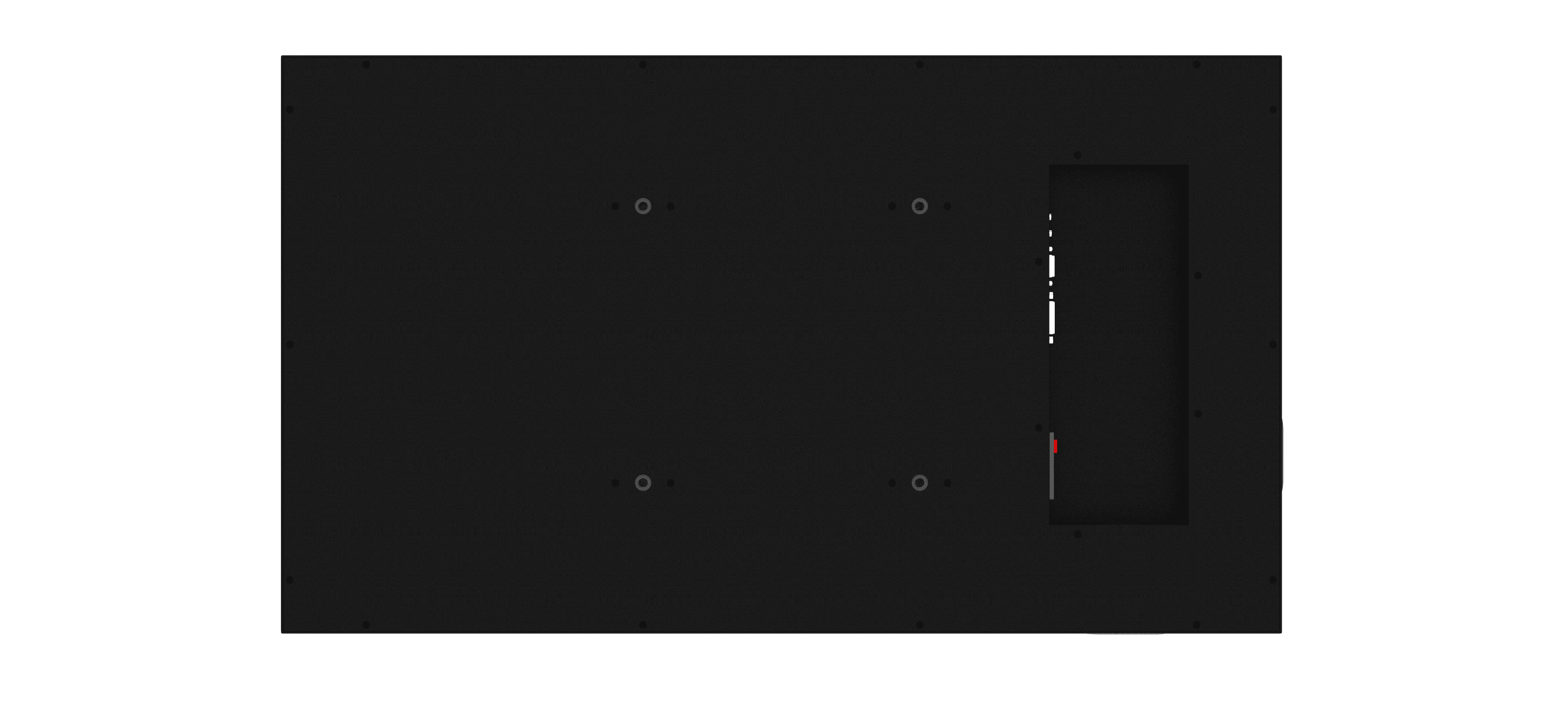

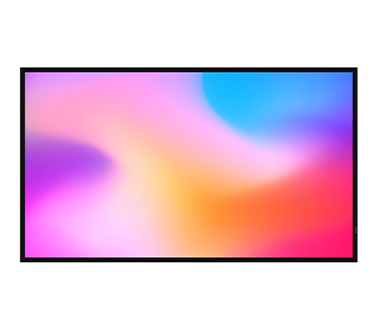

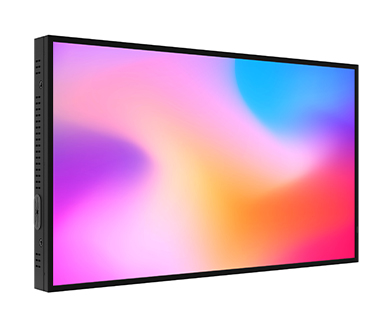

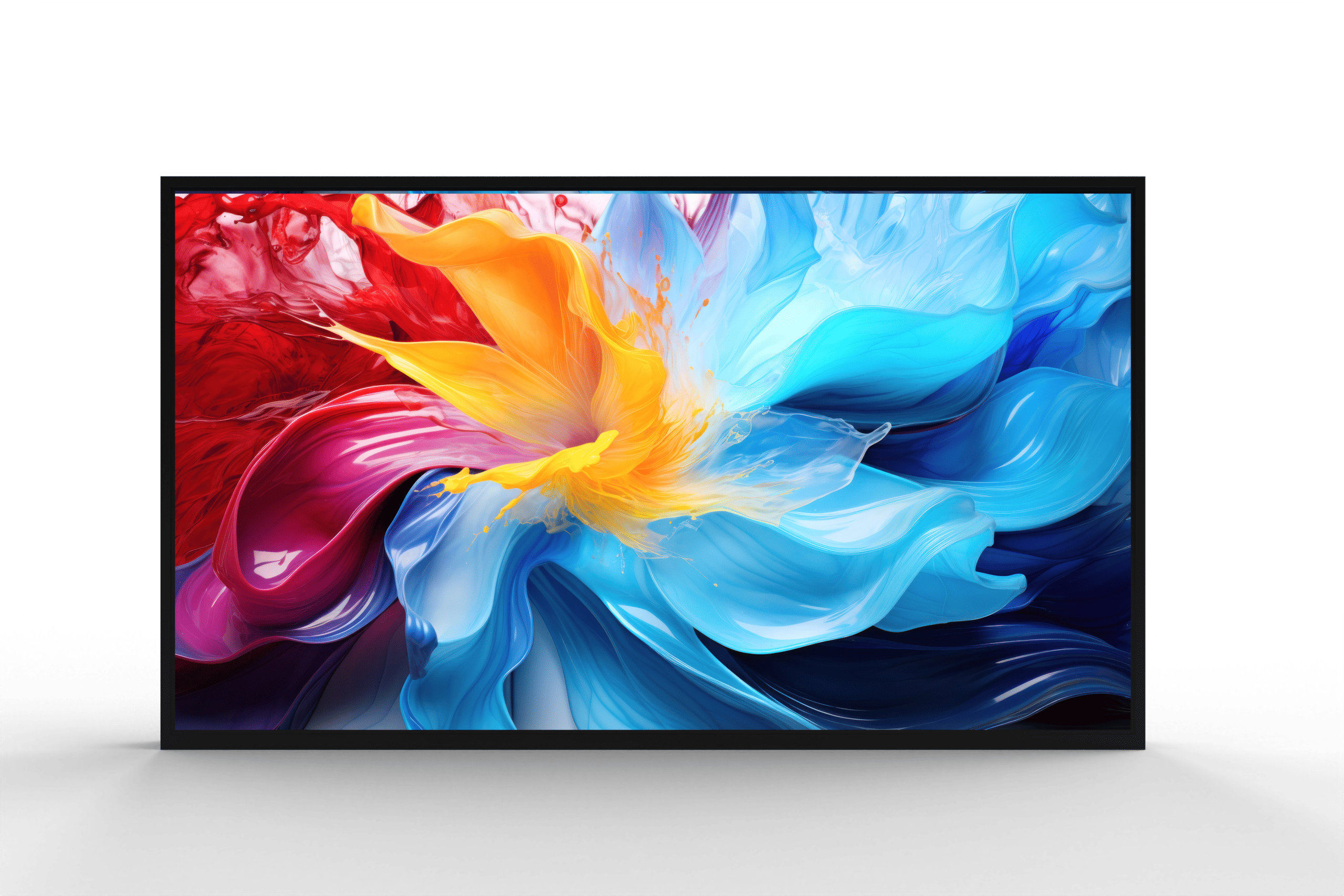

RS320MNX03D01 is a 32 inch outdoor digital signage from Risingstar, the original type of this product is the classic Risingstar window-facing display RS320MNX01D01, this new modified type removes the electronic devices box(motherboard, fans, power board, etc.) on the backside of the display, all those devices now hiding inside the display, make the whole display looks much regular.
Risingstar monitors always have far higher brightness than most of our competitors, for the specific 32-inches we can reach 4000 nits even much higher, For more information please search our website: www.risinglcd.com
Size (inch) | 21.5 | 32 | 43 | 49 | 55 |
Model number | RS215MNX01D01 | RS320MNX03D01 | RS430MNX03D01 | RS490MNX01D01 | RS550MNX01D01 |
Brightness (cd/m2) | 1000 | 2500 | 2500 | 2000 | 3000 |
Resolution (pixels) | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 /3840*2160 | 1920*1080 /3840*2160 |
Power (Watt) | TBD | TBD | |||
Operating temperature | 0 ~ 50℃ | -20 ~ 80 ℃ | 0 ~ 50 ℃ | 0 ~ 50℃ | 0 ~ 50℃ |
Top grade LCD panel: Risingstar has the ability to make our own design LCD panels, and we purchase A and A+ level Open-cell from LG, BOE, AUO, and other famous liquid crystal glasses makers directly, this is proof to make high-quality displays for each of our customers.

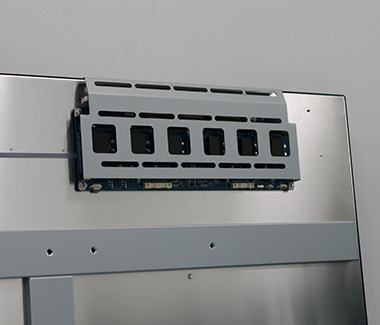

Rugged and unique housing: Unlike the typical window facing display, all the electronic devices of RS320MNX03D01 almost directly attached to its LCD panel, any deformation of the housing means the devices inside will hit with LCD panel and break together, also the possible ESD problem due to the devices are inside the display, it should has a much strength housing than the general product.
High adaptability electronic: Risingstar has customers from all over the world, EU, US, and Asia...using the right plug and adapting different voltages is the basic issue we should figure out for our customers, so you do not need to worry about this; the possible OS for the display, we can offer both PC and Android to make you using easier; also the interfaces, HDMI/USB/VGA/DVI/DP/Type-C/RJ45 by your choice, our engineers will help you found the most suitable motherboard.
Ultra wide viewing angle: Most of the Risingstar display is an IPS screen, which has an extremely high viewing angle and can reach 178° for both horizontal and vertical directions.

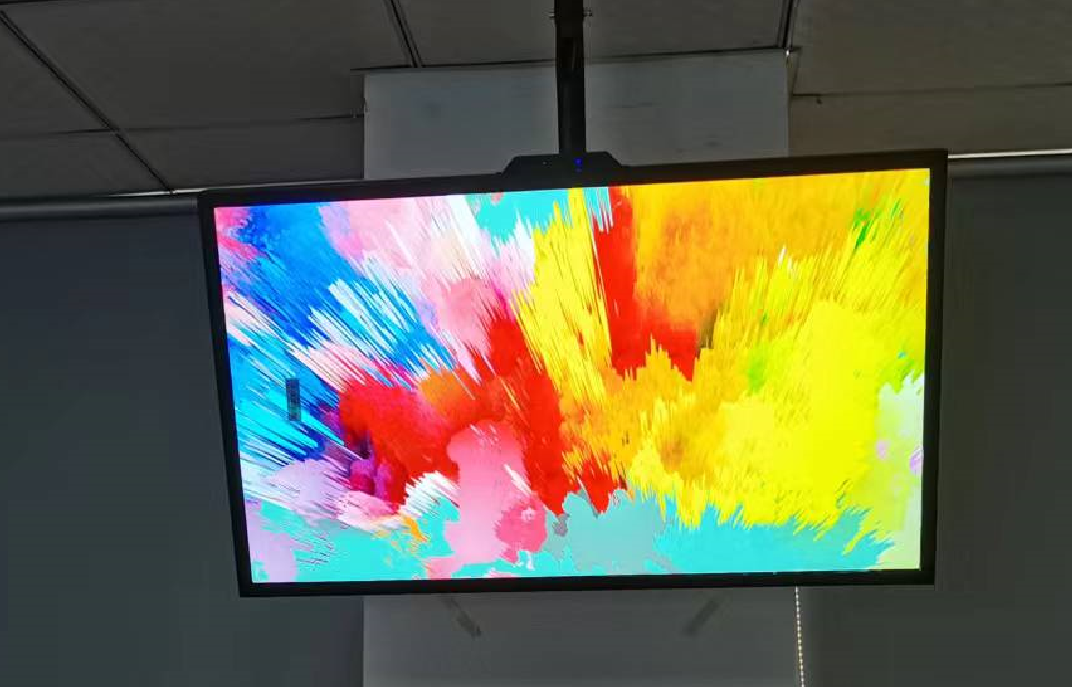

Multiple mounting type: for each display our engineer will reserve the mounting hole by your request, you can mounting it on the wall, ceiling, floor standing, hanging...whatever your choice, and our default mounting is VESA.
window facing display series:
RS430LNX01P01, lower brightness but full waterproof indoor display, special product for low light environment such like Museum/Aquarium...
RS430MNX03D01, semi-outdoor and super slim design, the most highest integrated display we ever made...
RS430MNX01D01, classic design, the standard type of 43-inch window facing display
| Model Name | RS320MNX03D01-BK |
| Screen Size | 32" |
| Display Area (mm) | 698.4(W)×392.86(H) mm |
| Brightness | 2500 cd/m 2 (Light Sense Auto Adjust) |
| Resolution | 1920x1080 |
| Aspect Ratio | 16:09 |
| Contrast Ratio | 1300:1 |
| Response Time (Typical) | 6(Typ.)(Tr/Td) (ms) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Display Colors | 16.7M |
| OS | N/A |
| OSD Key | IR Remote Control |
| Speaker | 2*5W |
| Input Power | AC110-240V |
| Power Consumption | TBD |
| Radiator System | Automatic heat dissipation |

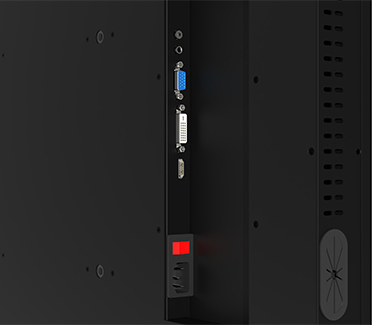

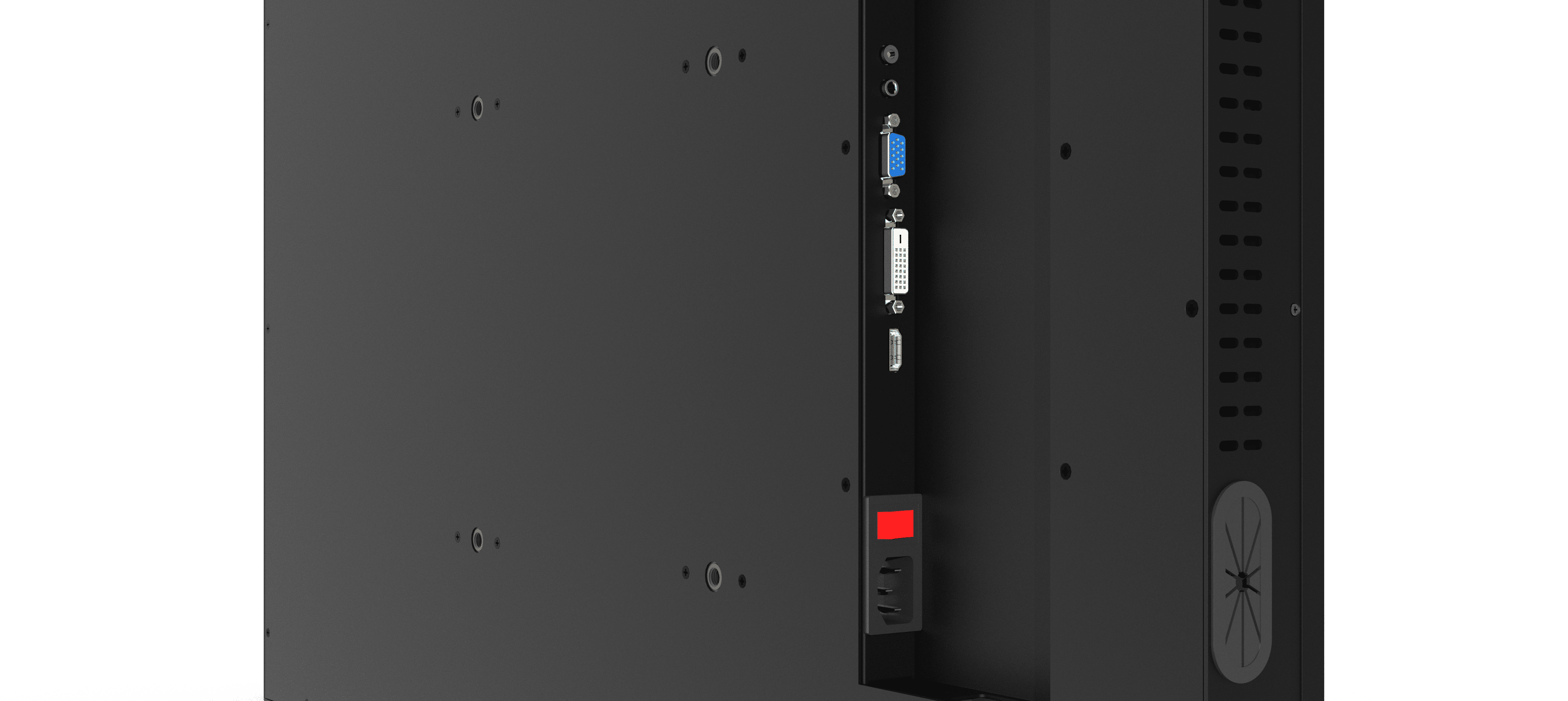

| Input Interface | PC AUDIO IN*1 EARPHONE OUT*1 |
| VGA*1 HDMI*1 DVI*1 AC IN*1 | |

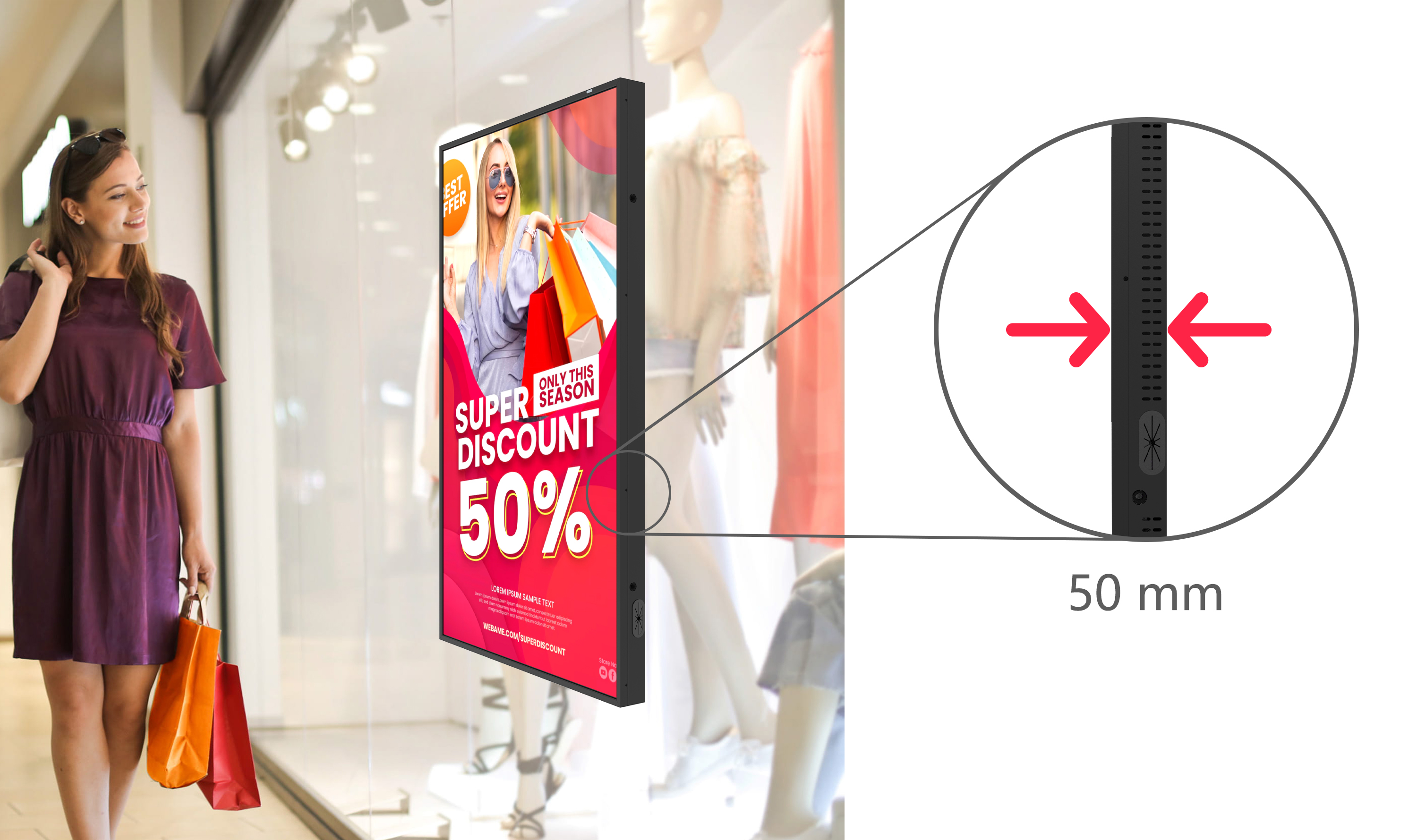

| Dimensions (mm) | 723.4*418*50mm |
| Mounting | 400x200mm 4-M8,MAX_DEPTH=10mm |
| Weight (Net) | 10.5 KG |
| IP（Ingress Protection） | N/A |
| Operating Temperature | -20℃~80℃ |
| Storage Temperature | -20℃~ 80℃ |
