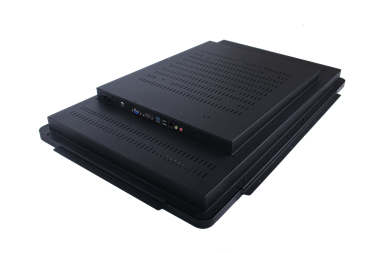

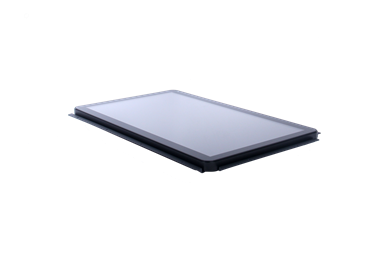

RisingLCD 23.6 inch sunlight readable open frame monitor can be customize in different sizes for multi-usage such as ATM ,viewing digital maps and other machines
RisingLCD 23.6 inch open frame sunlight readable tft LCD is with thin body design, high resolution, fast response and vivid color, the display is a light-weight, bright display designed for outdoor device,
Sunlight readable brightness 2000 nits
2000 nits, high brightness ensures that the screen remains visible even in direct sunlight, making it easy for people to read important information and messages.
Open frame
1. Thin profile: The open-frame design allows the display to have a thin profile, which makes it suitable for applications where space is limited.
2. Easy integration: The open-frame design makes it easy to integrate the display into different types of products.
3. Cost-effective: Open-frame displays are often more cost-effective than other types of displays because they do not have an additional enclosure.
4. Customizable: Open-frame displays can be customized to meet specific application requirements, such as size, resolution, and brightness.
5. Versatile: They are suitable for a wide range of applications, including gaming machines, industrial equipment, medical devices, and transportation systems.
| Panel | |
| display screen | LCD module |
| display size | 23.6 inches |
| display area | 521.5(W)×293.2(H) mm |
| display resolution | 1366*768 |
| Zoom | 1 6 : 9 |
| brightness, | 2000 cd/m2 (center point, t yp ), sunlight readable |
| contrast | 5000:1 |
| viewing angle | 89/89/89/89(Min.)(CR≥10) |
| Response time | 8ms ( Gray To Gray ) |
| Uniformity of brightness | ≧ 75% |
| color depth | 16.7M |
| Operation temperature | -20 ~ 60 °C ,high tni |
| system configuration | |
| main chip | 68676 |
| multimedia | H265/H264 video decoding |
| system version | OSD |
| Interface | |
| input interface | USB * 1 DC*1 hdmi*1 VGA*1 |
| power input | AC 110-220V ~ 50/60Hz |
