RS320MHX01D01 is a 32 inch LCD display from Risingstar from Risingstar, it has a light sensor on the top to detect the environmental light changing and automatically adjust the brightnees to make sure the screen is keep readable at different time.
Risingstar monitors always have far higher brightness than most of our competitors, for the specific 32-inches we can reach 4000 nits even much higher, more information please searching on our website:
Size (inch) | 21.5 | 32 | 43 | 49 |
Model number | RS215MNX01D01 | RS320MHX01D01 | RS430HNX02D05 | RS490MNX01D01 |
Brightness (cd/m2) | 1000 | 2000 | 3000 | 2000 |
Resolution (pixels) | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 /3840*2160 |
Power (Watt) | TBD | 160 | ||
Operating temperature | 0 ~ 50℃ | 0 ~ 50 ℃ | -20 ~ 50 ℃ | 0 ~ 50℃ |
Top grade LCD panel: Risingstar has ability making our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high quality displays for each of our customers.

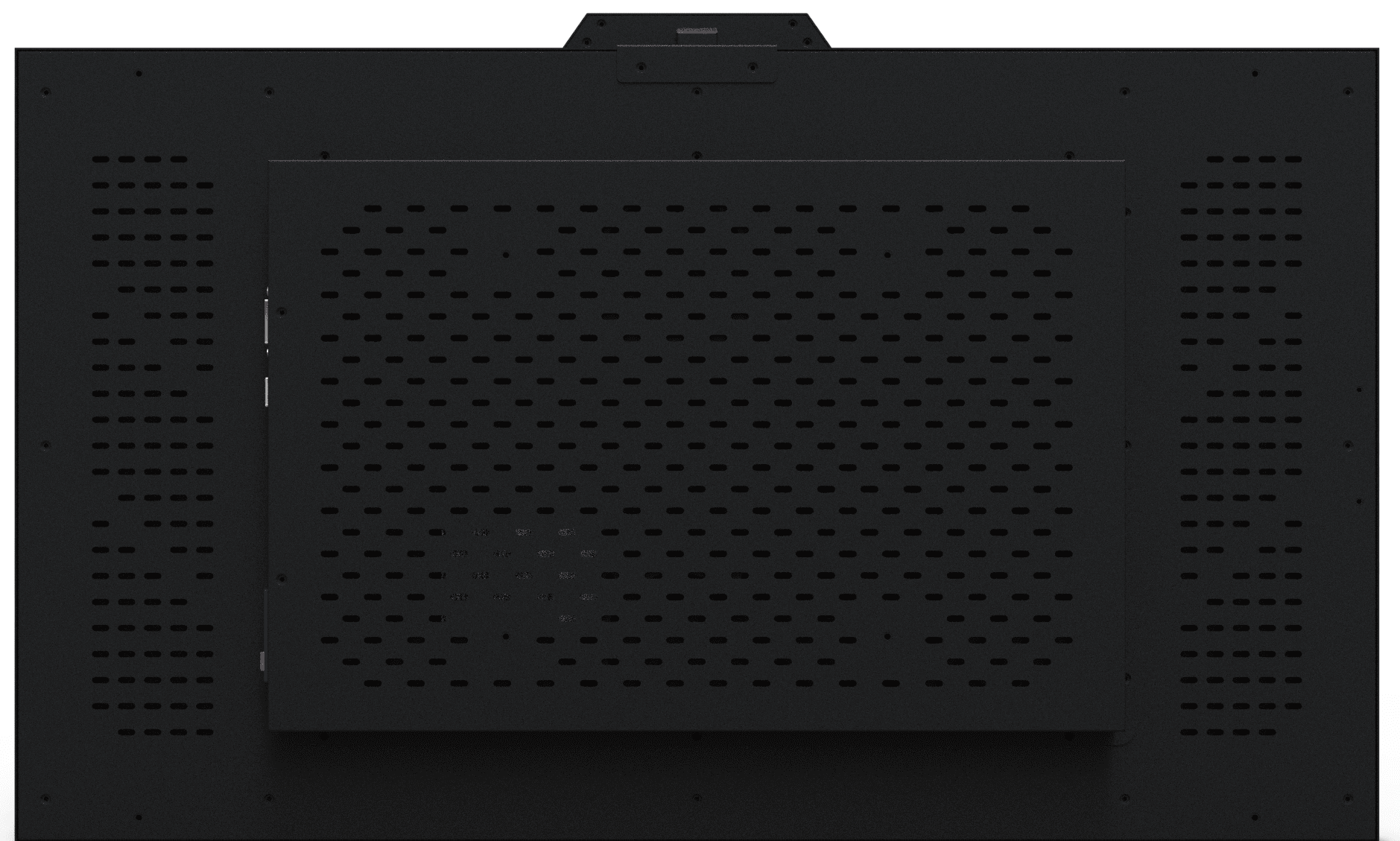

Rugged and unique housing: This display has unqiue outershell, it has over 100 holes on the housing to make the air pass through easier, the fans inside will pump them in/out to form a circulation, the heat will follow the circulation and the display can keep working under scorching weather environment.

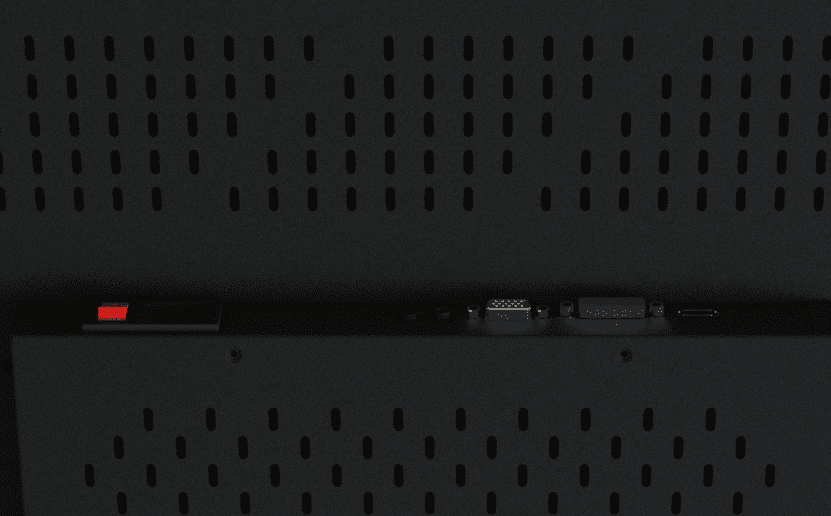

High adaptability electronic: Risingstar has customers from all over the world, EU, US, Asia...using the right plug and adapt different voltage is the basic issue we should figure out for our customers, you do not need worry about this; the possibly OS for the display, we can offer both PC and Android to make you using easier; also the interfaces, HDMI/USB/VGA/DVI/DP/Type-C/RJ45 by your choice, our enegineer will help you found the most suitable motherboard.
Light sensor: The light sensor on the top allowed the display adjust the brightness automatically and keep the screen readable for human eyes.
Ultra wide viewing angle: Most of the Risingstar display is IPS screen, which has extremely high viewing angle can reach 178° for both horizontal and vertical direction.
Multiple mounting type: for each display our engineer will reserve the mounting hole by your request, you can mounting it on the wall, ceiling, floor standing, hanging...whatever your choice, and our default mounting is VESA.
Window facing display series:
RS320MNX01D01, classic design, the standard type of 32-inch window facing display
RS320MNX03D01, semi-outdoor and super slim design, the most highest integrated display we ever made...
RS430MNX01D01, classic design, the standard type of 43-inch window facing display...
| Screen Size | 32 inch |
| Display Area (mm) | 1018.8(H) x 572.67(V) |
| Brightness | 2000 nits |
| Resolution | 1920x1080 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1200:1 |
| Pixel Pitch (mm) | 0.630(H) x 0.630(V) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Color Saturation (NTSC) | 72% |
| Display Colors | 16.7M |
| Response Time (Typical) | 8 (Typ.)(Tr/Td) (ms) |
| Input Interface | EARPHONE OUT*1 AUDIO IN*1 VGA*1 DVI*1 HDMI*1 AC IN*1 |
| OSD Key | AUTO /MENU /LEFT/ RIGHT /EXIT/SELECT /POWER |
| Glass | Optional |
| Touch Type | Optional |
| Input Power | AC 110-240v |
| Power Consumption | TBD |
| Radiator System | N/A |
| Dimensions (mm) | 1068.2 x 592.8 x 78mm |
| Mounting | 400x200mm Screws metric M8 |
| Weight (Net) | 18 kgs |
| Operating Temperature | 0 ˚ C ~ 50 ˚ C |
| Storage Temperature | -20 ˚ C ~ 60 ˚ C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
