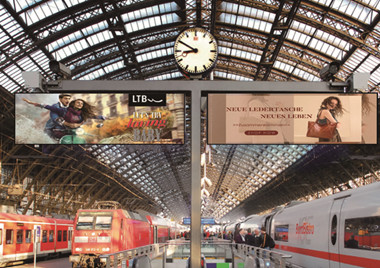

The stretched bar type LCD displays most of time used for digital signage and public transport suitable for applications in public transport like bus and Train or Retail. We also offer sunlight readable high bright bar types stretched display which brightness is up to 3000 nits, and size from 19.5 inch to 90 inch, it is suitable for ticket and vending machines and outdoor waterproof requirements.
37.6 inch stretched LCD digital signage for public transport station |risinglcd

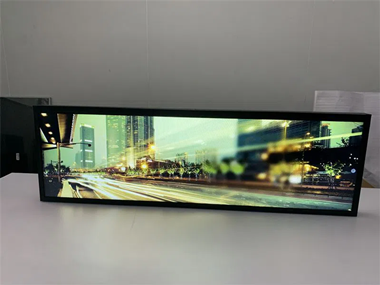

RisingLCD 37.6 inch wide stretched LCD display is designed to meet the special applications, it is with 2000 nits high brightness and ultra-wide aspect ratio that is ideal for grabbing your audience’s attention, and give perfect visual performance in a wide outdoor public application.
The stretched bar type LCD displays most of time used for digital signage and public transport suitable for applications in public transport like bus and Train or Retail. We also offer sunlight readable high bright bar types stretched display which brightness is up to 3000 nits, and size from 19.5 inch to 90 inch, it is suitable for ticket and vending machines and outdoor waterproof requirements.
The working temperature of this 37.6 inch wide stretched LCD display is -20 ~ 70°C, and the storage temperature is -30 ~ 80°C. The aspect ratio is >3:1 (width:height), and the pixels are arranged in RGB vertical stripes. Its display area size is 919.296 (width) × 258.552 (height) mm, the appearance size is 964.5 (width) *303.8 (height) *75 (thickness ) mm.
| Panel Features | Input Ports | ||
| Screen Size | 37.6" | USB OTG | 1 |
| Active Display Area | 919.3(H) x 258.6 (V) | USB | 1 |
| Native Resolution | 1920(RGB)×540, FHD, 53PPI | TF | 1 |
| Brightness (Type) | 2000 Nits | RJ45 | 1 |
| Contrast Ratio (Type) | 1000:1 | HDMI out | 1 |
| Viewing Angle | 178(H)/178(V) | Audio Feature | |
| Display Color | 8 bit/16.7M | Speaker Power Output | yes |
| Frame Rate | 60Hz | DC IN | 90-240V/50HZ |
| Backlight | LED | Power consumption( Watt) | 70W(Max) |
| Life Time | >50000 Hrs | Mechanical Design | |
| Chassis Material | 金属 | ||
| Functions | Chassis Colors | 黑色／Black | |
| OS | Andriod 7.1.2 | Product Size | 964.5*303.8*75mm |
| Motherboard model | RK3288 | Packing Carton Dimension(W×D×H) | 1100*430*150 |
| CPU | Cortex-A17 | Net Weight | 7.6(KG) |
| Main frequency | 1.8 GHz | Gross Weight | 9.6(KG) |
| RAM | 2GByte | Accessory | |
| Flash | 16GByte | Remote Control | 1 |
| Networking support | Built-in WiFi | Wall bracket | 1 |
| Bluetooth | BT4.2 | OTG cable | 1 |
| Picture format | JPG、JPEG、BMP、GIF、PNG, etc | ||
| Audio | MP4、WAV、APE、FLAC、AAC etc. | ||
| Video format | Support rich video format: etc.H.265，H.264， VP8, MAV, WMV, AVS, H.263, MPEG4 etc. | ||
Ask a quote for the latest price and one of our team members will respond as soon as possible.
