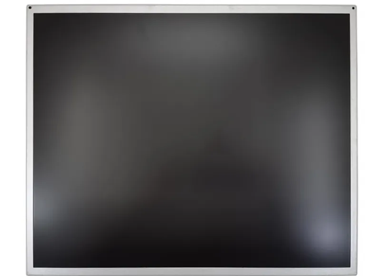

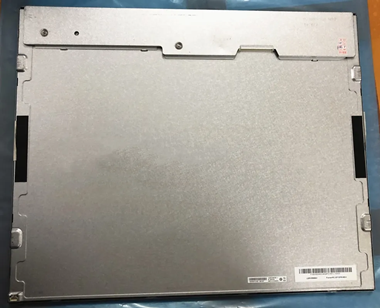

The sunlight readable 19 inch square tft lcd panel RS190HAN-GE15 is composed of a TFT-LCD panel,1500 nit high brightness, driver IC, FPC, a backlight unit
A good sunlight readable display is typically considered to be an LCD with 1500 nits brightness, RisingLCD RS190ETN-GE15 can achieve 1500 nits high brightness, that screen can be clearly read even in the direct sunlight, RS190ETN-GE15 is a 19 inch high brightness TFT LCD panel screen that with led driver, and built in with controller IC, it supports LVDS interface, high brightness 1,500 nits, it is suitable for outdoor application.
19 inch sunlight readable Square TFT LCD panel, 1500nits, LED Backlight 1280*1024
High Brightness 1500 nits
Sunlight Readable screen
Wide Operating Temp.
With LED driver
BL MTBF: 50,000 hours
The 19 inch sunlight readable square LCD screen is often used for any embedded systems, industrial device, security and hand-held equipment which requires display in high quality and outdoor application.
| Screen Diagonal | 19 inch |
| Model No | RS190ETN-GE15 |
| Active Area | 376.32(W)×301.056(H) mm |
| Pixels | 1280(RGB)×1024, SXGA, 86PPI |

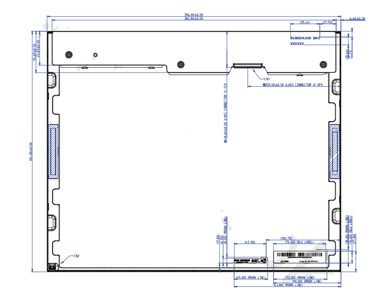

| Physical Size | 396(W)×324(H)×11.7(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| White Luminance ( Center ) | 1500 cd/m2 (Typ.) [cd/m2 ] |
| Contrast Ratio | 1000:1 (Typ.) |
| Optical Response Time | 3/7 (Typ.)(Tr/Td) ms |
| Nominal Input Voltage | 5.0V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Weight [g] | 0.84Kgs |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Support Color | 16.7M, 73% NTSC |
| Surface Treatment | Hard coating (3H), |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | -30 ~85 °C |
| Storage (Non-Operating) | -30 ~ 85 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
