RisingLCD can offer a wide spectrum of indoor and outdoor ultra stretch TFT LCD display, more stretch display bar are available from 19 inch to 86 inch, and brightness from 500 nits to 5000 nits.

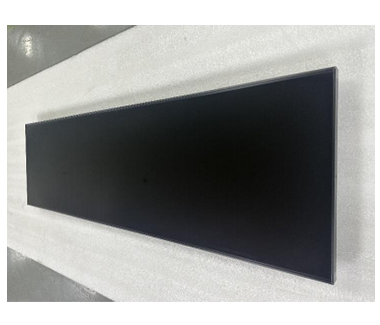

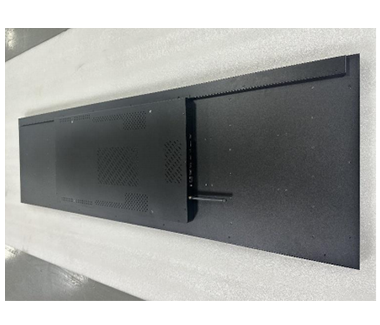

The RS58.5NET-NE7 is a 58.5 inch ultra wide stretch color TFT-LCD display with special aspect ratio 16:4.5 and wide resolution 3840*1080, it is RisingLCD stretch bar LCD display series product which designed for high brightness 700nits with power efficiency LED backlight. It provides LCD panel with specific aspect ratios and high brightness for digital signage, public transportation, exhibition hall, department store, and vending machine.
· 58.5" stretched LCD
· Stretched display (aspect ratio of 16:4.5)
· Brightness of 700 nits
· Active area: 1428.48(H)*401.76(V)
· Dimension: 1444.08(H)×420.36V)×27.58/57.2(D) mm
· Resolutions: 3840*1080
· Contrast ratio: 1200:1
· Wide viewing angle of 178° (H), 178° (V)
· Low power consumption
· MTBF: 50,000 hours
| Screen Diagonal | 58.5 inch |
| Model No | RS58.5NET-NE7 |
| Active Area | 1428.48(W)×401.76(H) mm |
| Pixels | 3840(RGB)×1080, 41PPI68 |
| Physical Size | 1444.08(H)×420.36V)×27.58/57.2(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| White Luminance ( Center ) | 700 cd/m2 (Typ.) [cd/m2 ] |
| Contrast Ratio | 1200:1 (Typ.) |
| Optical Response Time | 8 (Typ.)(G to G) |
| Back light | down edge side, 2-led light bar |
| OS | Android 8.0 |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Support Color | 16.7M, 72% NTSC |
| Surface Treatment | Antiglare (Haze 28%) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | 0 ~50 °C |
| Storage (Non-Operating) | -20 ~ 60 °C |
| Weight [g] | 11.8Kgs |
| VESA Mounting | 300*400mm |
