RisingStar range of Slimline Passenger Information Displays are perfect for bus and train platforms. These digital signage displays are all with high brightness , With a great brightness rating of 700 nits( 1000nits, 2500nits, 3000nits, 4000nits are available) these display clearly delivers contents and attract public attention, which is the ultimate display for outdoor visibility.

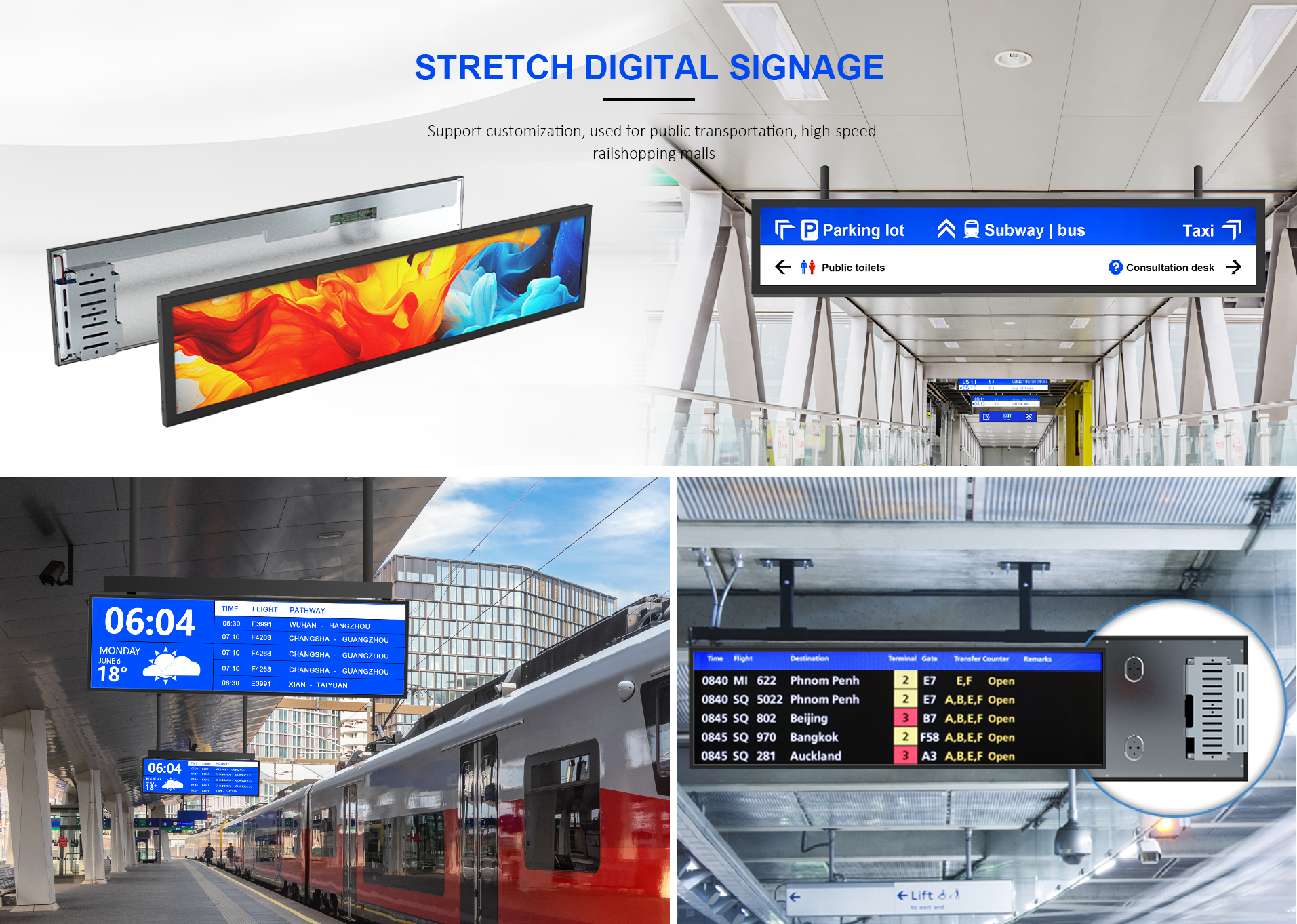

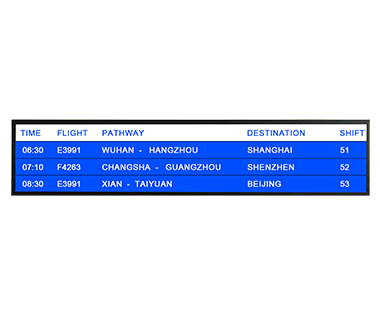

RisingStar RS430IVN-GD30 is 43 inch stretched tft LCD panel with a 1920*360 resolution, and >3:1 aspect ratio, and the brightness can achieve 3000nits after RisingStar modified that make this screen can be readable for the outdoor applications that is ideal for the passenger information display, that for airports, bus/railway station, subways transportation station
Main features for stretched tft LCD panel :
High brightness: 3000nits,
Screen Type: a-Si TFT-LCD
Display size: 43 inch
Wide Viewing Angle (H x V) 178 x 178
Industrial operating temperature range , -20~ 70 °C
Ultra high contrast: 4000:1
Auto brightness control
Application: Air ports, bus station, railway station, subways transportation station, shopping mall.
Industrial operating temperature range,
inch stretched digital signage display is with -20~ 70 °C wide range industrial operation temperature, that make it can work in a stable and failure-free way for a long period, it is successfully applied in transportation and automotive industry, can help the owner to prompt their brand and online advertising 7/24.
3000nits Ultra high brightness
With a brightness 3000nits, our inch stretched digital signage display boasts high visibility in bright environments, its clear visibility can delivery a variety of information even to those wearing polarized sunglasses.
Application a matrix with IPS/MVA technology, stretched digital signage display is readable from any angle and no gray scale inversion effect that is a normal feature of populated TN matrixes, a decrease in contrast when increasing the viewing angle is also significantly lower.
| Screen Diagonal | 43 inch |
| Brand | RisingStar |
| Model No | RS430IVN-GD30 |
| Active Area | 1073.78(W)×201.335(H) mm |
| Pixels | 1920(RGB)×360, 45PPI |
| Physical Size | 1107.4（H）*239.9(V)*54.1(D) |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 4000:1 |
| White Luminance ( Center ) | 3000 cd/m2 (Typ.) [cd/m2 ] |
| Optical Response Time | 16 (Typ.)(Tr+Td) ms |
| Nominal Input Voltage | 12V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [g] | 5.2 kgs |
| Interface Type | 51 pins LVDS (2 ch, 8-bit) |
| Support Color | 16.7M , 60% NTSC |
| Surface Treatment | Hard coating (3H), |
| Power consumption | 138W |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | -20 ~70 °C |
| Storage (Non-Operating) | -20 ~ 70 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
