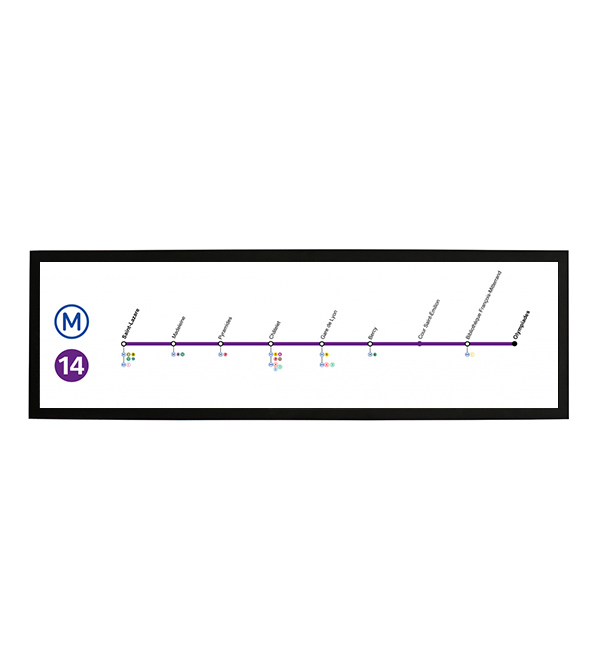

Passenger information display offer the passenger a full-service digital signage platform, we can produce and supply different sizes passenger information screen to meet you different request, such as concourse display, metro platform display, train information display.

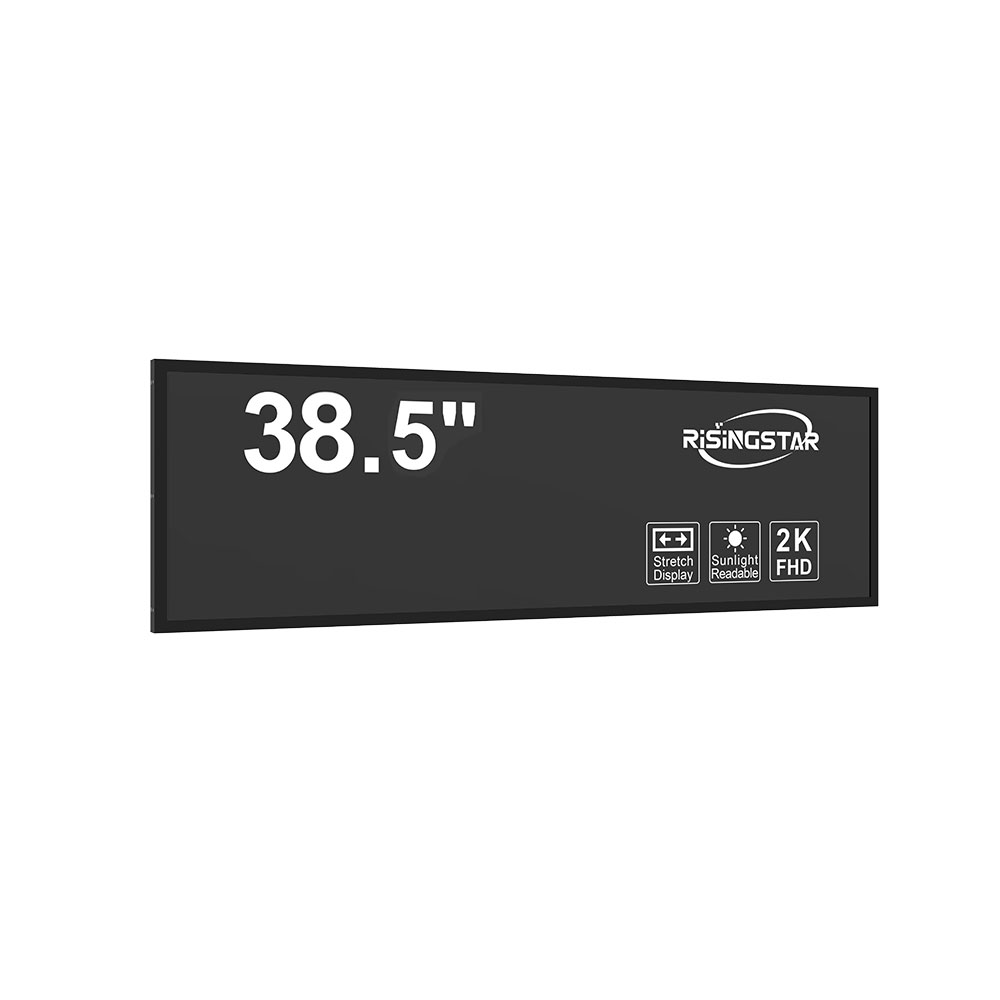

RS385DUJ-NE15 is RisingLCD 38.5 inch high brightness stretch LCD panel, 1920*540 FHD resolution, 1500 nits high brightness, 1200:1 contrast ratio, anti-glare surface treatment, LVDS interface type, and these panel is ideal to used outside for passenger information display, for exhibiting stop names, transport timetables, traffic message, announcements and other important notices to passenger.
38.5 inch high brightness stretch LCD panel main features:
1. 1920x540 Resolution, 32:9 aspect ratio, ultra wide panel
2. 1500 nits high brightness brightness
3. 1200:1 contrast ratio
4. Auto light sensor, lower power consumption
5. High quality panel with 89/89/89/89 viewing angle.
6. Ultra thin and light-weight design
High brightness stretch LCD panel Product technology
1. Our high brightness passenger information displays are equipped with original industrial-grade open cell from SAMSUNG, LG, AUO, LNNOLUX, BOE, TCL CSOT, etc., and our own special designed advanced LED backlight will make the brightness more uniform, delicate colors, and vivid images.
2. Adopt aluminum alloy or sheet metal rim shell, surface anodization treatment or powder spraying treatment, cold-rolled steel plate back shell, active heat dissipation
3. Adopt military-grade built-in or external power supply, embedded design, high integration, high performance, high stability and high scalability;
Ultra wide High brightness panel
RS385DUJ-NE15 with ultra wide screen, 32:9 aspect ratio, are best options for passenger information display, 38.5 inch wide size ensures that the screen remains visible easily, and making it easy for passengers to read important information and messages in the bus station, railway station and airport.
Auto brightness control and good Visibility
1500 nits high brightness LCD panel clearly conveys and displays content and captures the passenger's attention, different lighting conditions require different levels of brightness, the light sensor measures the ambient light in the area and automatically adjusts the image light
accordingly to provide the best experience for the viewer, and also can save the energy cost, reduce the heat and extends the life of the LCD panel.
Ultra thin, light-weight design
With thin body design only around 17.6mm, high resolution, fast response and vivid color, the display is a light-weight, high brightness are ideal for outdoor device for passenger information display.
Passenger information display offer the passenger a full-service digital signage platform, we can produce and supply different sizes passenger information screen to meet you different request, such as concourse display, metro platform display, train information display.
| Screen Diagonal | 38.5 inch |
| Brand | Risingstar |
| Model No | RS385DUJ-NE15 |
| Active Area | 927.936(W)×260.982(H) mm |
| Resolution | 1920(RGB)× 540, |
| Physical Size | 974.4W)×305.4(H)×17.6(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 1200:1 |
| White Luminance ( Center ) | 1500 cd/m2 (Typ.) [cd/m2 ] |
| Optical Response Time | 6 (Typ.)(G to G) |
| Nominal Input Voltage | 12V (Typ.) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10 |
| Weight [kg] | 750g (Typ./Max.) |
| Interface Type | LVDS (1 ch, 6/8-bit) , 51 pins |
| Support Color | 16.7M, 69% NTSC |
| Surface Treatment | Matte |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | 0 ~50 °C |
| Storage (Non-Operating) | -20 ~ 60 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
