With thin body design, 4k ultra high resolution, fast response and vivid color, the display is a light-weight, bright display designed for outdoor passenger information display.

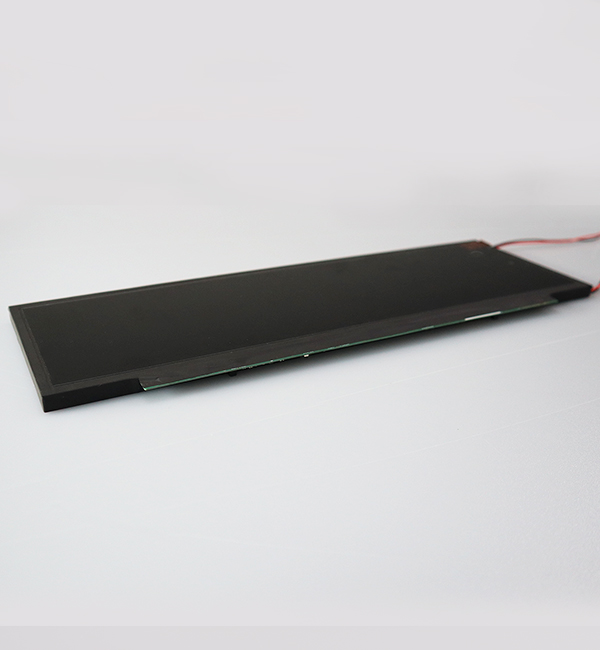

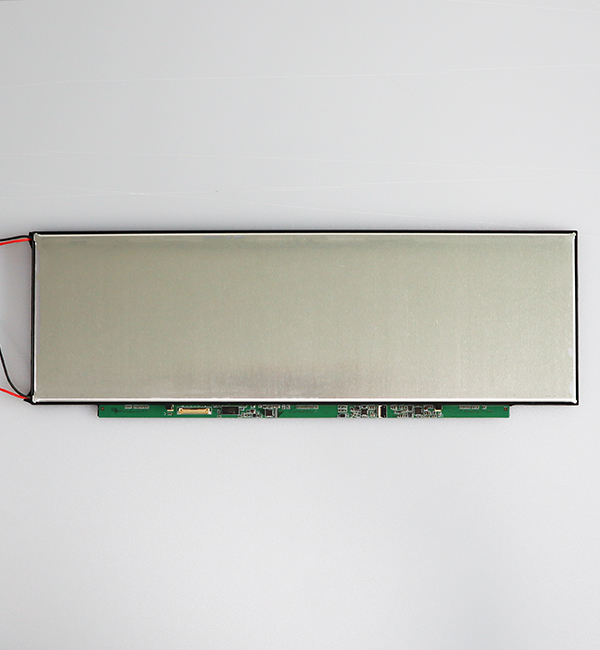

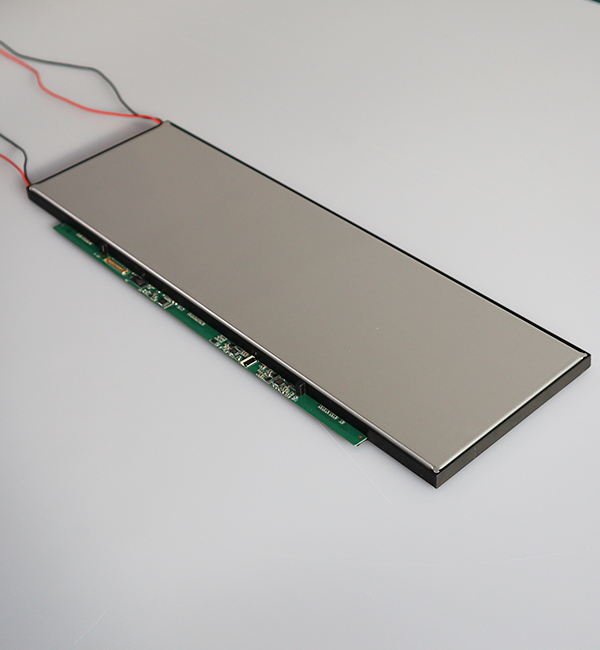

RS140XTM-GE12 is RisingLCD 14.1 Inch 3840×1100 Slim Stretched Bar LCD panel, with BOE original A grade native bar, 4K ADS Screen NV140XTM-N52 eDP 30 Pins Type-C 1200:1 contrast ratio. 1200 nits customized high brightness, is ideal for the outdoor passenger information display.
14.1 inch high brightness stretch LCD panel main features:
1. 3840*1100 4K ultra high resolution, ultra wide panel
2. 1200 nits high brightness brightness
3. 1200:1 contrast ratio
4. Auto light sensor, lower power consumption
5. Ultra thin and light-weight design
14.1 inch stretch LCD panel Product technology
1. Our high brightness passenger information displays are equipped with original industrial-grade open cell from SAMSUNG, LG, AUO, LNNOLUX, BOE, TCL CSOT, etc., and our own special designed advanced LED backlight will make the brightness more uniform, delicate colors, and vivid images.
2. Adopt aluminum alloy or sheet metal rim shell, surface anodization treatment or powder spraying treatment, cold-rolled steel plate back shell, active heat dissipation
3. 4k resolutin and high Brightness:With a 1200cd/m² brightness, the display is easy to read in various lighting conditions. Versatile Inputs:Supports both Type-C and mini HDMI inputs, enabling versatile connectivity for different devices.
4. Ultra thin, light-weight design
With thin body design only around 8.7mm, high resolution, fast response and vivid color, the display is a light-weight, high brightness are ideal for outdoor device for passenger information display.
| Screen Diagonal | 14.1 inch |
| Brand | Risingstar |
| Model No | RS140XTM-GE12 |
| Active Area | 344.218(W)×98.604(H) mm |
| Resolution | 3840(RGB)×1100, 283PPI |
| Physical Size | 360(W)×122.95(H)×8.7(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 1200:1 |
| White Luminance ( Center ) | 1200 cd/m2 (Typ.) [cd/m2 ] |
| Optical Response Time | 6 (Typ.)(G to G) |
| Nominal Input Voltage | 12V (Typ.) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Weight [kg] | 550g (Typ./Max.) |
| Interface Type | eDP (2 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 30 pins |
| Support Color | 16.7M, 72% NTSC |
| Surface Treatment | Matte |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | 0 ~60 °C |
| Storage (Non-Operating) | -20 ~ 65 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
