RS438ZK-ND20 is a 43.8-inch high brightness stretched TFT LCD panel from Risingstar, use the own design backlight structure allowed the brightness reach 2000-nits, which is far higher than the general LCD panels and can be used by other manufacturers such like info kiosk maker, indoor digital signage maker, metro/train cabinet monitor and etc.
Risingstar LCD panels always has far higher brigthness than most of our competitors, for the specific 43.8-inches bar type we can reached 3000 nits even much higher, more information please searching on our website: www.risinglcd.com
Top grade Open-cells: Risingstar has the ability to make our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high quality displays for each of our customers.

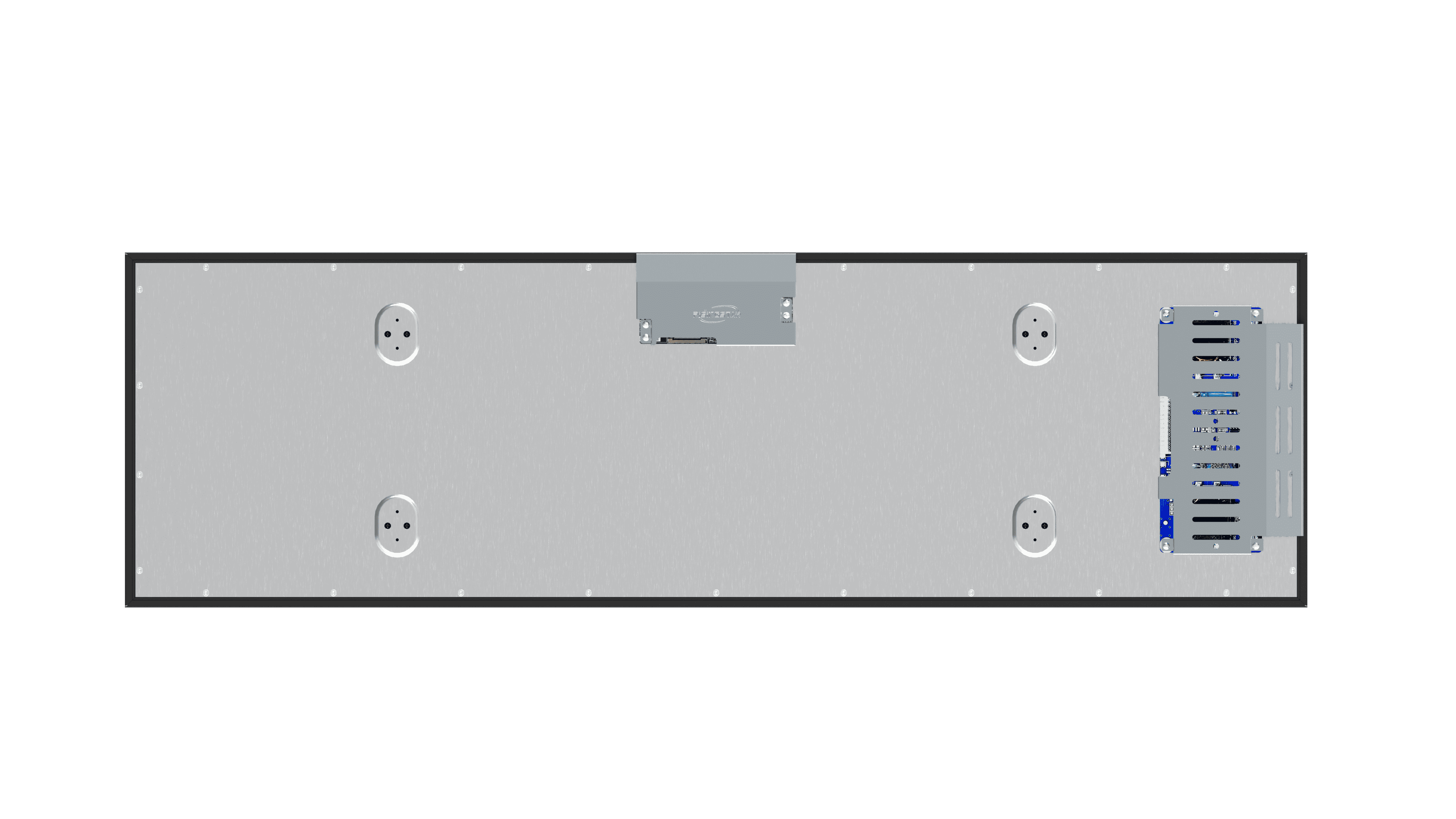

Full aluminum customize housing: All the LCD panel from Risingstar are using our own design housing with strength structure to protect the inner parts, it also means the screw holes on the housing can be customized by the requirements.
Direct-LED backlight structure: Risingstar own design LED bubble is directly under the open-cells of this panel, which allowed the LCD panel reached maximum brightness, for the specific 32-inch panel, it can reached 3000-nits.
High Tni LCD panel: The basic Risingstar LCD panel can keep working from 0 to 50℃ environmental temperature, which is enough for most of our customers; we also offered industrial level LCD panels which could keep working from -20 to 60℃ environmental temperature; Some of the Risingstar panels able to afford 110℃ surface temperature for a while, more details and data please contact with us.
Ultra wide viewing angle: Most of the Risingstar LCD panels using IPS screen, which has extremely high viewing angle could reach 178° for both horizontal and vertical direction.
High brightness LCD panel:
49 inch 2000 nits high brightness TFT LCD panel
43 inch FHD high brightness TFT LCD panel
32 inch 1500 nits high brightness TFT LCD panel
| Screen Diagonal | 43.8 inch |
| Brand | Risingstar |
| Model No | RS438ZK-ND20 |
| Active Area | 1071（H）*301(V) |
| Resolution | 3840*1080 |
| Physical Size | 1122.38（H）*350.6(V)*50(D) |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 1200:1 |
| White Luminance ( Center ) | 2000 cd/m2 (Typ.) [cd/m2 ] |
| Optical Response Time | 8 (Typ.)(G to G) ms |
| Nominal Input Voltage | 12.0V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [kg] | 11kgs |
| Interface Type | LVDS (2 ch, 8-bit) , 51 pins |
| Support Color | 1.07B |
| Surface Treatment | Matte (Haze 3%) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | -20 ~ 60 °C |
| Storage (Non-Operating) | -20 ~ 60 °C |
