RisingStar high brightness IP65 LCD digital signages are designed with high brightness sunlight readable brightness, waterproof and dust-proof specificaiton, size from 21.5 inch to 86 inch, brightness from 500 nits to 5000nits, to meet you different request on different environment.

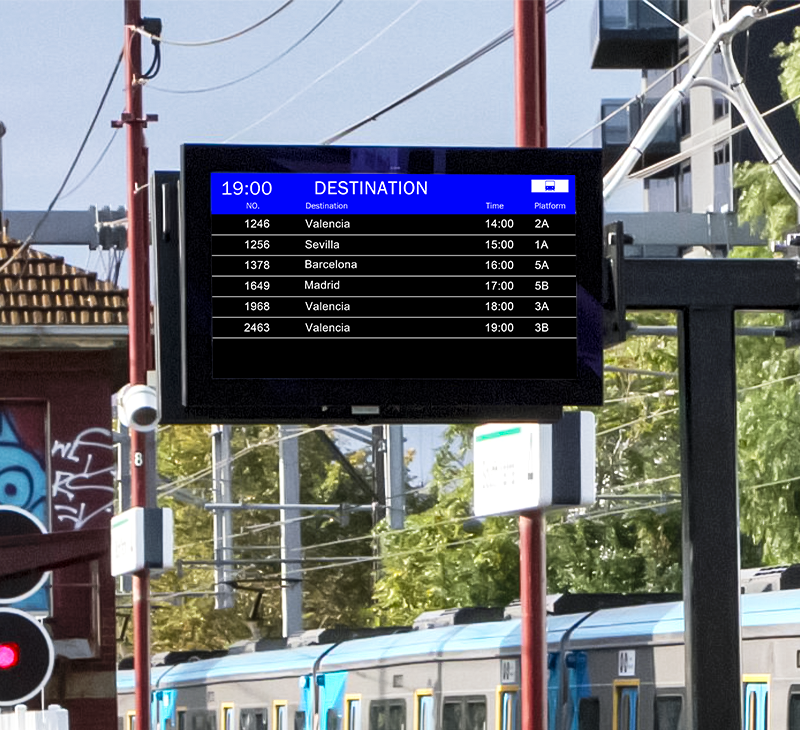

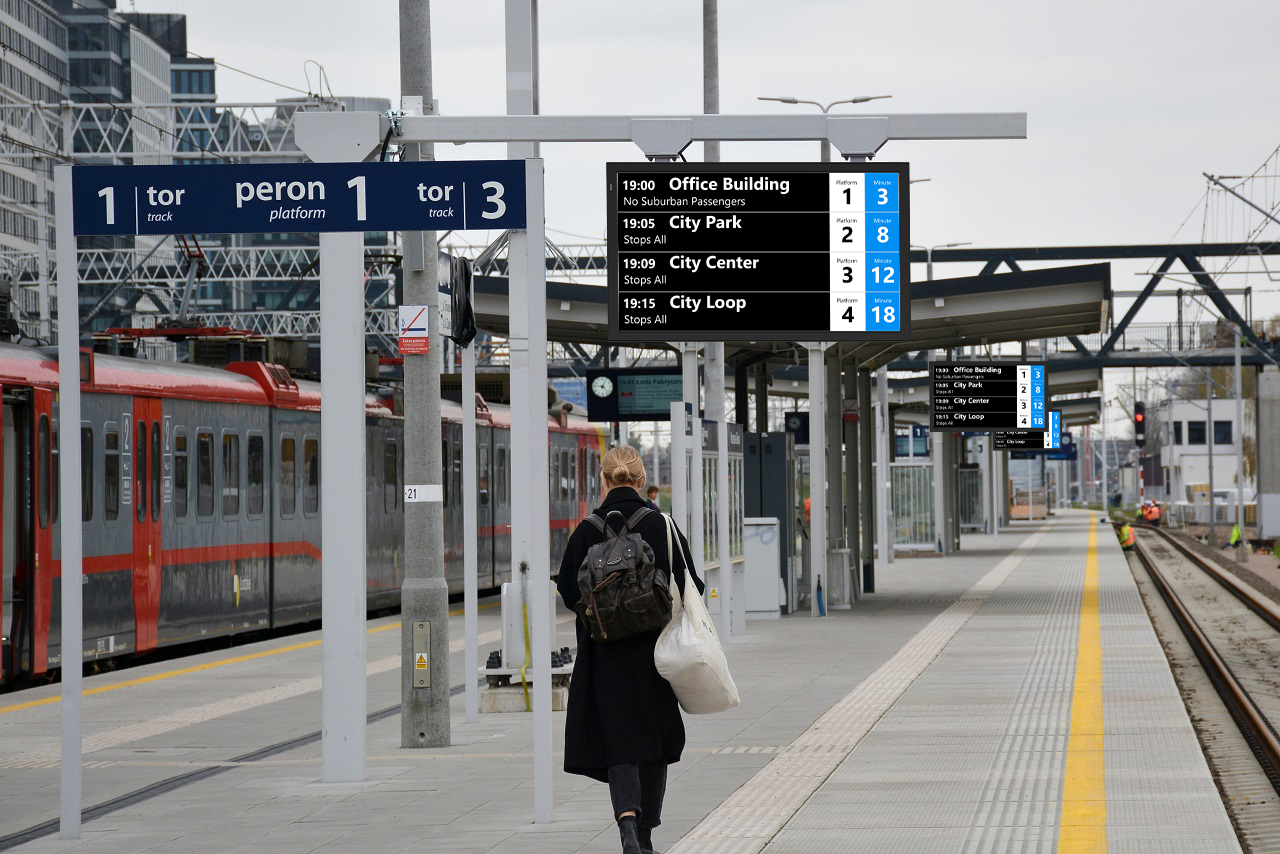

One of the uses of high brightness LCD signage is the public transit system, also as know as passenger information system, to showing the real time information to the passengers’ need about the train, metro, bus etc.
Unlike the Airport, always has at least 1 building with roof and walls, the general LCD signage can keep working with the indoor environment; there are too many “port” for bus and train, it is impossible to build a house for all of them, in fact the simply shelter are not for every station either, this depends on the cost and the local environment, sometimes it just a sign on the top of a pole; even for the stations has a shelter, usually it just a shed to make passengers not drenched by the rain.

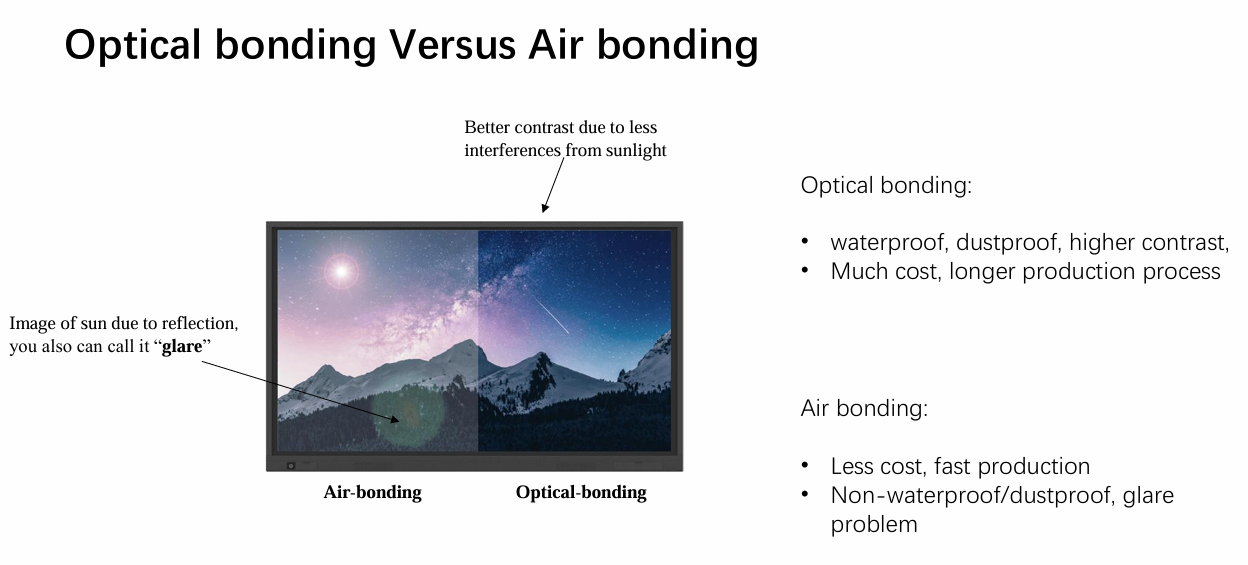

Outdoor high brightness waterproof is necessary for the LCD signage using under this circumstance, to showing the real-time information to the passengers they will keep working at least 18hrs per day, with probably raining, snowing and scorching sunlight. RisingStar using the optical bonding technology for this display, with OCR/OCA fill the gap between tempered glass and LCD screen, to improve the protection, IP66 waterproof, and better view experience.

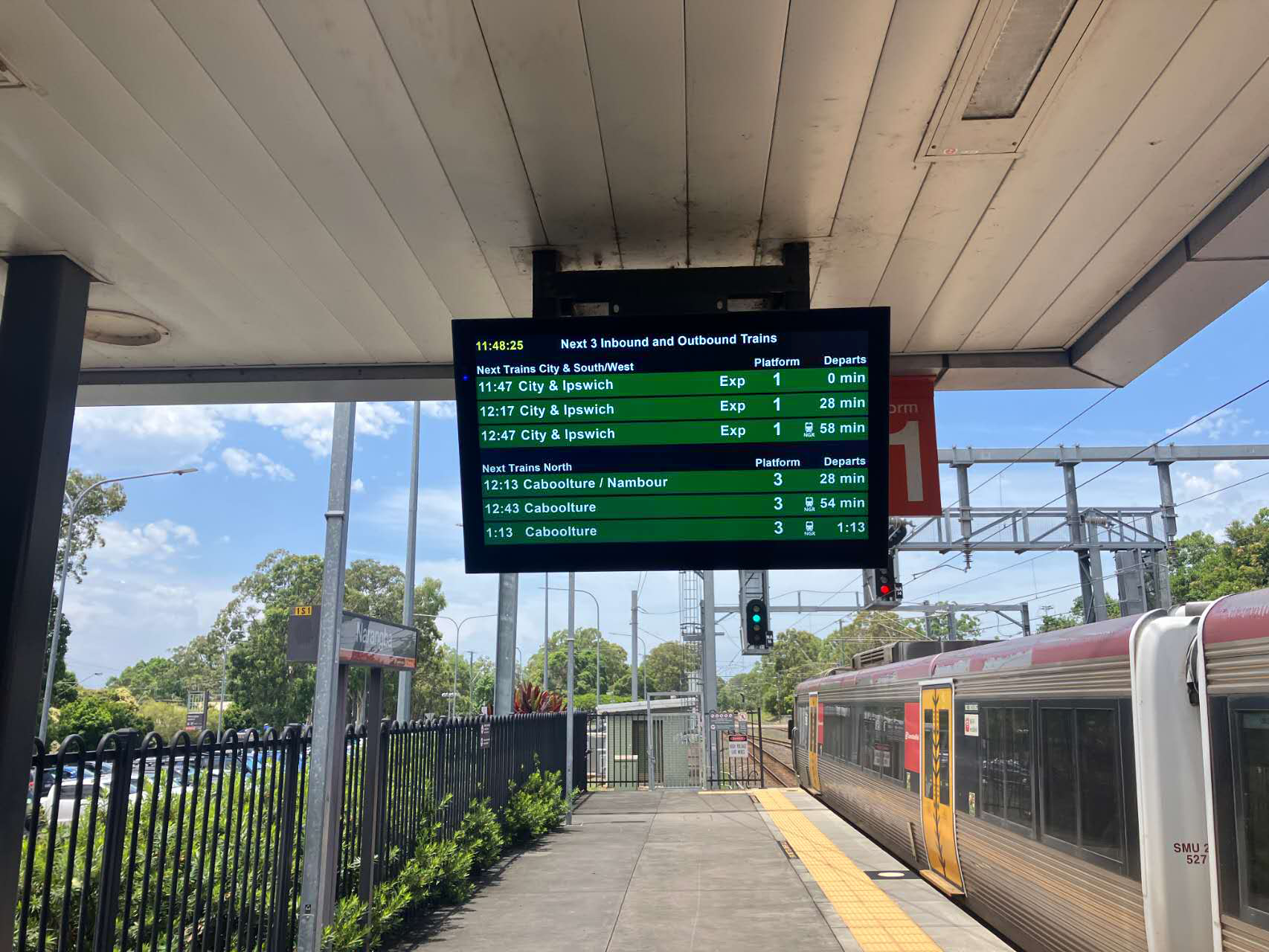

Currently, this diplay are widely using in Australia for the bus and train stop to showing the public transit information need by the passengers.
Due to all those reasons, RisingStar chose the Hi-tni wide temperature LCD panel to make the LCD signage meet all those demands, For more information please contact with us via the website.
Display | Panel Size | 32 inch |
Display Area | 698.4*392.8mm | |
Brightness | 3000 nits sunlight readable | |
Resolution: | 1920*1080 | |
Aspect Ratio: | 16:9 | |
Response Time | 6/9 (Typ.)(Tr/Td) ms | |
View Angle | 89/89/89/89 (Min.)(CR≥10) | |
Backlight | (DLED) | |
Life Hour | 50000H | |
Control System | Smart Dimming | Support |
Intelligent Temperature Control | Support | |
Remote Control Function | Support | |
AV Inputs | Video | HDMI, VGA |
Electrical Parameters | Input Voltage | AC110V/220V,50/60HZ |
Maximum Power | 170W | |
Shell | Shell Material | Sheet Metal |
Product Size | 770.5*465.5*90.5 mm | |
Weight | 28.5kg | |
Protection Glass | Thickness | 4+0.76+4 mm tempered glass |
Accessories | Included | AC Power Cable, Remote Control, Wall Mount |
Operating Environment | Operating Environment | Outdoor |
Operating Ttemperature and Humidity | -20-70℃/5%-95%RH | |
Multimedia | Motherboard Type | Android/PC/HD Driver Board (optional) |
IO interface | HDMI/VGA/DVI |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
