RisingLCD directly supply a complete line of outdoor high brightness digital signage LCD display. This product line is designed to operate in any outdoor environment, even in a direct sunlight.
RisingLCD directly supply a complete line of outdoor high brightness digital signage LCD display. This product line is designed to operate in any outdoor environment, even in a direct sunlight. This series outdoor LCD displays have internal environmental control system that maintain the long lifetime of the sign system.

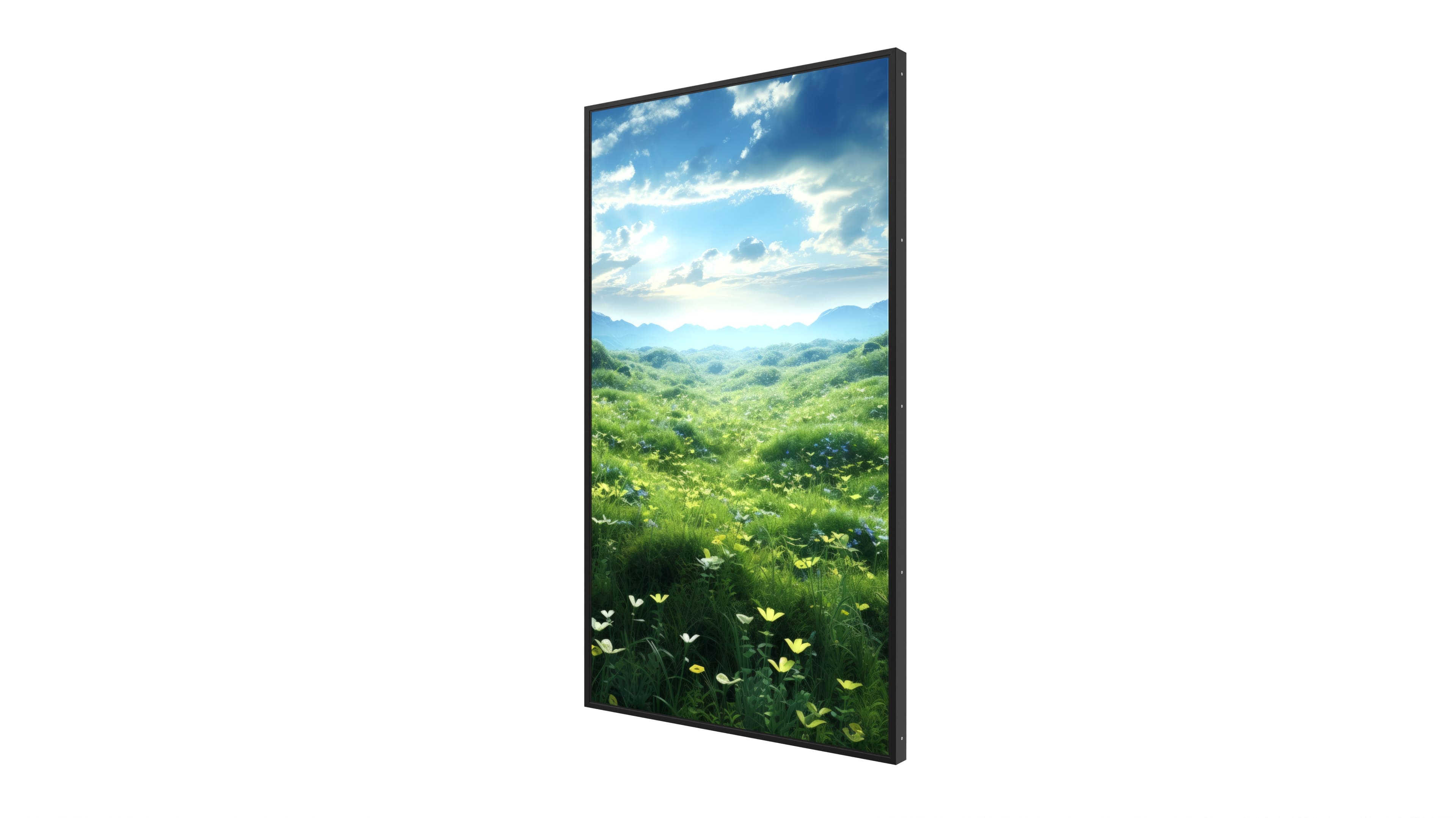

Outdoor digital signage display with ultra high brightness RS550ENT-N50 Main features
All-aluminum structure design,
Outstanding visibility high brightness
Smart brightness control
Blackening Defect Free
Conformal Coating
Manage content easily and efficiently

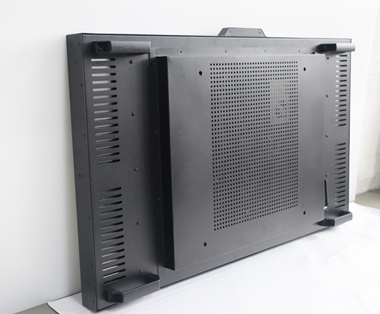

RisingLCD use aluminum alloy structure that is high thermal conductivity to maximize heat transfer, reduces the overall operation temperature, it is ideal to use in a higher environment, the heat dissipation is four times that of the ordinary metal structure.
Outstanding visibility high brightness
With a great brightness of 5000nits, this outdoor LCD display are well equipped to make the contents and images vividly stand out in any commercial location, you can experience superior pictures quality and optimized visibility.
Smart brightness control
The built-in auto-brightness sensor adjusts backlight brightness according to the surrounding brightness to save power energy and protect your eyes.
Blackening Defect Free
Most residential and commercial screens will blacken or result in isotropic failure when the LCD panel overheats. Our outdoor sunlight readable digital signage LCD display is equipped with a high-temperature LCD panel capable of withstanding temperatures up to 110˚C (230°F) without blackening – crucial for direct sunlight applications.
Conformal Coating

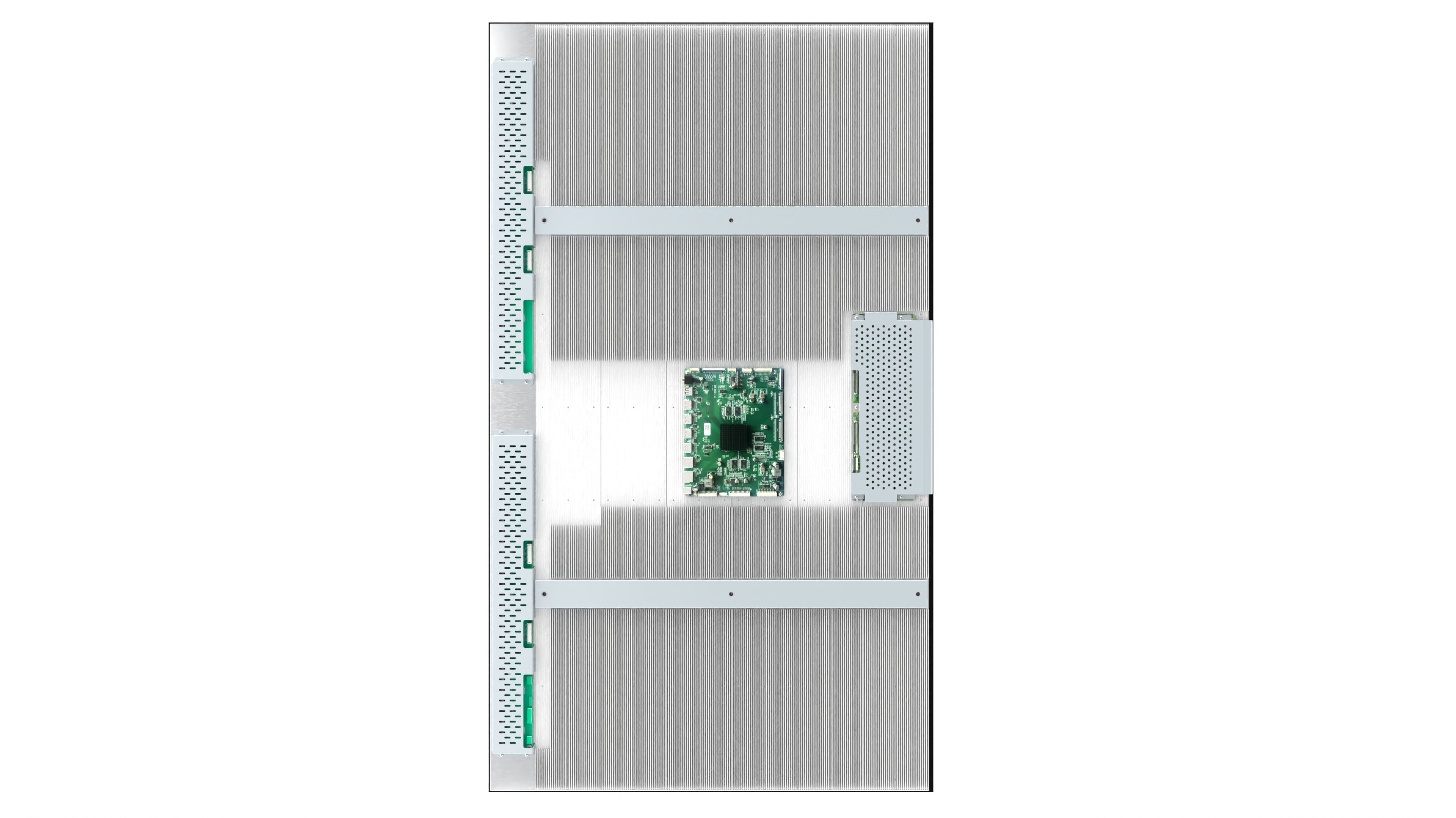

This outdoor LCD display can be often unavoidably exposed to dust and water during maintenance, conformal coating on every major circuit board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.
Plug and play
Plug and play, plug you USB stick that have loaded images and videos into our high brightness window facing display, just only wait for your content copy over, then it can play automically.
| Outdoor Waterproof High Brightness LCD Display | ||||||
| Panel | Panel Size | 32 inch | 43 inch | 49 inch | 55 inch | 65 inch |
| Panel Brand | LG/AUO/BOE | |||||
| Display Area(mm) | 698.4*392.8 | 941*529.4 | 1074*604 | 1209*680 | 1428*803 | |
| Brightness (nits) | 2000 nits | 4000 nits | 2000 nits | 2000 nits | 2000 nits | |
| Resolution | 1920*1080 | 1920*1080 | 1920*1080/ 3840*2160 | 1920*1080/ 3840*2160 | 1920*1080/ 3840*2160 | |
| Aspect Ratio | 16:9 | |||||
| Contrast Ratio | 1300/1 | |||||
| Response Time | 6/9 (Typ.)(Tr/Td) ms | |||||
| View Angle | 89/89/89/89 (Min.)(CR≥10) | |||||
| Backlight | （DLED) | |||||
| Life Hour | 50000H | |||||
| Control System | Smart Dimming | Support | ||||
| Intelligent Temperature Control | Support | |||||
| Remote Control Function | Support | |||||
| AV Input | Video | HDMI, VGA | ||||
| Electrical Parameters | Input Voltage | AC110V/220V, 50/60HZ | ||||
| Maximum Power | 80W | 280W | 180W | 240W | 300W | |
| Display | Shell Material | Sheet Metal | ||||
| Product Size(mm) | 798*491*108 | 1044*632*123.6 | 1170*700*120 | 1309*780*118.6 | 1524*899*120 | |
| Weight | 30kg | 50kg | 64kg | 67kg | 80kg | |
| Shell Anti-Corrosion Process | Use galvanized sheet + surface spray with special outdoor powder (outdoor anti-corrosion for more than 7 years). | |||||
| Protection Glass | Thickness | 5mm AR tempered glass | ||||
| Accessories | Included | AC Power Cable, Remote Control, Wall Mount | ||||
| Operating Environment | IP Rating | Outdoor IP65 | ||||
| Operating Temperature and Humidity | -20-50℃/5%-95%RH | |||||
| Multimedia | IO Interface | HDMI/VGA/DVI | ||||
| Option | AD Board | Android Motherboard, Computer Motherboard | ||||
| Network Transmission | Standalone Mode、WIFI、3G、4G | |||||
| Touch | 10 points touch, 20 points touch, Capacitive touch | |||||
Ask a quote for the latest price and one of our team members will respond as soon as possible.
