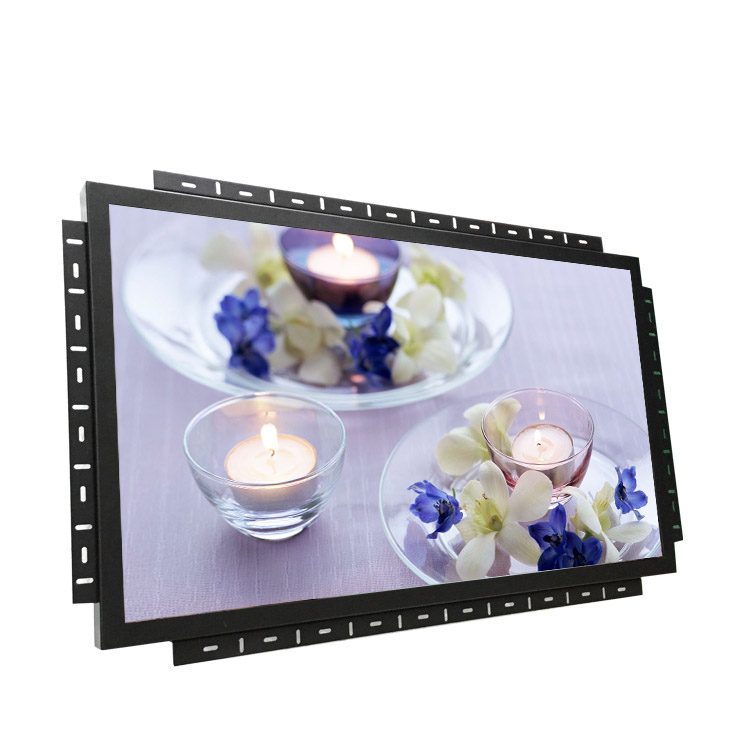

RisingLCD’s open-frame monitor series features an integrated bracket design that supports rear and VESA mounting methods. with its slim bezel, thin and ligh featurs, this series can be effectively integrated into any embedded application or replacing your existing defective LCD screen, no technical skills requirements.
RisingLCD’s open-frame monitor series features an integrated bracket design that supports rear and VESA mounting methods. with its slim bezel, thin and ligh featurs, this series can be effectively integrated into any embedded application or replacing your existing defective LCD screen, no technical skills requirements.
RS430ENT-N25 is a open-frame that is with equipped with BOE original panel, 1920*1080 high resolution, and 1200:1 contrast ratio and 16:9 aspect Ratio, and wide industrial operation temperature, -20 ~ 70 °C and with RisingLCD customized LED backlight, its brightnesss can achieve 2500nits, it is ideal for the broadcast monitor, medical monitor, industrial automation LCD monitor, surveillance system, ticket kiosk such outdoor application.
43 inch open frame monitor Key Features,
**Special designed, support rear and VESA mounting.
**43 inch versatile monitor size
**Customized outdoor high brightness: 2500nits, 3000nits, 3500nits, 4000nits.
**Wide industrial operating temperature range
**Built in Auto Brightness Sensor
**Built with WIFI and Ethernet(lan) internet connection
**Touch screen is optional
-20°C to 70°C* Wide Industrial operating temperature range
RisingLCD open frame monitor can operate in a stable and failure-free way for a long period within wide range of temperatures from -20°C to 70°C* which results in fewer constraints for outdoor installation. thanks to such option, it may be successfully applied, e.g in transportation and automotive industry, or testing machine.
Smart Brightness Sensor,
RS430ENT-N25 outdoor open frame monitor is built in Smart Brightness Sensor, that can adjust the brightness of the monitor automatically according to the surrounding lighting conditions. This feature considerably reduces power consumption and increases the monitor’s lifetime.
High Brightness
With a great brightness of 2500nits our outdoor open frame monitor can clearly deliver contents and information, and attract people attention, which is the ultimate display for outdoor visibility, and , and 178° Wide viewing angle is a perfect fit for shoppers, empolyees or visitors that will view the monitor from diverse angles while passing by.
Support Wifi and Bluetooth
Our open frame monitor supports Bluetooth to wirelessly connect to various device, such as keyboard, mouse, speaker and so on. It is r ecommended to building a hybrid environment, so that the people can have a online or offline meetings or classes with ease.
Touch optional,
Capacitive touch, IR touch is optional to fit many application such as inside the information kiosk with customized appearance in the shipping maill, airport station. We can customize it for you.
OEM and ODM are welcomed!
RisingLCD is a professional highlight LCD manufacturer from China, specializes in manufacturing and distributing all types of LCD module, LCD monitors, open frame monitor, outdoor and indoor digital signage and goods are exported all of the world, could customize the products based on the customer needs with a competitive price, RisingLCD is your best choice!
| Factory Model No: | RS430ENT-N25 |
| Panel Brand | BOE Display |
| Panel No.: | DV430FHB-R00 |
| Screen Size | 43" |
| Panel Technology | IPS, M+ (WRGB) |
| Active Area(mm) | 940.896×529.254 (H×V)mm |
| Panel Type. | a-Si TFT-LCD, CELL |
| Aspect Ratio | 16:09 |
| Native Resolution | 1920*1080 (FHD) 40PPI |
| Refresh Rate | 60Hz |
| Brightness | 2500nit (Typ, w/ Glass) |
| Contrast Ratio | 1200:1 (Typ) |
| Dynamic CR | 500,000:1 |
| Color gamut | NTSC 72% |
| Viewing Angle (H x V) | 178 x 178 |
| Support Color: | 16.7M , 72% NTSC |
| Response Time | 8 (Typ.) (G to G)ms |
| Surface Treatment (Haze) | Hard coating (2H), Reflection 1.0% (Max.) |
| Transmittance: | 6.0% (Typ.) (without Polarizer) |
| Life time | 50,000 Hrs (Typ) |
| Operation Hours (Hours/Day) | 24/7 |
| Operating Temperature: | -20 ~ 70 °C |
| Storage Temperature: | -20 ~ 70 °C |
| Portrait / Landscape | Yes / Yes |
| QWP (Quarter Wave Plate) | Yes (Apply on glass) |
| Jack interface input | HDMI (2), , RS232C IN (4pin phone jack), RJ45(LAN), IR IN, USB2.0 Type A (1) |
| Jack interface output | DP Out (Input DP/HDMI), Externel Speaker Out (L/R, 10W+10W), RS232C OUT |
| Net work support | LAN/WLAN/3G/4G/5G network. |
| Touch (Optional) | IR touch, Capacitive touch |
| Support | Brightness options and vesa mounting options |
| Installation: | Side mount bracket, Wall-mounted |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
