RS550MNX02A01-BK attracts attention with elegant design,around only 10.5mm bezel, featuring a slim bezel. These displays enhance the visual impact of the played content and the store's overall atmosphere.
RS550MNX02D01 is a 55 inch LCD display from Risingstar, which is the first and primary type of the 55-inch window facing display series, with the typical Risingstar style: High brightness and minimalism outer design, support multiple mounting way including floor standing or hanging, whatever landscape or portrait, also the AG and AR glass help the screen is visible under direct sunlight.
Risingstar monitors always has far higher brightness than most of our competitors, for the specific 55-inches we can reached 4500 nits even much higher, more information please searching on our website: www.risinglcd.com

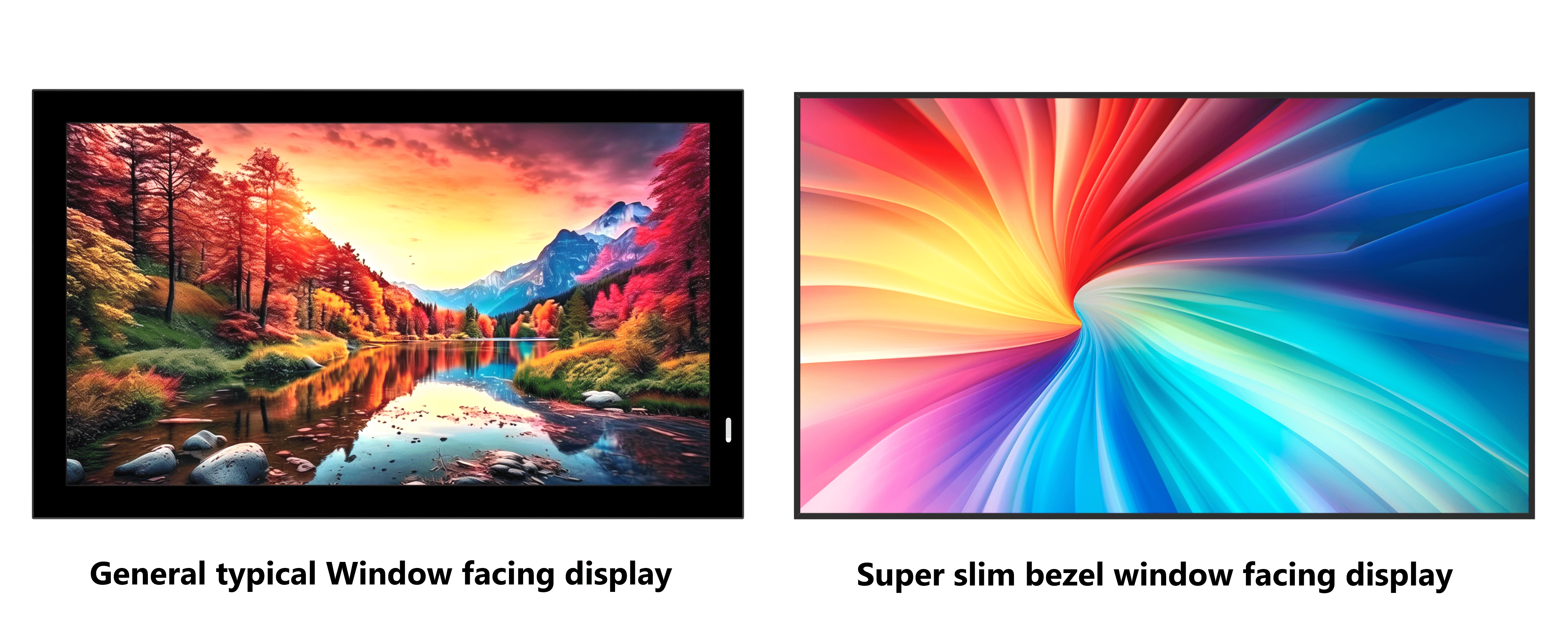

Out of the ordinary: This display has super slim bezel, this design can make it looks not like a monitor to increasing the immersion feeling of the people who are watching, imagine a display window is playing video but you can't see the blck bezel of the monitor.
Top grade LCD panel: Risingstar has ability making our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high quality displays for each of our customers.
Model number | RS215MNX01D01 | RS320MNX01D01 | RS430MNX01D01 | RS550MNX02D01 | RS650MNX01D01 |
Brightness (cd/m2) | 1000 | 1500 | 2000 | 4000 | 3000 |
Resolution (pixels) | 1920*1080 | 1920*1080 | 1920*1080 /3840*2160 | 1920*1080 /3840*2160 | 1920*1080 /3840*2160 |
Power (Watt) | 230 | 350 | 300 | ||
Operating temperature | 0 ~ 50℃ | 0 ~ 50℃ | 0 ~ 50℃ | 0 ~ 50℃ | 0 ~ 50℃ |

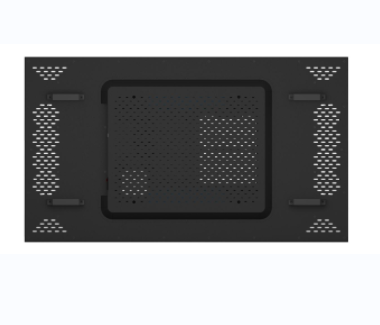

Rugged and unique housing: This display has unqiue outershell, it has over 100 holes on the housing to make the air pass through easier, the fans inside will pump them in/out to form a circulation, the heat will follow the circulation and the display can keep working under scorching sunlight.
High adaptability electronic: Risingstar has customers from all over the world, EU, US, Asia...using the right plug and adapt different voltage is the basic issue we should figure out for our customers, you do not need worry about this; the possibly OS for the display, we can offer both PC and Android to make you using easier; also the interfaces, HDMI/USB/VGA/DVI/DP/Type-C/RJ45 by your choice, our enegineer will help you found the most suitable motherboard.
Ultra wide viewing angle: Most of the Risingstar display is IPS screen, which has extremely high viewing angle could reach 178° for both horizontal and vertical direction.

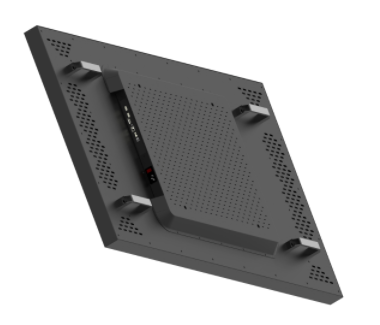

Multiple mounting type: for each display our engineer will reserved the mounting hole by your request, you can mounting it on the wall, ceiling, floor standing, hanging...whatever your choice, and our default mounting is VESA.
window facing display series:
RS320HNX02D05, outdoor no fans and A/C self dissipition monitor, save the consumption also muted design...
RS320MNX03D01, semi-outdoor and super slim design, the most highest integrated display we ever made...
RS430MNX01D01, classic design, the standard type of 43-inch window facing display...
| 55 inch window facing display 4000 nits with ultra slim bezel | |
| Screen Size | 55" |
| Display Area (mm) | 1209.6(H) x 680.4(V) |
| Brightness | 4000 cd/m |
| Resolution | 3840x2160 |
| Aspect Ratio | 16:09 |
| Contrast Ratio | 1300:1 |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Display Colors | 16.7M |
| Response Time (Typical) | 6 (Typ.)(Tr/Td) (ms) |
| Display Colors | 16.7M |
| OS | Android 7.1.2 |
| CPU | T972 |
| Memory | 2G/4G |
| Internal Memory | 16G/32G/64G |
| Input Interface | SD*1 EARPHONE OUT*1, LAN*1 USB*2 HDMI IN*1 AC IN*1 |
| OSD Key | IR Remote Control |
| Input Power | AC 200-240v |
| Power Consumption | 350W |
| Radiator System | Automatic heat dissipation |
| Dimensions (mm) | 1235 x 705.8 x 80.5mm |
| Mounting | 400x400mm Screws metric M8 |
| Weight (Net) | 29kgs |
| Operating Temperature | -20 ˚ C ~ 60 ˚ C |
| Storage Temperature | -20 ˚ C ~ 70 ˚ C |
| The information described in this specification is preliminary and can be changed without prior notice. | |
RS550MNX02D01 is a 55 inch LCD display from Risingstar, which is the first and primary type of the 55-inch window facing display series, with the typical Risingstar style: High brightness and minimalism outer design, support multiple mounting way including floor standing or hanging, whatever landscape or portrait, also the AG and AR glass help the screen is visible under direct sunlight.
Risingstar monitors always has far higher brightness than most of our competitors, for the specific 55-inches we can reached 4500 nits even much higher, more information please searching on our website: www.risinglcd.com
Out of the ordinary: This display has super slim bezel, this design can make it looks not like a monitor to increasing the immersion feeling of the people who are watching, imagine a display window is playing video but you can't see the blck bezel of the monitor.
Top grade LCD panel: Risingstar has ability making our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high quality displays for each of our customers.
Model number | RS215MNX01D01 | RS320MNX01D01 | RS430MNX01D01 | RS550MNX02D01 | RS650MNX01D01 |
Brightness (cd/m2) | 1000 | 1500 | 2000 | 4000 | 3000 |
Resolution (pixels) | 1920*1080 | 1920*1080 | 1920*1080 /3840*2160 | 1920*1080 /3840*2160 | 1920*1080 /3840*2160 |
Power (Watt) | 230 | 350 | 300 | ||
Operating temperature | 0 ~ 50℃ | 0 ~ 50℃ | 0 ~ 50℃ | 0 ~ 50℃ | 0 ~ 50℃ |
Rugged and unique housing: This display has unqiue outershell, it has over 100 holes on the housing to make the air pass through easier, the fans inside will pump them in/out to form a circulation, the heat will follow the circulation and the display can keep working under scorching sunlight.
High adaptability electronic: Risingstar has customers from all over the world, EU, US, Asia...using the right plug and adapt different voltage is the basic issue we should figure out for our customers, you do not need worry about this; the possibly OS for the display, we can offer both PC and Android to make you using easier; also the interfaces, HDMI/USB/VGA/DVI/DP/Type-C/RJ45 by your choice, our enegineer will help you found the most suitable motherboard.
Ultra wide viewing angle: Most of the Risingstar display is IPS screen, which has extremely high viewing angle could reach 178° for both horizontal and vertical direction.
Multiple mounting type: for each display our engineer will reserved the mounting hole by your request, you can mounting it on the wall, ceiling, floor standing, hanging...whatever your choice, and our default mounting is VESA.
window facing display series:
RS320HNX02D05, outdoor no fans and A/C self dissipition monitor, save the consumption also muted design...
RS320MNX03D01, semi-outdoor and super slim design, the most highest integrated display we ever made...
RS430MNX01D01, classic design, the standard type of 43-inch window facing display...
