Brand:
LG/AUO/BOE
Model name:
RS650HNX02D05
Screen size:
65"
Screen type:
Window facing display
Resolution:
3840(RGB)×2160
Brightness (cd/m²):
2000
Reliable Global Supplier of Outdoor IP65 Waterproof LCD Digital Displays
Durable screens built for all weather, delivering sharp visibility in rain, dust, or sunlight. Trusted worldwide for smart retail, transit hubs, and EV charging stations.
RS650HNX02D05 is a 65 inch high brightness outdoor waterproof LCD monitor from Risingstar, it actually the "plus version" of the classic 65-inch window facing display RS650MNX01D01, keep high brightness but lower power consumption.
Customized Multi-Size Solutions for Every Need
Offering a full range of display sizes tailored to your space, our one-stop service ensures seamless integration—from outdoor charging stations to high-traffic public areas. Waterproof, weatherproof, and engineered for 24/7 reliability, we simplify your project while maximizing visibility and durability.
Size (inch) | 21.5 | 32 | 43 | 49 | 55 |
Model number | RS215MNX01D01 | RS320HNX02D05 | RS430HNX02D05 | RS490HNX02D05 | RS550MNX01D01 |
Brightness (cd/m2) | 1000 | 3000 | 2000 | 2000 | 3000 |
Resolution (pixels) | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 /3840*2160 | 1920*1080 /3840*2160 |
Power (Watt) | 80 | 160 | 180 | 240 | |
Operating temperature | 0 ~ 50℃ | -20 ~ 50 ℃ | -20 ~ 50 ℃ | 0 ~ 50℃ | 0 ~ 50℃ |
Out of the Ordinary: This series of displays has special housing crave to increasing the ability of head dissipition without any fans or A/C inside it, this design will decreasing the poewr consumption and the running cost.
Top grade LCD panel: Risingstar has ability making our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high quality displays for each of our customers.

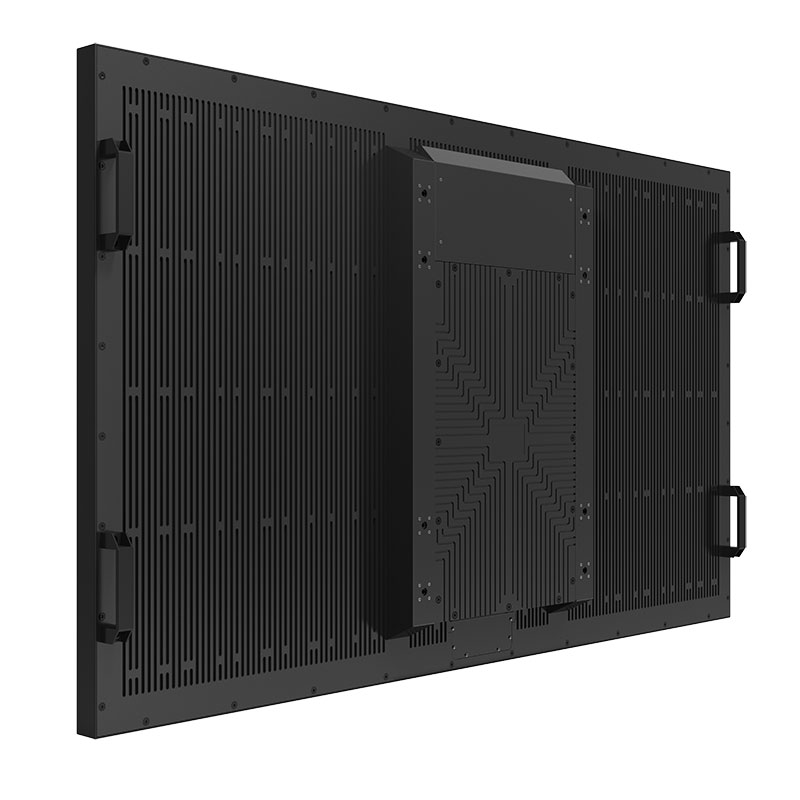

Rugged and unique housing: This display has unique outershell, you can see the crave on the display is as sort of thermal dissipition design by our own design, this allowed the display dissiption heat without fan or A/C, to save the power consumption; it can be fully muted if you need mount it in some quiet place such like library, this also the reason why this outdoor display sometimes will mounted indoor by our customers.
High adaptability electronic: Risingstar has customers from all over the world, EU, US, Asia...using the right plug and adapt different voltage is the basic issue we should figure out for our customers, you do not need worry about this; the possible OS for the display, we can offer both PC and Android to make you using easier; also the interfaces, HDMI/USB/VGA/DVI/DP/Type-C/RJ45 by your choice, our enegineer will help you found the most suitable motherboard.
Ultra wide viewing angle: Most of the Risingstar display is IPS screen, which has extremely high viewing angle could reach 178° for both horizontal and vertical direction.
Multiple mounting type: for each display our engineers will reserved the mounting hole by your request, you can mounting it on the wall, ceiling, floor standing, hanging...whatever your choice, and our default mounting is VESA.
65-inch window facing display series:
RS650LNX01P01, lower brightness but full waterproof indoor display, special product for low light environment such like Museum/Aquarium...
RS650MNX03D01, semi-outdoor and super slim design, the most highest integrated display we ever made...
RS650MNX01D01, classic design, the standard type of 43-inch window facing display
| Display | Panel Size | 65 inch |
| Panel Brand | LG/AUO/BOE | |
| Display Area | 1428.48*803.52mm | |
| Brightness | 1000 nits / 2000 nits / 3000 nits | |
| Resolution: | 1920*1080/3840*2160 | |
| Aspect Ratio: | 16:9 | |
| Constrast Ratio. | 1300/1 | |
| Response Time | 6/9 (Typ.)(Tr/Td) ms | |
| View Angle | 89/89/89/89 (Min.)(CR≥10) | |
| Backlight | （DLED) | |
| Life Hour | 50000H | |
| Control System | Smart Dimming | Support |
| Intelligent Temperature Control | Support | |
| Remote Control Function | Support | |
| AV Inputs | Video | HDMI, VGA |
| Electrical Parameters | Input Voltage | AC110V/220V,50/60HZ |
| Maximum Power | 300W | |
| Shell | Shell Material | Sheet Metal |
| Product Size | 1511*886*97.5mm | |
| Weight | 80kg | |
| Shell Anti-Corrosion Process | Use galvanized sheet + surface spray with special outdoor powder (outdoor anti-corrosion for more than 7 years). | |
| Protection Glass | Thickness | 5mm AR tempered glass |
| Accessories | Included | AC Power Cable, Remote Control, Wall Mount |
| Operating Environment | Operating Environment | Outdoor IP65 |
| Operating Ttemperature and Humidity | -20-50℃/5%-95%RH | |
| Multimedia | Motherboard Type | Android/PC/HD Driver Board (optional) |
| IO interface | HDMI/VGA/DVI | |
| Option | AD Board | Andorid Mother Board, Computer Mother Board |
| Network Transmission | Standalone Mode、WIFI、3G、4G | |
| Touch | 10 points touch, 20 points touch, Capacitive touch |
