RisingStar high brightness LCD panels series are ideal for digital signage solution for different industrial, such as outdoor totems, digital kiosk, information kiosk, passenger information display, window facing display, charging station display.
RisingStar high brightness LCD panels series are ideal for digital signage solution for different industrial, such as outdoor totems, digital kiosk, information kiosk, passenger information display, window facing display, charging station display.

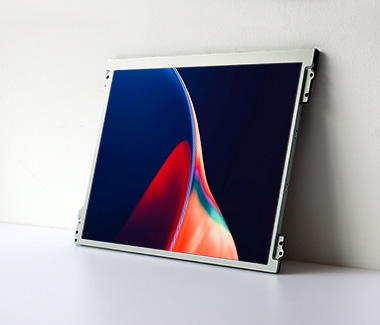

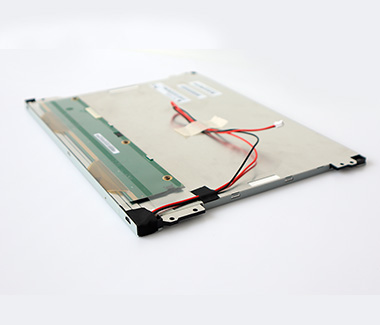

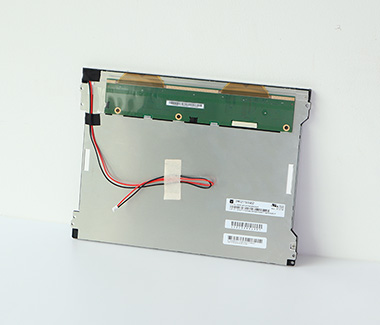

RS121TDSG-GE12 is a high brightness LCD panel, 12.1 inch, TIANMA original LCD panel, with Risingstar own designed backlight, brightness can achieve 1200 nits, wide industrial temperature from -20 ~70 °C , perfect for outdoor device, charging station display.
RS121TDSG-GE12 high brightness tft LCD panel Main Features:
True Industrial Grade LCD Panel
Long-Life Advanced LED Backlight, over 50,000 Hours Half-Life
1200 nits (cd/m2) sunlight readable Brightness
Wide Operational Temperature Range -20°C to 70°C (-22°F to 185°F)
Touch Screen Technologies Available (Optional)
True industrial Grade LCD IPS panel
Thanks to their special sunlight readable LCD panels technology, these displays can withstand surface temperatures up to 110 degree without suffering from any blackening defect. This is crucial for outward-facing window displays, which must contend with exposure to direct sunlight.
Sunlight readable LCD panel with 1200nits high brightness
With the feature of 1200nits high brightness, clear resolution and rich depth, the LCD display could let you see a vivid world, this display could make you see the real image even under the sun, it gives you a comfortable visual experience no matter what you are doing at any time.
| Screen Diagonal | 12.1 inch |
| Brand | Risingstar |
| Model No | RS121TDSG-GE12 |
| Active Area | 245.76(W)×184.32(H) mm |
| Resolution | 1024(RGB)×768, XGA 105PPI |
| Physical Size | 279(W)×209(H)×9.1(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 700:1 |
| White Luminance ( Center ) | 1200 cd/m2 (Typ.) [cd/m2 ] |
| Optical Response Time | 3/5 (Typ.)(Tr/Td) |
| Nominal Input Voltage | 3.3V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [g] | 483g(Typ.) |
| Interface Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Support Color | 262K/16.7M 55% NTSC |
| Surface Treatment | Antiglare, Hard coating (3H) |
| RoHS Compliance | RoHS Compliance |
| Working Temperature Range | -20 ~70 °C |
| Storage (Non-Operating) | -30 ~ 80 °C |
RS121TDSG-GE12 is a high brightness LCD panel, 12.1 inch, TIANMA original LCD panel, with Risingstar own designed backlight, brightness can achieve 1200 nits, wide industrial temperature from -20 ~70 °C , perfect for outdoor device, charging station display.
RS121TDSG-GE12 high brightness tft LCD panel Main Features:
True Industrial Grade LCD Panel
Long-Life Advanced LED Backlight, over 50,000 Hours Half-Life
1200 nits (cd/m2) sunlight readable Brightness
Wide Operational Temperature Range -20°C to 70°C (-22°F to 185°F)
Touch Screen Technologies Available (Optional)
True industrial Grade LCD IPS panel
Thanks to their special sunlight readable LCD panels technology, these displays can withstand surface temperatures up to 110 degree without suffering from any blackening defect. This is crucial for outward-facing window displays, which must contend with exposure to direct sunlight.
Sunlight readable LCD panel with 1200nits high brightness
With the feature of 1200nits high brightness, clear resolution and rich depth, the LCD display could let you see a vivid world, this display could make you see the real image even under the sun, it gives you a comfortable visual experience no matter what you are doing at any time.
