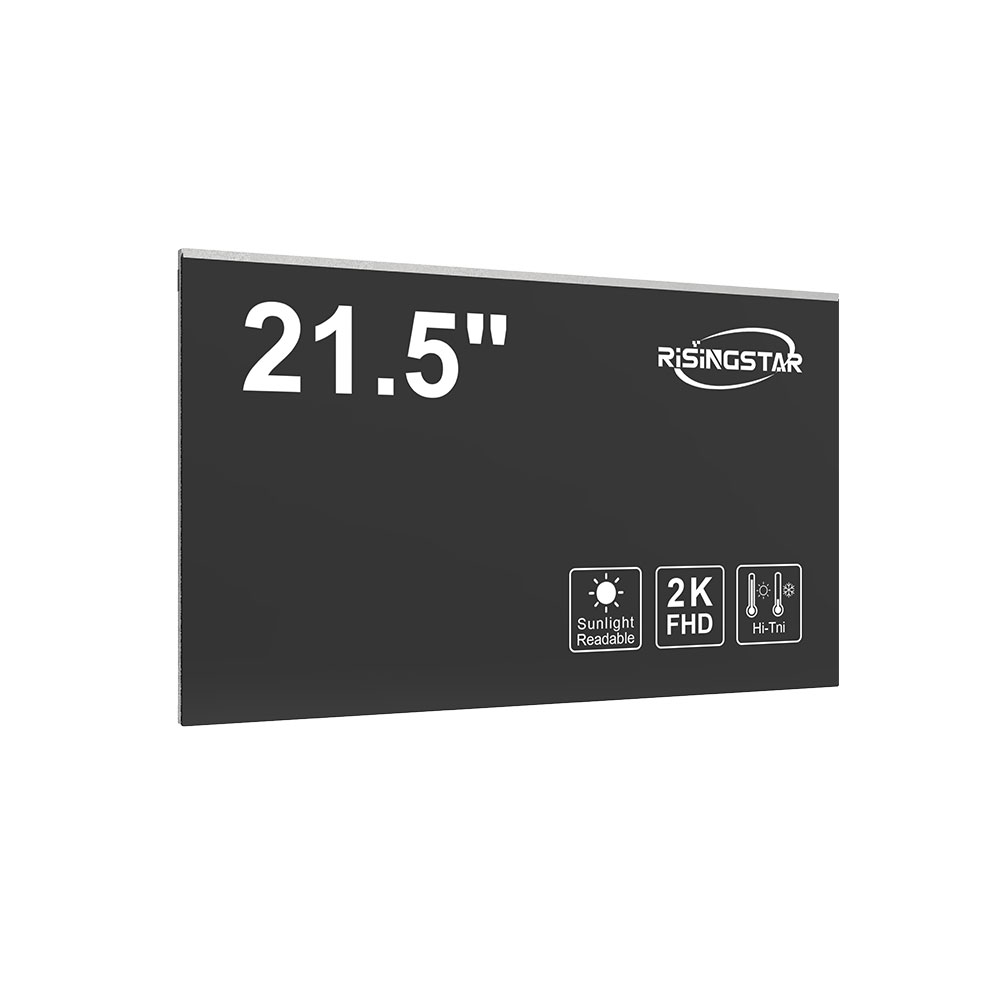

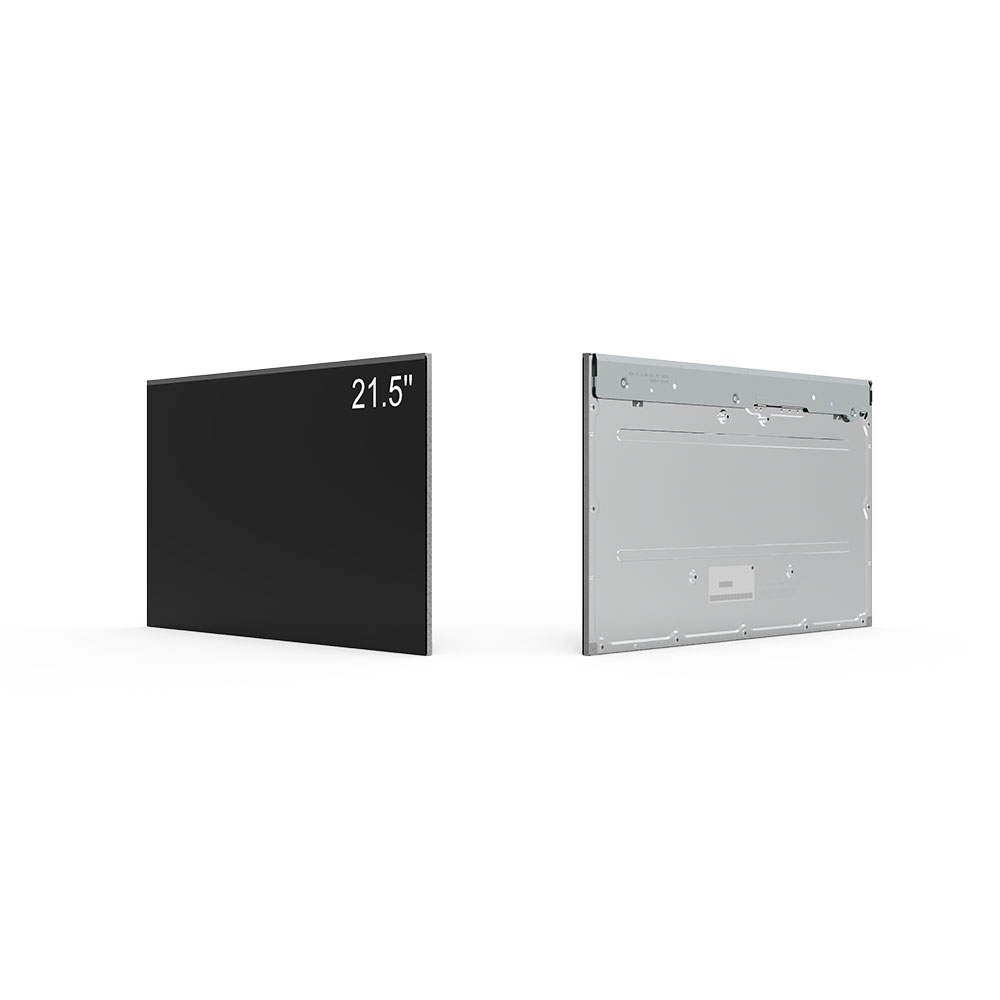

Features of 21.5" industrial high-brightness open-frame display

1. Use industrial LCD panel

2. LCD panel operating temperature -40 ~ 110℃

3. Direct LED backlight 4. Optional local dimming LED backlight

5. Optical materials are made of 3M high temperature resistant synthetic materials

6. Supports various brightness adjustment methods such as PWM, DC, potentiometer, etc.

7. Fan cooling method

Screen Size 21.5 "

Display Area (mm) 478.656(H) x 260.28(V)

Brightness 2500 cd/m 2

Resolution 1920x1080

Aspect Ratio 16 : 9

Contrast Ratio 3000 : 1

Pixel Pitch (mm) 0.2493(H) x 0.241(V)

Viewing Angle 89/89/89/89 (Min.)(CR≥10)

Color Saturation (NTSC) 73%

Display Colors 16.7M

Response Time (Typical) 20 (Typ.)(Tr/Td) (ms)

Input Interface USB TOUCH*1 EARPHONE OUT*1 AUDIO IN*1 VGA*1 DVI*1 HDMI*1 DC IN*1

OSD Key AUTO /MENU /LEFT/ RIGHT /EXIT/SELECT /POWER

Glass 3MM Tempered Glass OCR

Touch Type PCAP Input Power DC12V~10A

Power Consumption 70W

Radiator System Automatic heat dissipation

Dimensions (mm) 518.5 x 310.5 x 51.8

Mounting 100x100mm Screws metric M4

Weight (Net) TBD

Operating Temperature -20 ˚ C ~ 70 ˚ C

Storage Temperature -20 ˚ C ~ 80 ˚ C The information described in this specification is preliminary and can be changed without prior notice.
