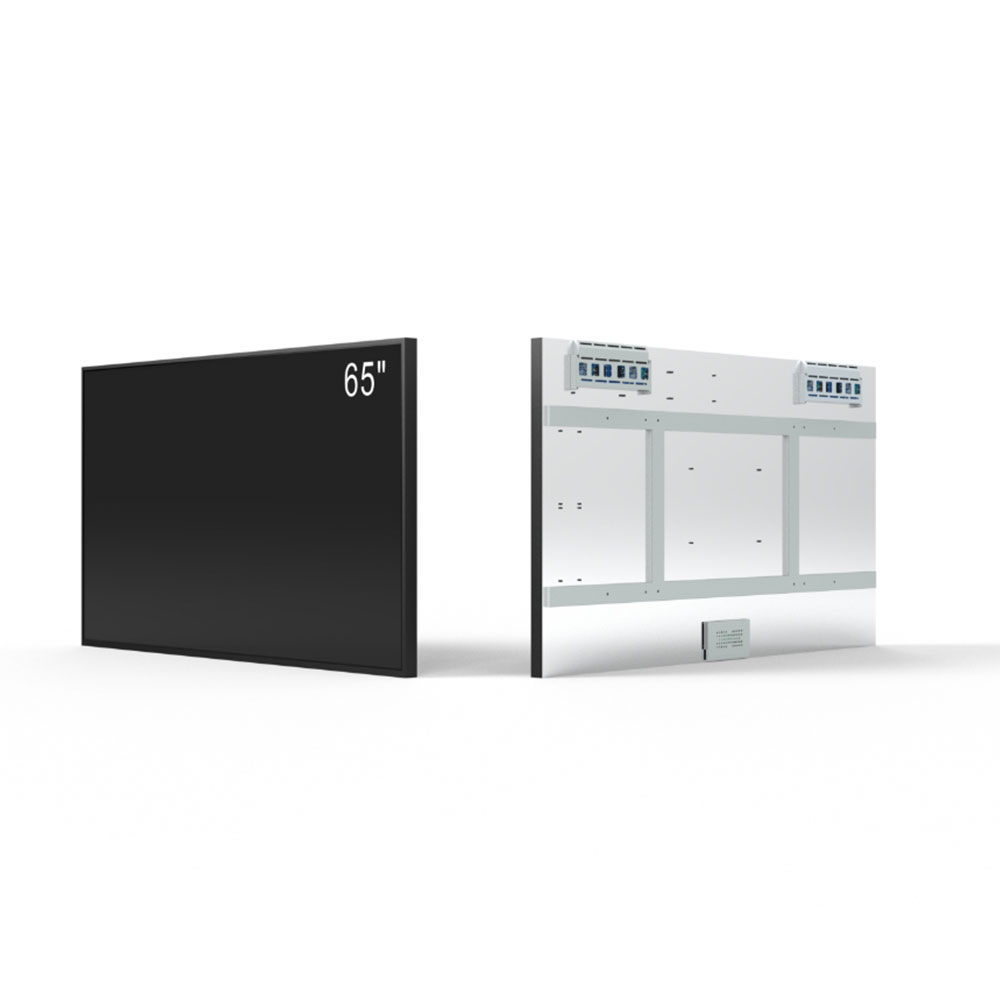

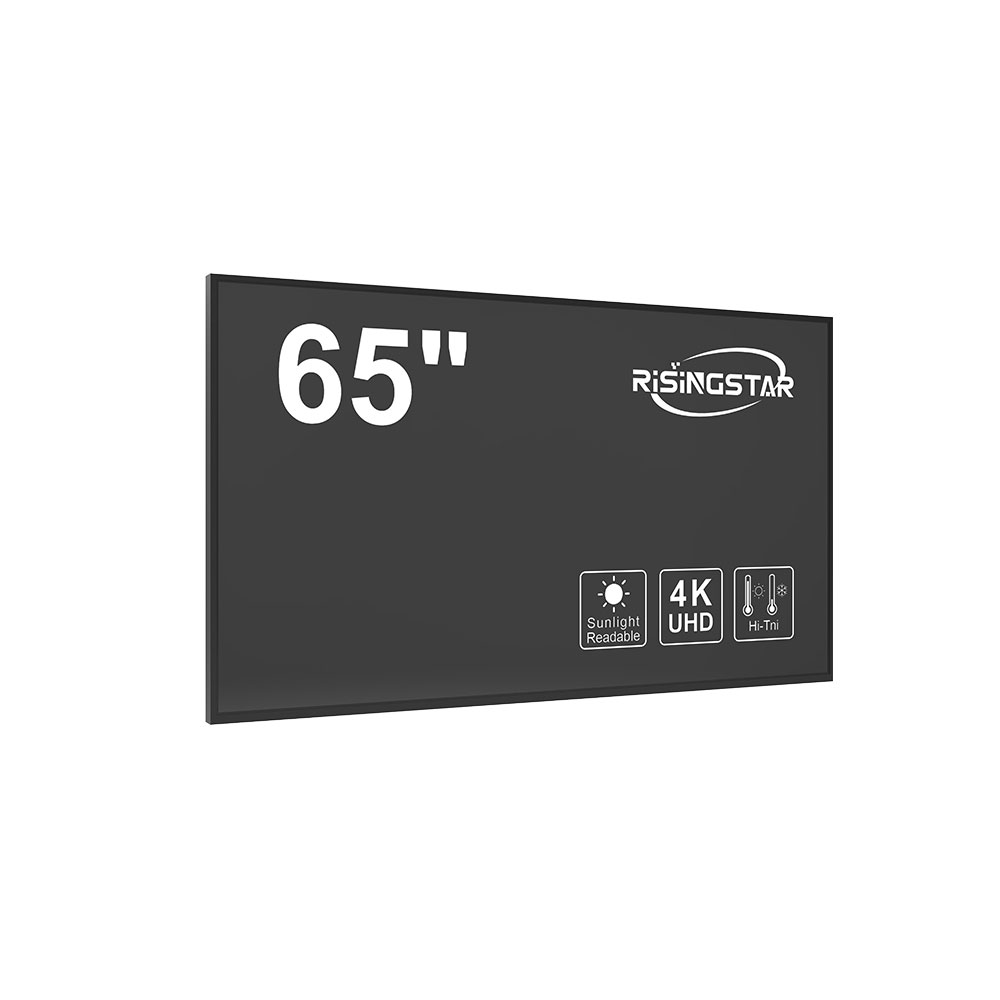

RisingLCD RS650EQC-ND30 is with an ultra HD 4k IPS 65inch LG original a grade lcd panel, ultra high resolution 3840(RGB)×2160 (UHD) 68PPI, and 16:9 aspect ration, the high bright LED backlight display provides over 3000nits of high brightness, and 1300:1 constrast ratio.
RisingLCD can offer the high brightness LCD screen from 10.1 inch to 110 inch, and brightness from 700 nits to 5000 nits, high brightness displays provide a vibrant and bright solution for window advertising, traffic information, they are perfect for the outdoor digital signage application in airport, bus/train/railway/ station and retail shop window.
This display is designed for low power consumption and effective heat dissipation, making it durable for long-term usage in production facilities. RS650EQC-ND30 high brightness LCD screens provide a sun and daylight readable solution for store window displays suitable for long time operation. High brightness touch screens are also available on request
RS650EQC-ND30 high brightness TFT LCD Main Features:
LG original LCD panel
High resolution: 3840*2160
Brightness up to 3000 nits
Auto brightness control
Wide industrial working temperature
Almuinum alloy structure easy heat dissipation
24/7 working time
With 3000 nits high brightness
High brightness displays provide a bright and vibrant solution for window advertising and brightly lit environments. The displays are manufactured using premium LCD panels and incorporate a slimline housing with options available up to 3,000 nits brightness.
Auto brightness control
Different external lighting condition requires different brightness leverls, an onboard light sensor was built-in our industrial hight brightness panel that measures the ambient light in the area and automatically adjust the image light accordkingly, offer a best experience to the viewer, and also can save the engery cost, reduce the heat and extends the life of the screen.
Almuinum alloy structure
We use almuinum alloy structure that is high thermal conductivity to maximize heat transfer, reduces the overall operation temperature, it is ideal to use in a higher environment, the heat dissipation is four times that of the ordinary metal structure.
Application:

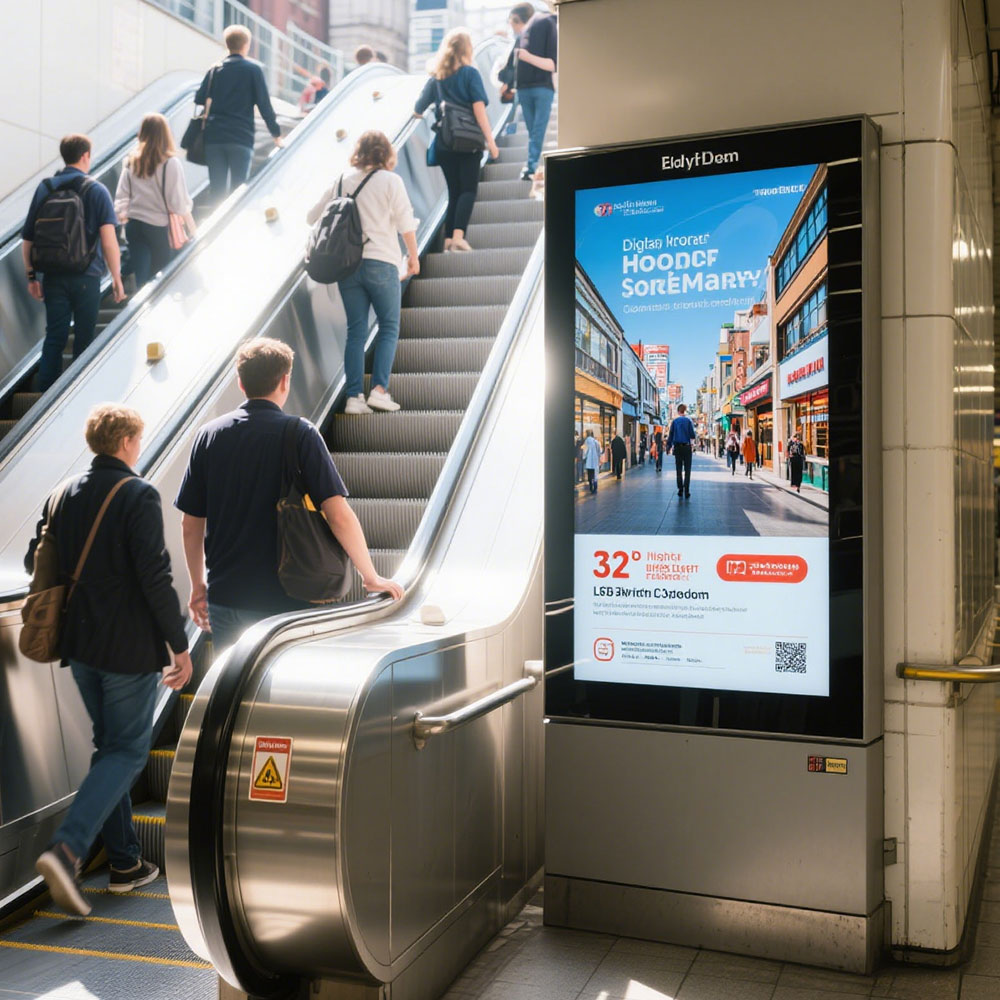

Outdoor digital signage, Industrial Public transporation, Large Shop Windows, Car Dealerships, Wedding Shops, Hotels, Tourism, entire retail and hospitality industry
| Screen Diagonal | 55 inch |
| Brand | Risingstar |
| Model No | RS650EQC-ND30 |
| Active Area | 1428.48(W)×803.52(H) mm |
| Resolution | 3840(RGB)×2160, UHD, 68PPI |
| Physical Size | 1461(W)×843.1(H)×58(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 1300:1 |
| White Luminance ( Center ) | 3000 nits |
| Optical Response Time | 8/10 (Typ.)(Tr/Td) ms |
| Nominal Input Voltage | 12V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [g] | 18g(Typ.) |
| Interface Type | EPI , 120 pins |
| Support Color | 1.07B |
| Surface Treatment | Hard coating (2H) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | 0 ~50 °C |
| Storage (Non-Operating) | -20 ~ 65 °C |
