RisingLCD manufactures widest variety of ultra-high brightness display for business and industry, size from 10.1 inch to 110 inch, and brightness level from 500 to 5500nits, meet your different requests.

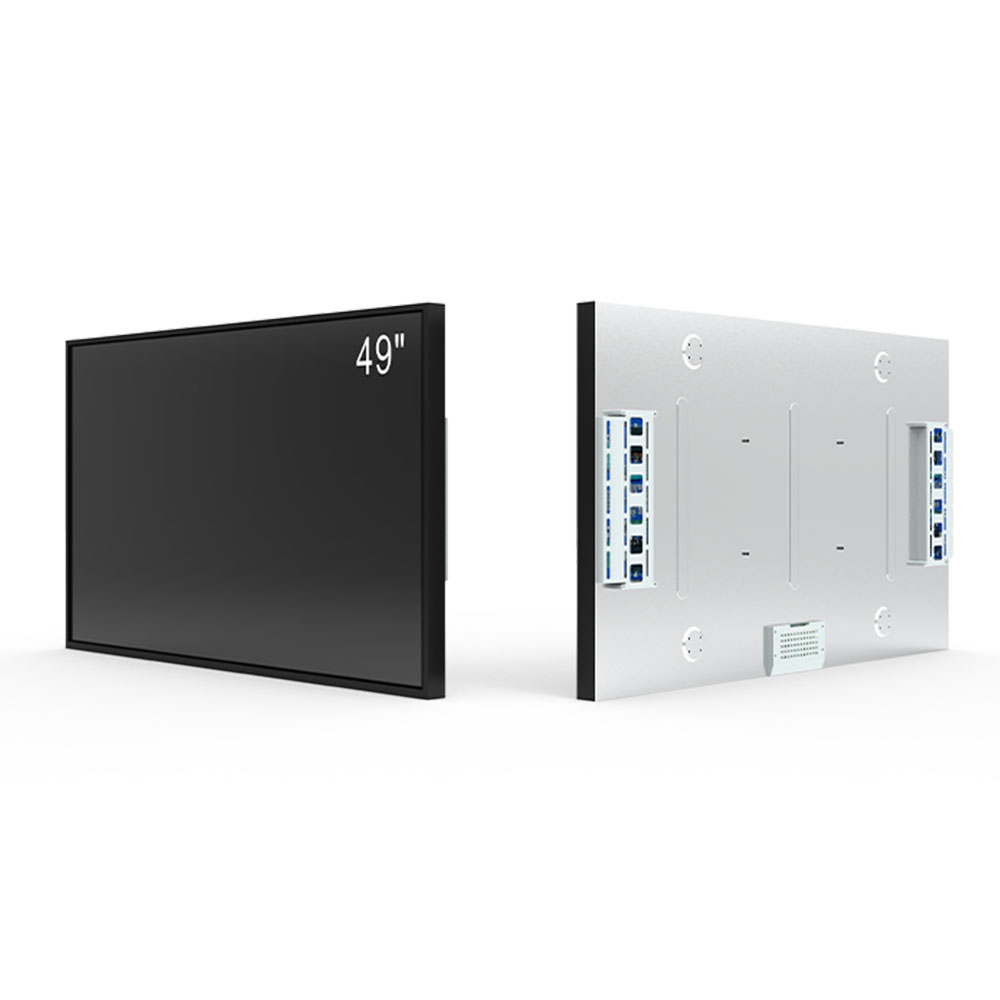

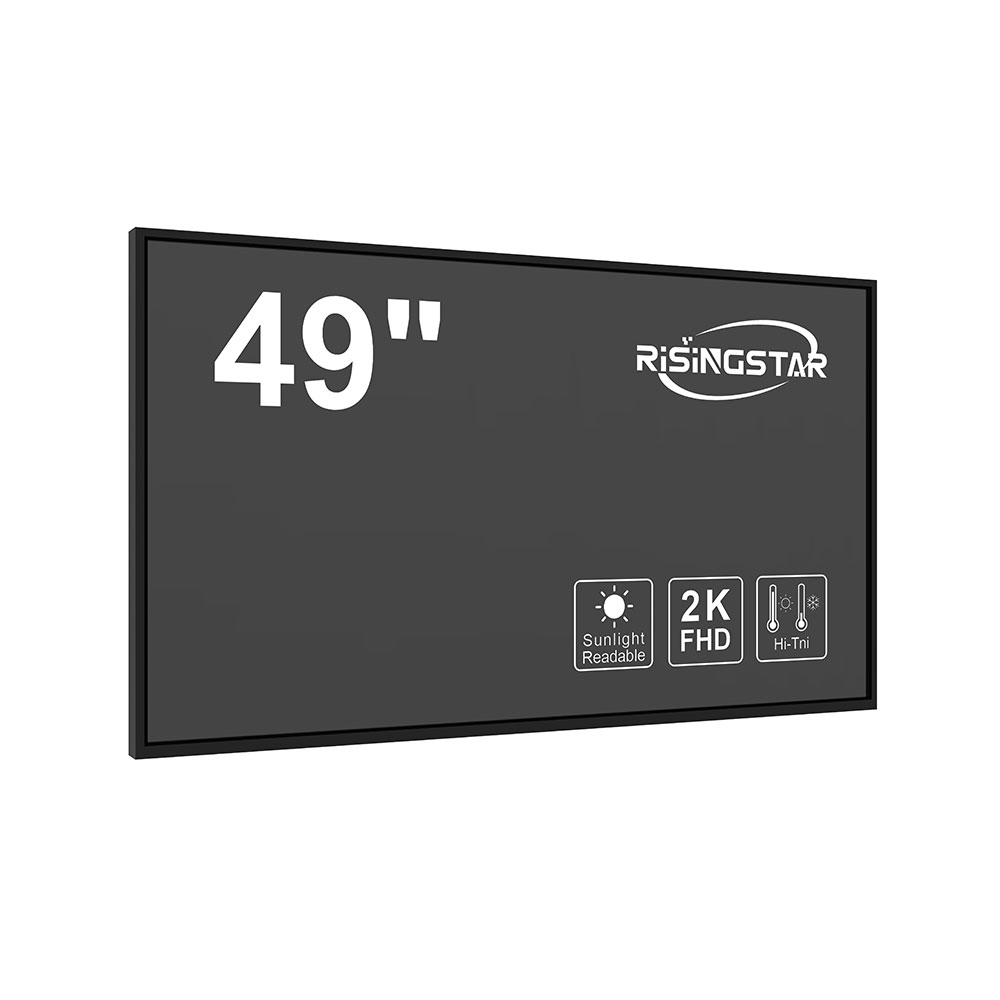

RS490EGY-NE08 is a 49 inch high brightness TFT LCD panel, with LG original a grade open cell, RisingLCD own designed edge backlight, 800 nits high brightness, lightweight, ideal for any embedded outdoor devices.
RS490EGY-NE08 main features:
Ultra high resolution 3840*2160
High brightness: 700nits,
Screen Type: LCM a-Si TFT-LCD
Display size: 49 inch (all sizes optional from 21.5 inch to 86 inch)
Wide Viewing Angle (H x V) 178 x 178
Constrast: 1300:1
Auto brightness control, manual brightness adjustment are all available.
Ultra thin thickness, around 17mm thickness.
Application: Advertising publish, retail store, shopping mall
All, bus station. Window facing display
| Screen Diagonal | 49 inch |
| Brand | Risingstar |
| Model No | RS490EGY-NE08 |
| Active Area | 1073.78(W)×604(H) mm |
| Resolution | 3840(3)×2160, UHD, 90PPI |
| Physical Size | 1094(H）*625.4(V)*17.7(D)mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 1100:1 |
| White Luminance ( Center ) | 800 cd/m2 (Typ.) [cd/m2 ] |
| Optical Response Time | 6 (Typ.)(G to G) ms |
| Nominal Input Voltage | 12.0V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [kg] | 7(Typ.) |
| Interface Type | V-by-One 8 lane , 51 pins |
| Support Color | 1.07B , 63% NTSC |
| Surface Treatment | Antiglare (Haze 1%),Hard coating (3H) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | 0 ~50 °C |
| Storage (Non-Operating) | -20 ~ 65 °C |
RS490EGY-NE08 is a 49 inch high brightness TFT LCD panel, with LG original a grade open cell, RisingLCD own designed edge backlight, 800 nits high brightness, lightweight, ideal for any embedded outdoor devices.
RS490EGY-NE08 main features:
Ultra high resolution 3840*2160
High brightness: 700nits,
Screen Type: LCM a-Si TFT-LCD
Display size: 49 inch (all sizes optional from 21.5 inch to 86 inch)
Wide Viewing Angle (H x V) 178 x 178
Constrast: 1300:1
Auto brightness control, manual brightness adjustment are all available.
Ultra thin thickness, around 17mm thickness.
Application: Advertising publish, retail store, shopping mall
All, bus station. Window facing display
