RisingLCD is the direct supplier for the high brightness LCD products, that includes the high brightness open frame LCD panel, sunlight readable tft LCD displays with OCA bonding protective glass, high brightness window facing displays, and outdoor waterproof tft LCD monitors.

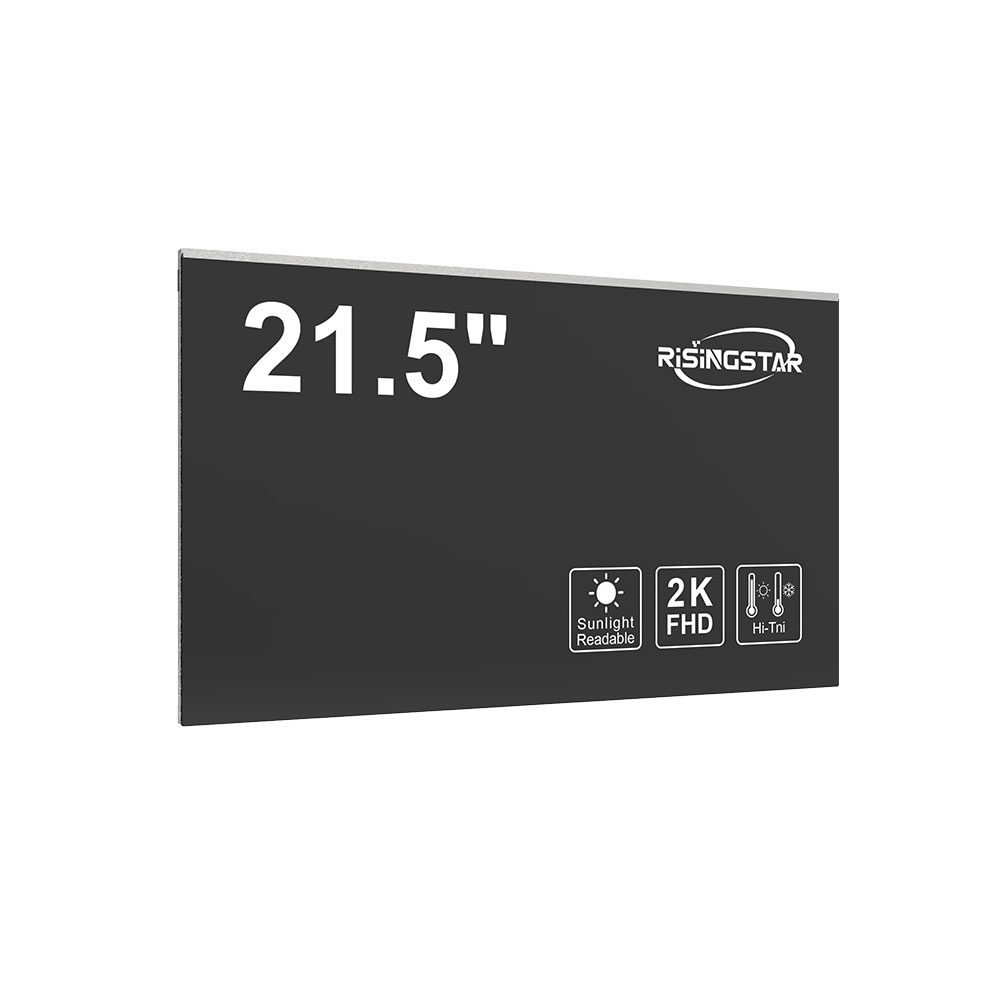

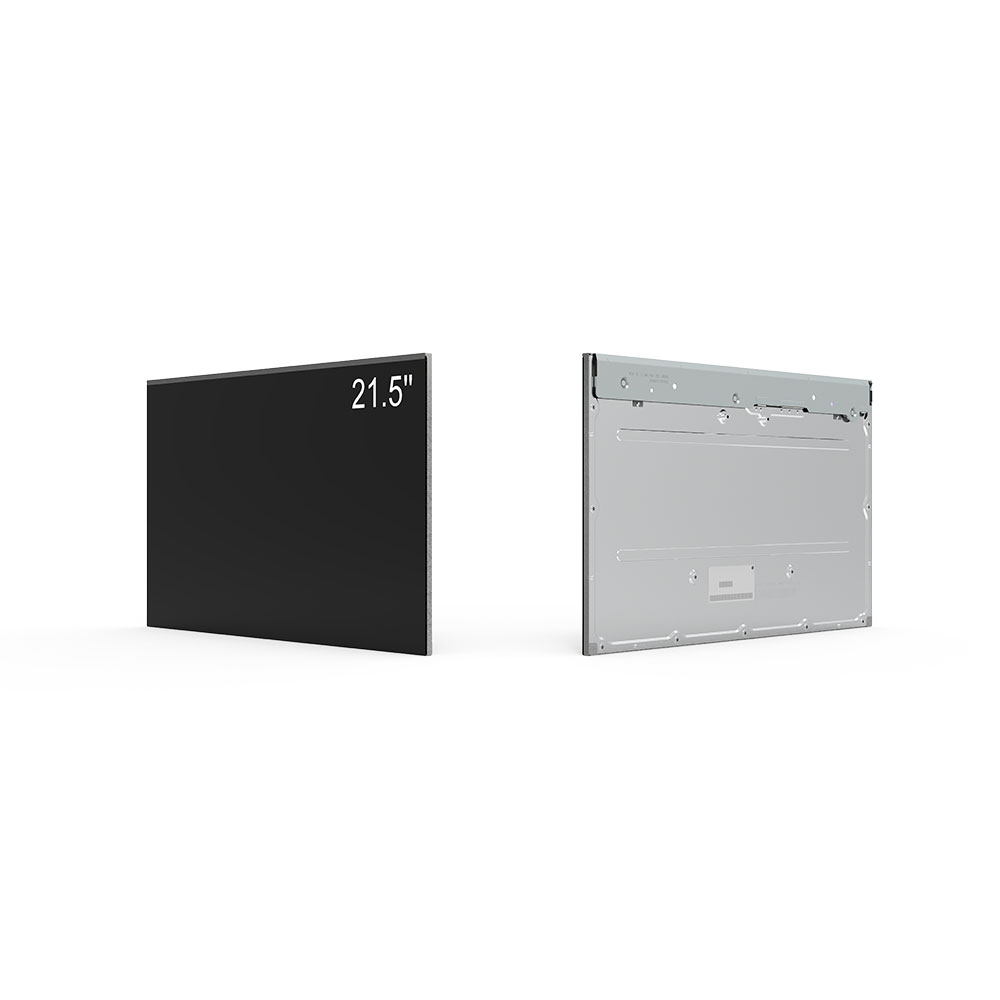

RS215HVN-NE10 is a 21.5-inch high brightness TFT LCD panel from Risingstar, use the own design backlight structure allowed the brightness reach 1500-nits, which is far higher than the general LCD panels and can be used by other manufacturers such like info kiosk maker, outdoor advertising player maker, outdoor tv maker, etc.
Risingstar LCD panels always has far higher brightness than most of our competitors, for the specific 21.5-inches we can reached 1000 nits even much higher, more information please searching on our website:
Size (inch) | 21.5 | 32 | 49 | 55 | 75 |
Model number | RS215HVN-NE10 | RS320ENT-ND20 | RS490ENT-ND20 | RS550ENT-ND25 | RS750ENT-ND40 |
Brightness (cd/m2) | 1000 | 2000 | 2000 | 2500 | 4000 |
Resolution (pixels) | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 3840*2160 |
Contrast ratio | 3000:1 | 1200:1 | 1200:1 | 1200:1 | 1200:1 |
Operating temperature | 0 ~ 50℃ | 0 ~ 50 ℃ | 0 ~50℃ | 0 ~ 50℃ | 0 ~ 50℃ |
Out of the ordinary: This panel has high contrast ratio up to 3000:1, almost 3 times larger than the general LCD panels (1100:1), this gives it excellent color performance than the general LCD panels, also means much detailed visualize experience.
Top grade Open-cells: Risingstar has ability making our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high quality displays for each of our customers.
Full aluminum customize housing: All the LCD panel from Risingstar are using our own design housing with strength structure to protect the inner parts, it also means the screw holes on the housing can be customized by the requirements.
Edge-LED backlight structure: Risingstar own design LED bubble is on the edge of the open-cells of this panel, the backlight directly under the opencell is replaced by light-guide-board, which allowed the LCD panel as thinner as possible; the maximum brightness for ELED is 1500-nits.
High Tni LCD panel: The basic Risingstar LCD panel can keep working from 0 to 50℃ environmental temperature, which is enough for most of our customers; we also offered industrial level LCD panels which could keep working from -20 to 60℃ environmental temperature; Some of the Risingstar panels able to afford 110℃ surface temperature for a while, more details and data please contact with us.
Ultra wide viewing angle: Most of the Risingstar LCD panels using IPS screen, which has extremely high viewing angle could reach 178° for both horizontal and vertical direction.
High brightness LCD panel:
49 inch 2000 nits high brightness TFT LCD panel
43 inch FHD high brightness TFT LCD panel
32 inch 1500 nits high brightness TFT LCD panel
| Screen Diagonal | 21.5 inch |
| Brand | Risingstar |
| Model No | RS215HVN-NE10 |
| Active Area | 476.64(W)×268.11(H) mm |
| Resolution | 1920(RGB)×1080, FHD, 102PPI |
| Physical Size | 495.6(W)×292.2(H)×11(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 3000:1 |
| White Luminance ( Center ) | 1000 cd/m2 (Typ.) [cd/m2 ] |
| Optical Response Time | 13/5 (Typ.)(Tr/Td) ms |
| Nominal Input Voltage | 5.0V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [kg] | 1.67kgs |
| Interface Type | 30 pins LVDS (2 ch, 8-bit) |
| Support Color | 16.7M , 72% sRGB |
| Surface Treatment | Matte, Hard coating (3H) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | 0 ~50 °C |
| Storage (Non-Operating) | -20 ~ 60 °C |
