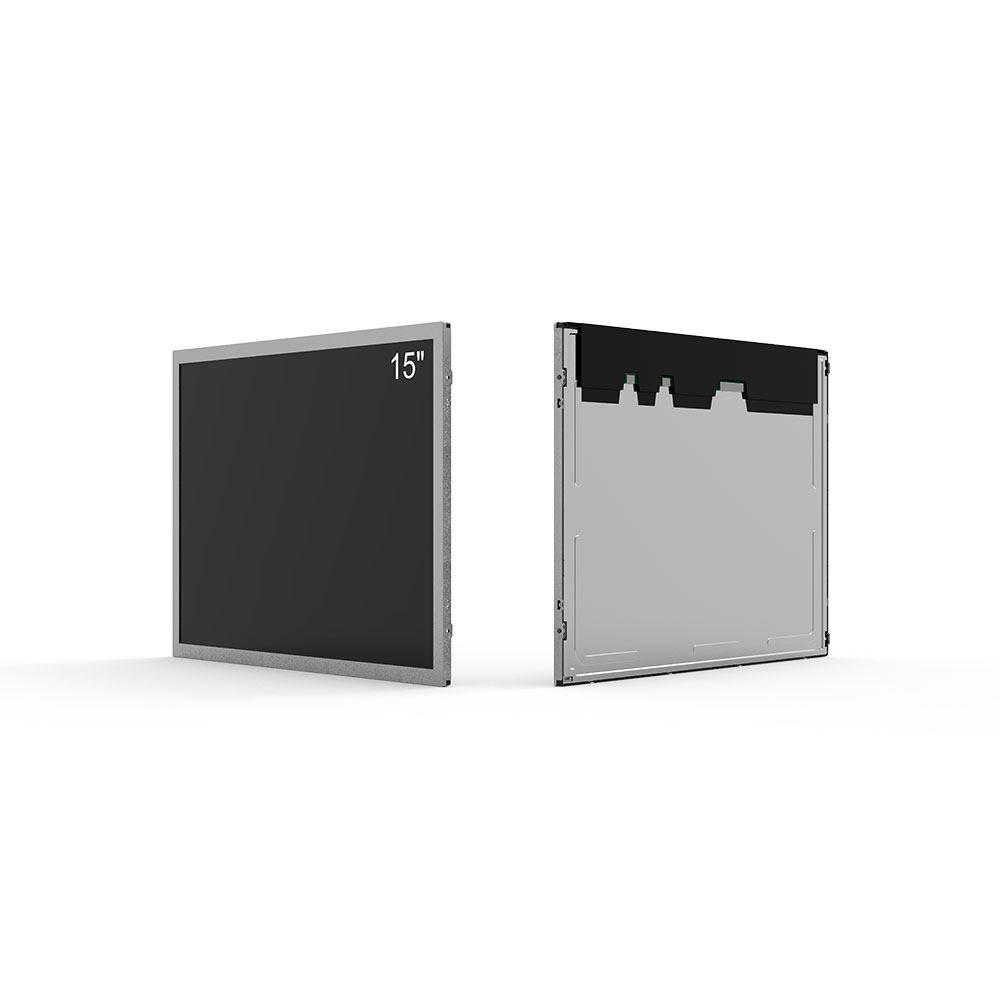

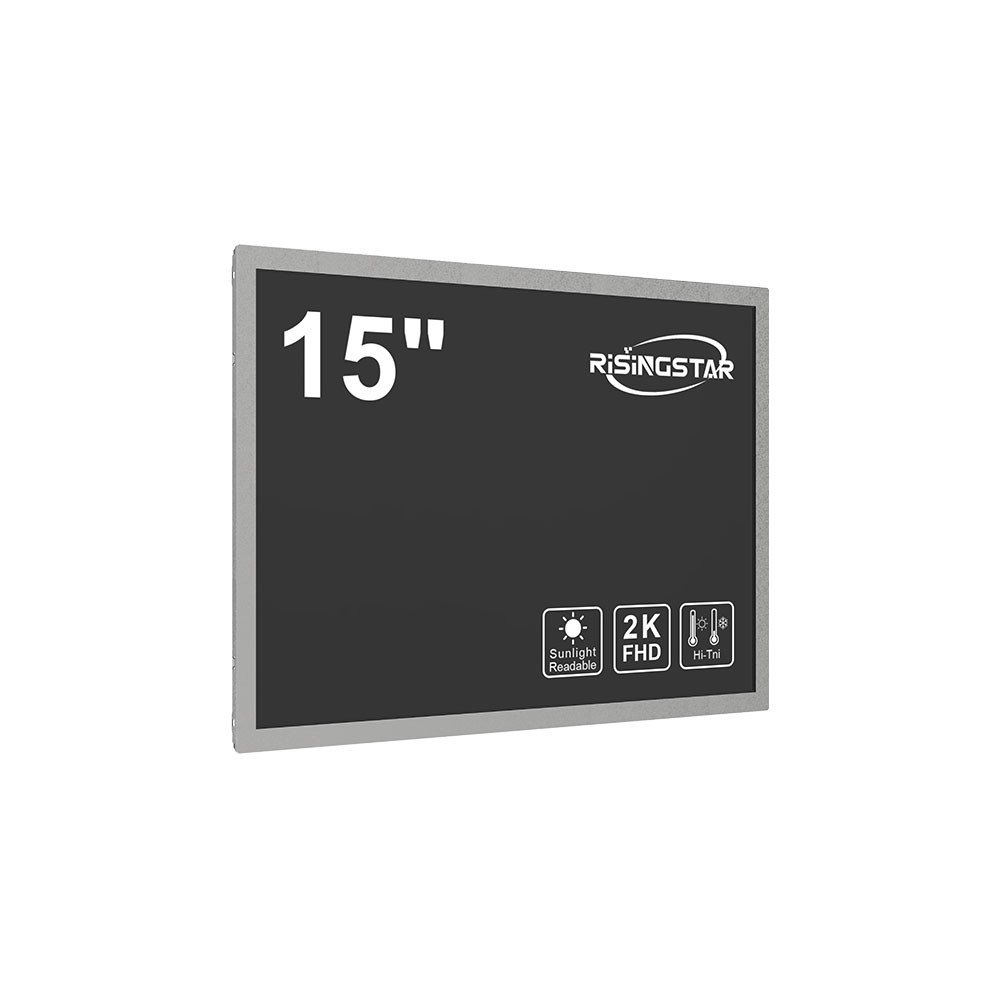

The 15-inch 1000 nit Industry TFT LCD panel is a high brightness, high definition display. It has excellent brightness and contrast for clear display of images and text in outdoor environments.
The 15-inch 1000 nit industrial TFT LCD panel is a high-brightness, high-contrast display. Its modest size makes it ideal for industrial applications such as outdoor displays, in-vehicle displays, and medical devices.
The high brightness design of 1000 nits, which can maintain a clear picture in strong sunlight, greatly improves readability and user experience. In addition, the characteristics of high contrast make the displayed image details more vivid and clear.
The panel adopts TFT technology, has excellent color performance and wide viewing Angle characteristics, and can realize true and accurate image display. In addition, the panel also has a high operating temperature range and durability, adapt to a variety of harsh environments, and can be long-term stable operation.
Overall, the 15-inch 1000 nit industrial TFT LCD panel is a reliable display with high brightness and contrast, ideal for a variety of industrial scenarios.
| Screen Diagonal | 15 inch |
| Brand | Risingstar |
| Model No | RS150XGE-GE10 |
| Active Area | 307.4(W)×231.3(H) mm |
| Resolution | 1024(RGB)×768, XGA 105PPI |
| Physical Size | 326.5(W)× 253.5(H)×12(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 1500:1 |
| White Luminance ( Center ) | 1000 cd/m2 (Typ.) [cd/m2 ] |
| Optical Response Time | 3/5 (Typ.)(Tr/Td) |
| Nominal Input Voltage | 3.3V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [kg] | / |
| Interface Type | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| Support Color | 262K/16.2M |
| Surface Treatment | Antiglare, Hard coating (3H) |
| RoHS Compliance | RoHS Compliance |
| Working Temperature Range | -20 ~60 °C |
| Storage (Non-Operating) | -20 ~ 70 °C |
The 15-inch 1000 nit industrial TFT LCD panel is a high-brightness, high-contrast display. Its modest size makes it ideal for industrial applications such as outdoor displays, in-vehicle displays, and medical devices.
The high brightness design of 1000 nits, which can maintain a clear picture in strong sunlight, greatly improves readability and user experience. In addition, the characteristics of high contrast make the displayed image details more vivid and clear.
The panel adopts TFT technology, has excellent color performance and wide viewing Angle characteristics, and can realize true and accurate image display. In addition, the panel also has a high operating temperature range and durability, adapt to a variety of harsh environments, and can be long-term stable operation.
Overall, the 15-inch 1000 nit industrial TFT LCD panel is a reliable display with high brightness and contrast, ideal for a variety of industrial scenarios.
