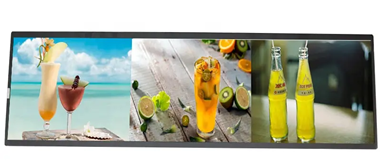

RS286NET-GE10 is a 28.6 inch high tni tft lcd display with Auo original screen P286IVN01.1, it is with an integral WLED backlight system, With LED Driver, without touch screen.
A high Tni panel is a type of display panel that is specifically designed to prevent blackening when the display operates under elevated temperature conditions. This is particularly important for displays that are used outdoors, where there are high ambient temperatures and a high bright backlight, which can cause the display to overheat and become damaged. The term "TNI" refers to the "Twisted Nematic" technology that is used in the display panel, which helps to regulate the temperature and prevent blackening by controlling the amount of light that passes through the panel. Overall, the A high Tni panel is an essential component for displays that are used in harsh environmental conditions, as it ensures that the display remains functional and visible even under extreme temperature conditions.
RS286NET-GE10 is a 28.6 inch high tni tft lcd display with Auo original screen P286IVN01.1, it is with an integral WLED backlight system, With LED Driver, without touch screen. 1920*540 resolution, 4000:1 contrast ratio, LVDs interface, it features an operating temperature range of -20 ~ 60°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.04G (10.2 m/s²). Landscape / Portrait, 1000 nits Hight Brightness, WLED Backlight, Life ≥ 70K hours, With LED Driver, Bar Display, Matte , Liquid crystal: Advanced wide temperature LC (-40-110°C). Based on its features, it is ideal to be applied to Digital Signage, Outdoor High Brightness, Stretched Bar LCD etc.
RisingLCD is a direct supplier for the high brightness tft LCD, we custom the brightness from 700 nits to 5000 nits, and size from 10.1 inch to 98 inch, we use the original AUO, LG, BOE original high tni panel, these panels are recommended for outdoor high brightness digital signage, advertising kiosk.
More high tni AUO panel are available:
AUO high tni (110°c) liquid crystal panel
P280IVN01.1 700 Adv. Hi-Tni LC (-40~110℃), AG28% 24 MP
P286IVN01.1 700 Adv. Hi-Tni LC (-40~110℃), AG28% 24 MP
P294IVN01.1 700 Adv. Hi-Tni LC (-40~110℃), AG28% 24 MP
P366IVN01.1 700 Adv. Hi-Tni LC (-40~110℃), w/o DB, AG28% 24 MP
P370IVN02.2 700 Adv. Hi-Tni LC (-40~110℃), AG28%, 70Khrs 24 MP
P370IVN03.1 1500 Adv. Hi-Tni LC (-40~110℃), AG28%, 70Khrs 24 MP
P370IVN04.1 2500 Adv. Hi-Tni LC (-40~110℃), AG28% 24 MP
P420IVN01.0 700 H-Tni, AG44% 24 EOL_Y23/Jun
P420IVN01.1 700 Adv. Hi-Tni LC (-40~110℃), AG28%, -20~60 24 2023/Jul
P420IVN02.0 1500 H-Tni, AG44% 24 EOL_Y23/Jun
P420IVN02.1 1500 Adv. Hi-Tni LC (-40~110℃), AG28%, -20~60 24 2023/Jul
P420IVN03.1 2500 Adv. Hi-Tni LC (-40~110℃), AG28% 24 EOL_Y23/Jun
P420IVN03.2 2500 Adv. Hi-Tni LC (-40~110℃), AG28%, -20~60 24 2023/Jul
P430KVN01.0 700 Adv. Hi-Tni LC (-40~110℃), AG28% 24 MP
P483IVN02.0 700 Adv. Hi-Tni LC (-40~110℃), Photo mask, 70Khrs 24 MP
P485IVN01.1 700 Adv. Hi-Tni LC (-40~110℃), AG28% 24 MP
P439KVN01.0 700 dv. Hi-Tni LC (-40~110℃), AG28% 24 MP
P495IVN01.0 1500 Adv. Hi-Tni LC (-40~110℃), Photo mask, 70Khrs 24 MP
P495IVN02.0 2500 Adv. Hi-Tni LC (-40~110℃), Photo mask, 70Khrs 24 MP
P495IVN03.0 700 Adv. Hi-Tni LC (-40~110℃), AG28% 24 MP P566KVN01.1 700 Adv. Hi-Tni LC (-40~110℃), AG28% 24 MP
P584KVN01.0 700 Adv. Hi-Tni LC (-40~110℃), Photo mask 24 MP
| Screen Diagonal | 28.6 |
| Auo panel no | P286IVN01.1 |
| Model No | RS286NET-GE10 |
| Active Area | 698.4(W)×196.425(H) mm |
| Pixels | 1920(RGB)×540 69PPI |
| Physical Size | 722.2(H)×220.23(V)×28.9(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| White Luminance ( Center ) | 1000 cd/m2 (Typ.) [cd/m2 ] |
| Contrast Ratio | 4000:1 (Typ.) |
| Optical Response Time | 8 (Typ.)(G to G) |
| Nominal Input Voltage | 12V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down |
| Weight [g] | 3.10Kgs |
| Interface Type | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Support Color | 16.7M 72% NTSC |
| Surface Treatment | Antiglare (Haze 28%), Hard coating (3H) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | -20 ~ 60 °C |
| Storage (Non-Operating) | -20 ~ 60 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
