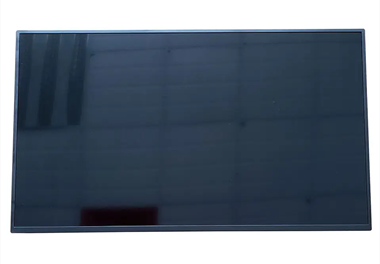

P460HVN05.0 is a 46 inch hi-tni industrial tft lcd display from AUO, it is with an integral WLED backlight system, With LED Driver, without touch screen. 1920*1080 full high resolution, 2500 nits high brightness, 4000:1 contrast ratio, LVDS interface, it is ideal to be applied to Digital Signage, Outdoor High Brightness etc.
P460HVN05.0 is a 46 inch hi-tni industrial tft lcd display from AUO, it is with an integral WLED backlight system, With LED Driver, without touch screen. 1920*1080 full high resolution, 2500 nits high brightness, 4000:1 contrast ratio, LVDS interface, it features an operating temperature range of 0 ~ 60°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.04G (10.2 m/s²). Landscape / Portrait, 2500 nits High Brightness, WLED Backlight, Life ≥ 70K hours, With LED Driver, Bar Display, Matte, Liquid crystal: Advanced wide temperature LC (-40-110°C), hi- tni panel. Based on its features, it is ideal to be applied to Digital Signage, Outdoor High Brightness etc.
46 inch TFT LCD, 2500 nits LED Backlight , 1920*1080 FHD resolution
46 inch hi-tni tft LCD
High Brightness 2500 nits
LED Backlight
LCD blacking defect free (Hi-Tni 110 ˚C)
Low Power Consumption
Hi-tni Blackening Defect Free
A hi-Tni panel is a type of display panel that is specifically designed to prevent blackening when the display operates under elevated temperature conditions. This is particularly important for displays that are used outdoors, where there are high ambient temperatures and a high bright backlight, which can cause the display to overheat and become damaged.
AUO hi-tni high brightness tft LCD
P460HVN04.4 1500 Adv. Hi-Tni LC (-40~110℃), AG28%, (P) 24 MP
P460HVN04.5 1500 Adv. Hi-Tni LC (-40~110℃), AG28%, (L) 24 MP
P320HVN07.0 2500 Adv. Hi-Tni LC (-40~110℃), D-LED 24
P320HVN07.1 2500 Adv. Hi-Tni LC (-40~110℃), D-LED, (L) 24 2023/Feb
P320HVN07.2 2500 Adv. Hi-Tni LC (-40~110℃), D-LED, (P) 24 2023/Feb
P430HVN06.1 2500 Adv. Hi-Tni LC (-40~110℃), AG28% (P) 24 2023/Sep
P460HVN05.0 2500 Adv. Hi-Tni LC (-40~110℃), AG28%, 70Khrs 24 MP
P460HVN05.1 2500 Adv. Hi-Tni LC (-40~110℃), C-POL 24 MP
P460HVN05.2 2500 Adv. Hi-Tni LC (-40~110℃), D-LED, (L) 24 2023/Apr
| Screen Diagonal | 46 inch |
| Auo panel no | P460HVN05.0 |
| Model No | RS460NET-GE25 |
| Active Area | 1018.08(W)×572.67(H) mm |
| Pixels | 1920(RGB)×1080, FHD 47PPI |
| Physical Size | 1044.1(W)×598.7(H) ×59.9(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| White Luminance ( Center ) | 2500 cd/m2 (Typ.) [cd/m2 ] |
| Contrast Ratio | 4000:1 (Typ.) |
| Optical Response Time | 8 (Typ.)(G to G) |
| Nominal Input Voltage | 12V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) Left / Right / Up / Down |
| Weight [g] | 11Kgs |
| Interface Type | LVDS (2 ch, 10-bit) , 51 pins Connector |
| Support Color | 16.7M/1.07B 72% NTSC |
| Surface Treatment | Antiglare (Haze 28%) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | 0 ~50 °C |
| Storage (Non-Operating) | -20 ~ 60 °C |
