A hi-Tni panel is a type of display panel that is specifically designed to prevent blackening when the display operates under elevated temperature conditions.

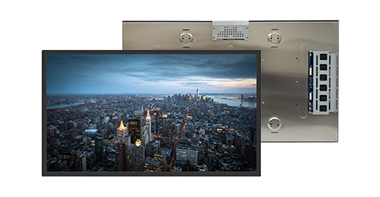

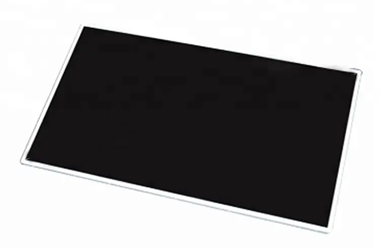

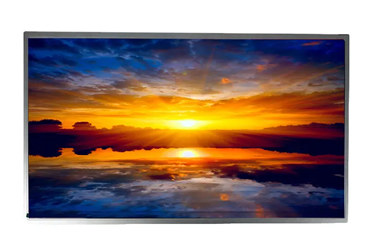

P320HVN04.3 AUO 32 inch hi-tni tft LCD with 2500 nits high brightness |risinglcd
P320HVN04.3 is a 32 inch high brightness hi-tni industrial tft lcd display from AUO, it is with an integral WLED backlight system, With LED Driver, without touch screen. 1920*1080 full high resolution (16:9), Risingstar customized 2500 nits high brightness, 4000:1 contrast ratio, LVDS interface, it features an operating temperature range of -20 ~ 60°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.04G (10.2 m/s²). Landscape / Portrait, 2500 nits High Brightness, WLED Backlight, Life ≥ 70K hours, With LED Driver, Bar Display, Matte, Liquid crystal: Advanced wide temperature LC (-40-110°C), hi- tni panel. Based on its features, it is ideal to be applied to Digital Signage, Outdoor High Brightness etc.
32 inch Hi-tni high brightness TFT LCD P320HVN04.3
32 inch industrial hi-tni tft LCD
FHD 16:9 display
High Brightness 2500 nits
LED Backlight
LCD blacking defect free (Hi-Tni 110 ˚C)
Low Power Consumption
Main features
1.Hi-tni Blackening Defect Free
A hi-Tni panel is a type of display panel that is specifically designed to prevent blackening when the display operates under elevated temperature conditions. This is particularly important for displays that are used outdoors, where there are high ambient temperatures and a high bright backlight, which can cause the display to overheat and become damaged.
Most residential and commercial LCD panel exposed to directly sunlight will blacken or result in isotropic failure. RisingLCD 43 inch hi-tni high brightness LCD IS equipped with AUO high-temperature LCD panel capable of withstanding temperatures up to 110˚C (230°F) without blackening – crucial for direct sunlight applications.
2.Full viewing angles,
Thanks to using a matrix with IPS/MVA technology, our high brightness display is readable from any angle. There is no gray scale inversion effect which is a normal feature of popular TN matrixes. A decrease in contrast when increasing the viewing angle is also significantly lower. Superior image quality and color depth at 178 degree ultra-wide portrait orientations. It does not produce image distortion and minimizes color shift when viewed from different angles, it provides clear images and instantly optimizes screen color and brightness.
3. Outstanding visibility high brightness
With a great brightness of 2500nits, this hi-tni LCD are well equipped to make the contents and images vividly stand out in any commercial location, you can experience superior pictures quality and optimized visibility
AUO high tni (110°c) liquid crystal panel
P281SVN01.0 700 Adv. Hi-Tni LC (-40~110℃), Photo mask, 70Khrs 24 MP
P236RVN01.0 700 Adv. Hi-Tni LC (-40~110℃), Photo mask, 70Khrs 24 MP
P430QVT01.0 400 1500R C type LCM with Touch 24 MP
P430QVR01.0 500 1500R C type LCM 24 MP
P215HAN02.0 1500 AHVA, H-Tni LC even bezel, E-LED, 70Khrs 24 MP
P320HVN04.3 1500 Adv. Hi-Tni LC (-40~110℃), D-LED 24 EOL_Y23/Jun
P320HVN04.4 1500 Adv. Hi-Tni LC (-40~110℃), D-LED, (L) 24 2023/Feb
P320HVN04.5 1500 Adv. Hi-Tni LC (-40~110℃), D-LED, (P) 24 2023/Feb
P430HVN05.1 1500 Adv. Hi-Tni LC (-40~110℃), AG28%, (P) 24 MP
P430HVN05.2 1500 Adv. Hi-Tni LC (-40~110℃), AG28%, (L) 24 2023/Jun
P460HVN04.4 1500 Adv. Hi-Tni LC (-40~110℃), AG28%, (P) 24 MP
P460HVN04.5 1500 Adv. Hi-Tni LC (-40~110℃), AG28%, (L) 24 MP
P320HVN07.0 2500 Adv. Hi-Tni LC (-40~110℃), D-LED 24 P320HVN07.1 2500 Adv. Hi-Tni LC (-40~110℃), D-LED, (L) 24 2023/Feb
P320HVN07.2 2500 Adv. Hi-Tni LC (-40~110℃), D-LED, (P) 24 2023/Feb
P430HVN06.1 2500 Adv. Hi-Tni LC (-40~110℃), AG28% (P) 24 2023/Sep
P460HVN05.0 2500 Adv. Hi-Tni LC (-40~110℃), AG28%, 70Khrs 24 MP
P460HVN05.1 2500 Adv. Hi-Tni LC (-40~110℃), C-POL 24 MP
P460HVN05.2 2500 Adv. Hi-Tni LC (-40~110℃), D-LED, (L) 24 2023/Apr
P550HVN06.4 2500 H-Tni, C-POL, black bezel 24 EOL_Sep/23
P550HVN06.6 2500 H-Tni, AG28%, 24 MP
P550HVN06.8 2500 Adv. Hi-Tni LC (-40~110℃), C-POL 24 2023/Jun
P650HVN05.1 2500 H-Tni, C-POL, Local Dimming, black bezel 24 MP
| Screen Diagonal | 32 inch |
| Auo panel no | P320HVN04.3 |
| Model No | RS320NET-GE20 |
| Active Area | 698.4(W)×392.85(H) mmm |
| Pixels | 1920(RGB)×1080, FHD 69PPI |
| Physical Size | 721.2(H)×415.65(V) ×58.5(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| White Luminance ( Center ) | 2000 cd/m2 (Typ.) [cd/m2 ] |
| Contrast Ratio | 4000:1 (Typ.) |
| Optical Response Time | 25 (Typ.)(Tr+Td) |
| Nominal Input Voltage | 12V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down |
| Weight [g] | 5.20kgs |
| Interface Type | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Support Color | 16.7M 72% NTSC |
| Surface Treatment | Antiglare (Haze 28%), Hard coating (3H) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | -20 ~60 °C |
| Storage (Non-Operating) | -20 ~ 60 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
