P280IVN01.1 AUO 28" bar type TFT display offers a wide viewing angle and a wide temperature range. The Hi-tni LCD (-40C~110°C) prevents blackening of the image even under direct sunlight.
P280IVN01.1 AUO 28 inch hi-tni stretched 1500 nits high brightness LCD bar |risinglcd
P280IVN01.1 AUO 28" bar type TFT display offers a wide viewing angle and a wide temperature range. The Hi-tni LCD (-40C~110°C) prevents blackening of the image even under direct sunlight.
P280IVN01.1 is a 28 inch high brightness hi-tni industrial tft lcd display from AUO, it is with an integral WLED backlight system, With LED Driver, without touch screen. 1920*360 wide high resolution, Risingstar customized 1500 nits high brightness, 4000:1 contrast ratio, LVDS interface, it features an operating temperature range of -20 ~ 60°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.04G (10.2 m/s²). Landscape / Portrait, 1500 nits High Brightness, WLED Backlight, Life ≥ 70K hours, With LED Driver, Bar Display, Matte, Liquid crystal: Advanced wide temperature LC (-40-110°C), hi- tni panel. Based on its features, it is ideal to be applied to Digital Signage, Outdoor High Brightness, stretched bar etc.

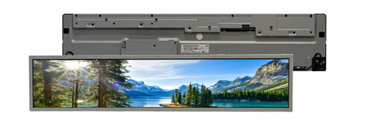

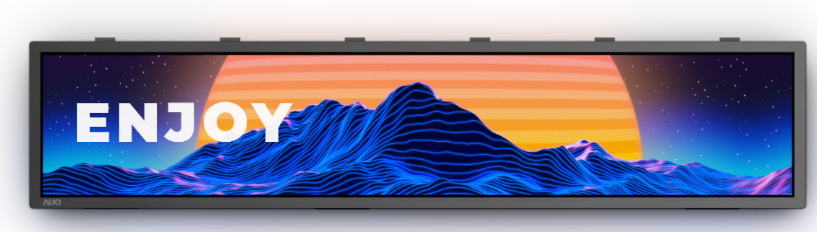

28 inch Hi-tni high brightness TFT LCD bar P280IVN01.1
28 inch industrial hi-tni tft LCD
Wide high resolution display
High Brightness 1500 nits
LED Backlight
LCD blacking defect free (Hi-Tni 110 ˚C)
Low Power Consumption
Main features
1.Hi-tni Blackening Defect Free
A hi-Tni panel is a type of display panel that is specifically designed to prevent blackening when the display operates under elevated temperature conditions. This is particularly important for displays that are used outdoors, where there are high ambient temperatures and a high bright backlight, which can cause the display to overheat and become damaged.
2. Outstanding visibility high brightness
With a great brightness of 2500nits, this hi-tni LCD are well equipped to make the contents and images vividly stand out in any commercial location, you can experience superior pictures quality and optimized visibility
AUO high tni (110°c) liquid crystal panel
P280IVN01.1 700 Adv. Hi-Tni LC (-40~110℃), AG28% 24 MP
P286IVN01.1 700 Adv. Hi-Tni LC (-40~110℃), AG28% 24 MP
P294IVN01.1 700 Adv. Hi-Tni LC (-40~110℃), AG28% 24 MP
P366IVN01.1 700 Adv. Hi-Tni LC (-40~110℃), w/o DB, AG28% 24 MP
P370IVN02.2 700 Adv. Hi-Tni LC (-40~110℃), AG28%, 70Khrs 24 MP
P370IVN03.1 1500 Adv. Hi-Tni LC (-40~110℃), AG28%, 70Khrs 24 MP
P370IVN04.1 2500 Adv. Hi-Tni LC (-40~110℃), AG28% 24 MP
P420IVN01.0 700 H-Tni, AG44% 24 EOL_Y23/Jun
P420IVN01.1 700 Adv. Hi-Tni LC (-40~110℃), AG28%, -20~60 24 2023/Jul
P420IVN02.0 1500 H-Tni, AG44% 24 EOL_Y23/Jun
P420IVN02.1 1500 Adv. Hi-Tni LC (-40~110℃), AG28%, -20~60 24 2023/Jul
P420IVN03.1 2500 Adv. Hi-Tni LC (-40~110℃), AG28% 24 EOL_Y23/Jun
P420IVN03.2 2500 Adv. Hi-Tni LC (-40~110℃), AG28%, -20~60 24 2023/Jul
P430KVN01.0 700 Adv. Hi-Tni LC (-40~110℃), AG28% 24 MP
P483IVN02.0 700 Adv. Hi-Tni LC (-40~110℃), Photo mask, 70Khrs 24 MP
P485IVN01.1 700 Adv. Hi-Tni LC (-40~110℃), AG28% 24 MP
P439KVN01.0 700 dv. Hi-Tni LC (-40~110℃), AG28% 24 MP
P495IVN01.0 1500 Adv. Hi-Tni LC (-40~110℃), Photo mask, 70Khrs 24 MP
P495IVN02.0 2500 Adv. Hi-Tni LC (-40~110℃), Photo mask, 70Khrs 24 MP
P495IVN03.0 700 Adv. Hi-Tni LC (-40~110℃), AG28% 24 MP P566KVN01.1 700 Adv. Hi-Tni LC (-40~110℃), AG28% 24 MP
P584KVN01.0 700 Adv. Hi-Tni LC (-40~110℃), Photo mask 24 MP
P586ZVN01.0 700 Adv. Hi-Tni LC (-40~110℃), AG28% 24 MP
P449SVN01.0 700 Adv. Hi-Tni LC (-40~110℃), Photo mask, 70Khrs 24
MPP353KVN01.0 500 Adv. Hi-Tni LC (-40~110℃), Photo mask 24 MP
| Screen Diagonal | 28 inch |
| Auo panel no | P280IVN01.1 |
| Model No | RS280NET-GE15 |
| Active Area | 698.4(W)×130.95(H) mm |
| Pixels | 1920(RGB)×360, 69PPI |
| Physical Size | 722.2(W)×154.75(H)×28.9(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| White Luminance ( Center ) | 1500 cd/m2 (Typ.) [cd/m2 ] |
| Contrast Ratio | 4000:1 (Typ.) |
| Optical Response Time | 8 (Typ.)(G to G) |
| Nominal Input Voltage | 12V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [g] | 2.4Kgs |
| Interface Type | LVDS (2 ch, 8/10-bit) , 51 pins Connector |
| Support Color | 16.7M, 72% NTSC |
| Surface Treatment | Antiglare (Haze 28%) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | -20 ~60 °C |
| Storage (Non-Operating) | -20 ~ 60 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
