RisingLCD industrial high brightness LCD display are recommended to be used in the all kindls of harsh environments, under direct sunlight for outdoor/semi outdoor industrial device.

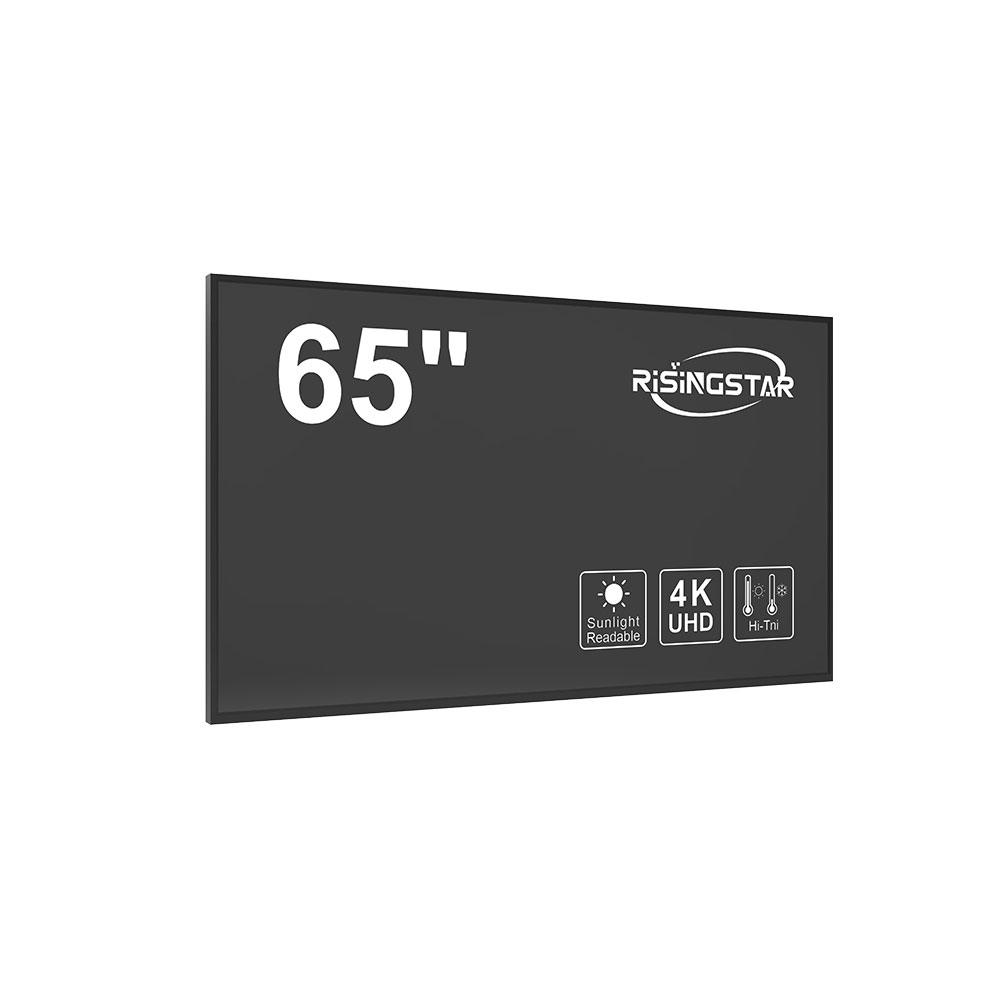

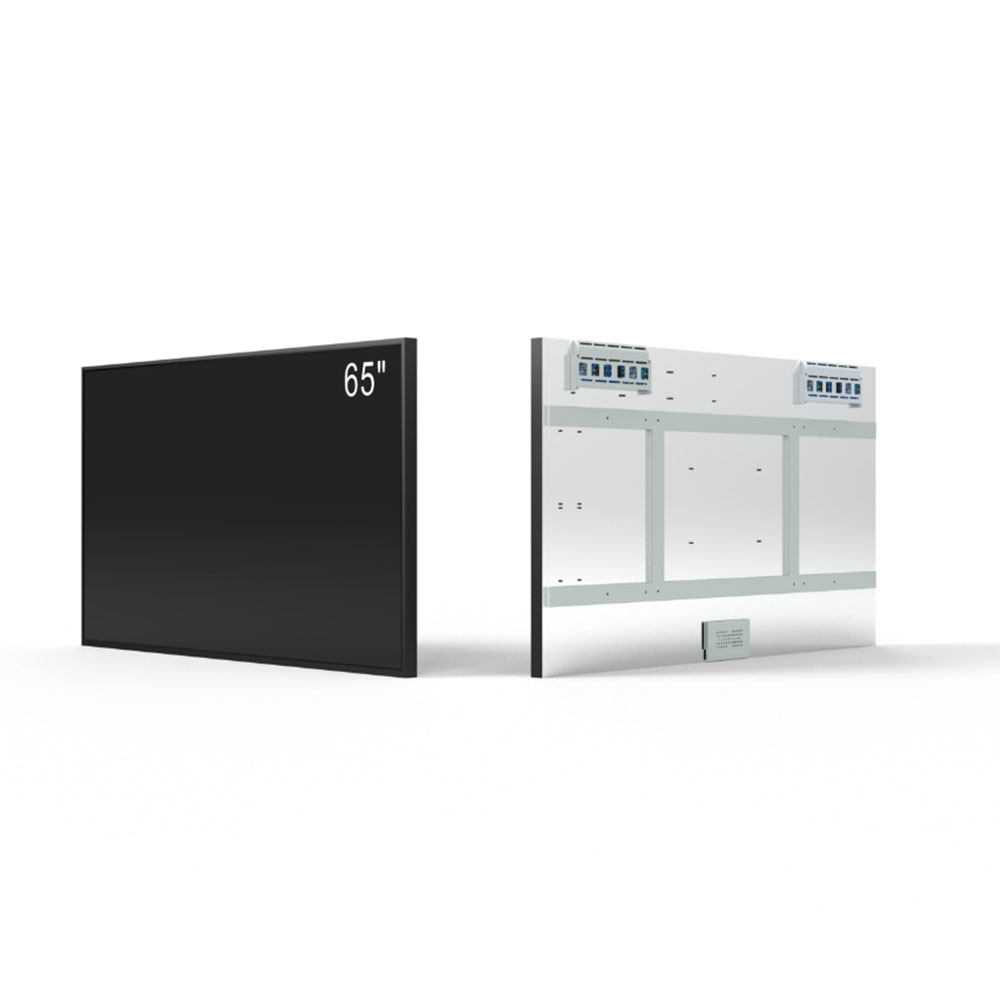

RS650ENT-GD30 is a 65-inch high brightness TFT LCD panel from Risingstar, use the own design backlight structure allowed the brightness reach 3000-nits, which is far higher than the general LCD panels and can be used by other manufacturers such like info kiosk maker, outdoor advertising player maker, outdoor tv maker, etc.
Risingstar LCD panels always has far higher brigthness than most of our competitors, for the specific 65-inches we can reached 4500 nits even much higher, more information please searching our website: www.risinglcd.com
Size (inch) | 32 | 43 | 49 | 55 | 65 |
Model number | RS320ENT-ND25 | RS430ENT-ND25 | RS490ENT-ND20 | RS550ENT-ND25 | RS650ENT-GD30 |
Brightness (cd/m2) | 2500 | 2500 | 2000 | 2500 | 3000 |
Resolution (pixels) | 3840*2160 | 1920*1080 | 1920*1080 | 1920*1080 | 3840*2160 |
Contrast ratio | 1200:1 | 1200:1 | 1200:1 | 1200:1 | 1200:1 |
Operating temperature | 0 ~ 50℃ | 0 ~ 50 ℃ | 0 ~50℃ | 0 ~ 50℃ | -30 ~ 80℃ |

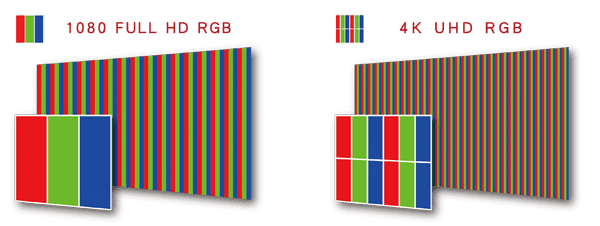

Out of the Ordinary: This product has 4K (3840*2160)resolution, which is unusual in 32 inch LCD panel series, it gives this panel ability to have better image performance to be used by our customers from Jewerly business who need a suitable size but high definition to showing the details of those items.
Top grade Open-cells: Risingstar has ability making our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high quality displays for each of our customers.

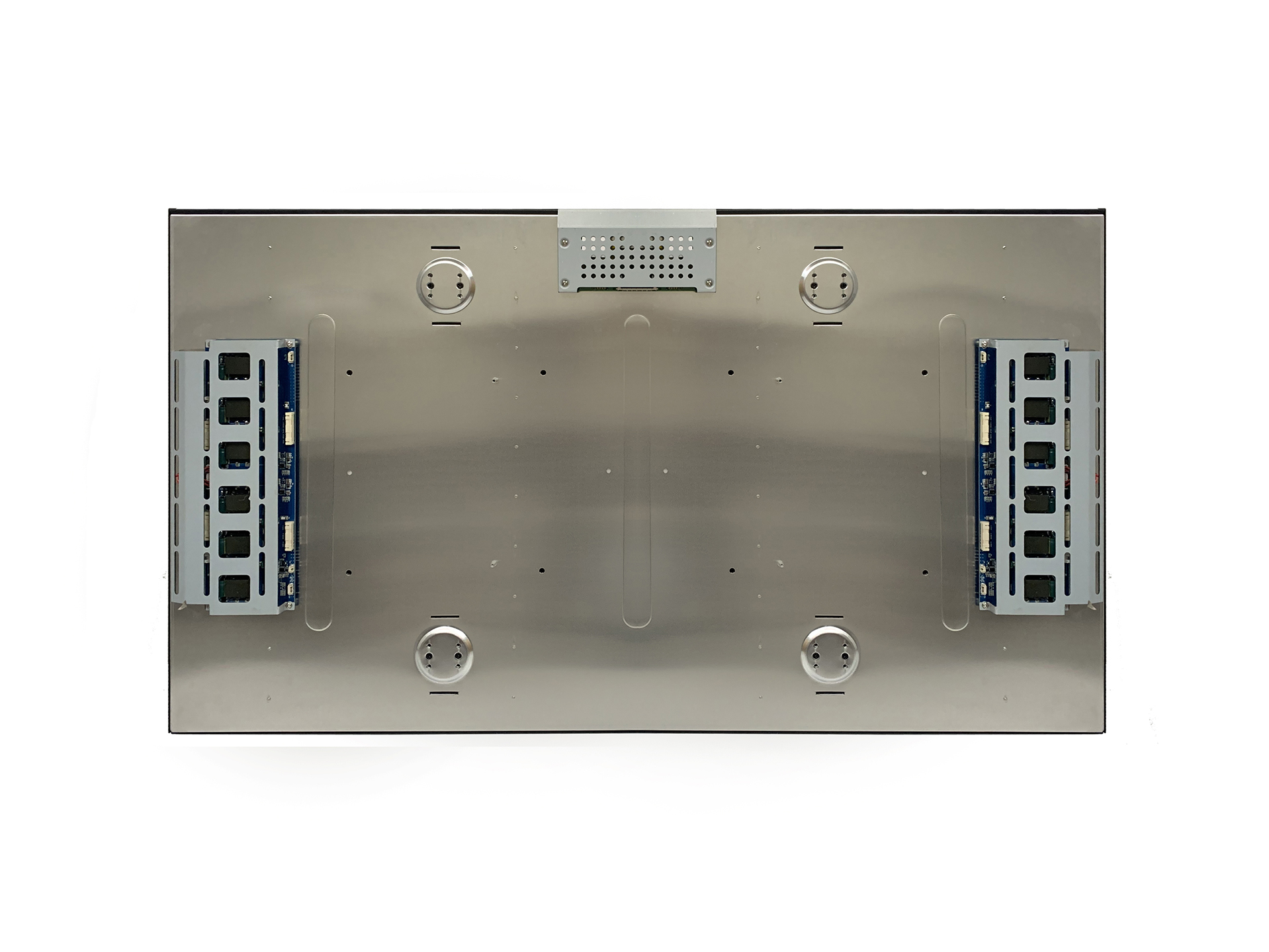

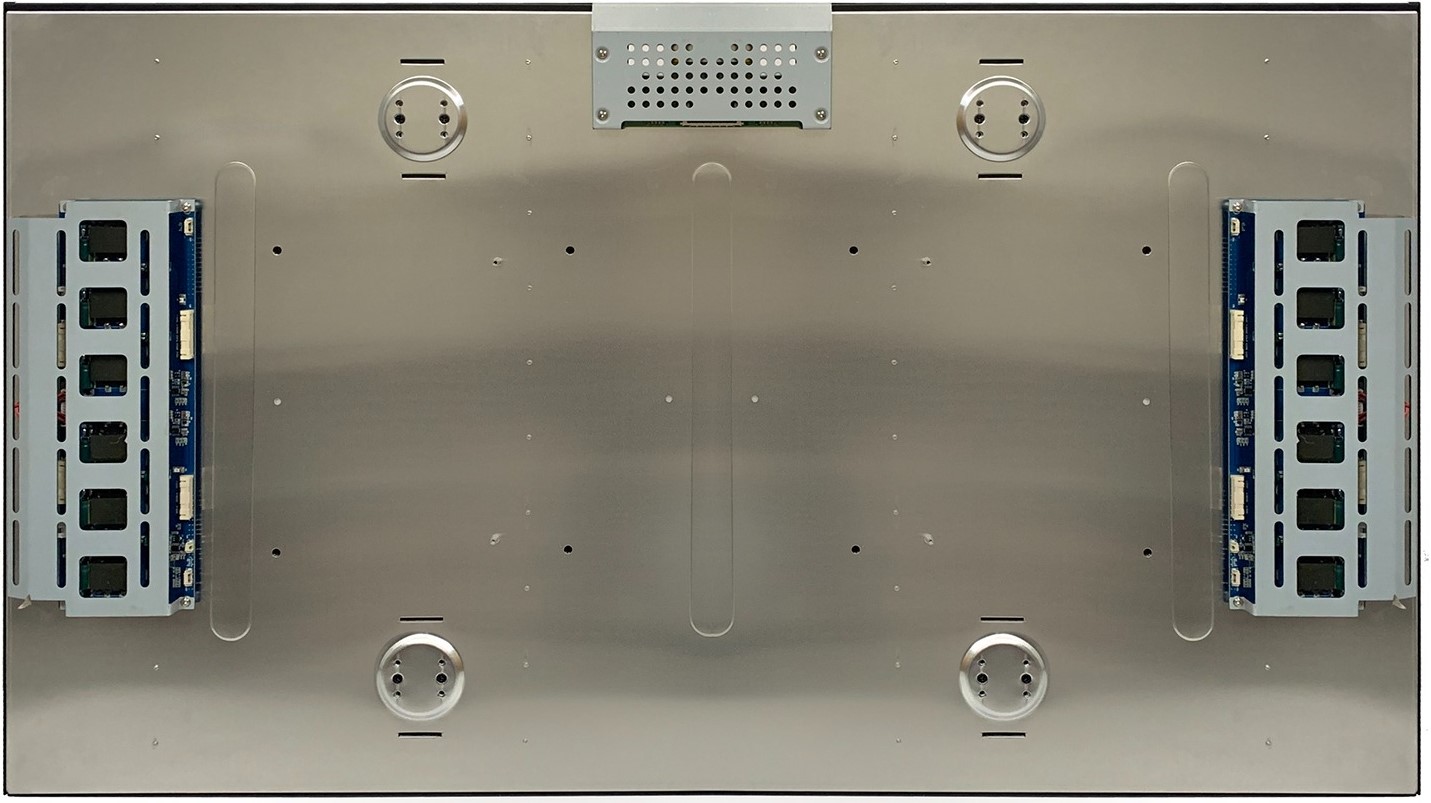

Full aluminum customize housing: All the LCD panel from Risingstar are using our own design housing with strength structure to protect the inner parts, it also means the screw holes on the housing can be customized by the requirements.
Direct-LED backlight structure: Risingstar own design LED bubble is directly under the open-cells of this panel, which allowed the LCD panel reached maximum brightness, for the specific 65-inch panel, it can reached 4500-nits.
High Tni LCD panel: The basic Risingstar LCD panel can keep working from 0 to 50℃ environmental temperature, which is enough for most of our customers; we also offered industrial level LCD panels which could keep working from -20 to 60℃ environmental temperature; Some of the Risingstar panels able to afford 110℃ surface temperature for a while, more details and data please contact with us.
Ultra wide viewing angle: Most of the Risingstar LCD panels using IPS screen, which has extremely high viewing angle could reach 178° for both horizontal and vertical direction.
High brightness LCD panel:
49-inch 1500-nits high brightness LCD panel
32 inch industrial high brightness LCD panel with thin bezel
43 inch 3000 nits outdoor high brightness LCD display
| Screen Diagonal | 65 inch |
| Model No | RS650ENT-GD30 |
| Active Area | 1431.5*28.48(W)×803.52(H) mm |
| Pixels | 3840(RGB)×2160, UHD, 59PPI |
| Physical Size | 1661.66(W)×843.1(H)×58(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| White Luminance ( Center ) | 3000 cd/m2 (Typ.) [cd/m2 ] |
| Contrast Ratio | 1200:1 (Typ.) |
| Optical Response Time | 8 (Typ.)(G to G) ms |
| Nominal Input Voltage | 12V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [g] | 28Kgs |
| Interface Type | 51 pins V-by-One 8 lane Connector |
| Support Color | 16.7M, 73% NTSC |
| Surface Treatment | Hard coating (2H), |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | -30 ~80 °C |
| Storage (Non-Operating) | -30 ~ 80 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
