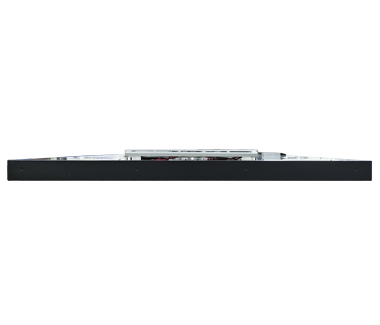

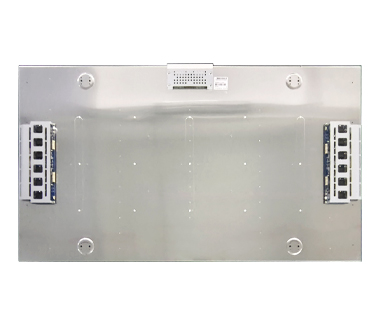

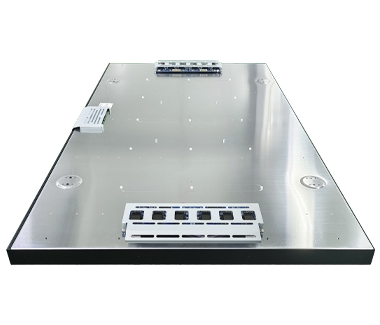

RS550DPY-GD45 is Risingstar 55 inch industrial high brightness TFT LCD panel, 4500 nit brightness, wide operating temperature up to 110°C, full HD resolution, ideal for outdoor digital signage display, outdoor kiosk, brightness adjustment available, PWM adjustment, DC adjustment and auto light sensor.
RS550DPY-GD45 is Risingstar 55 inch industrial high brightness TFT LCD panel, 4500 nit brightness, wide operating temperature up to 110°C, full HD resolution, ideal for outdoor digital signage display, outdoor kiosk, brightness adjustment available, PWM adjustment, DC adjustment and auto light sensor.
55 inch industrial high brightness Main Features:
LG original LCD panel
High resolution: 1920*1080
Brightness up to 4500 nits
Auto brightness control
Wide industrial working temperature
Almuinum alloy structure easy heat dissipation
24/7 working time
55 inch industrial high brightness is with auto brightness control
Different external lighting condition requires different brightness level, an onboard light sensor was built-in our industrial high brightness panel that measures the ambient light in the area and automatically adjust the image light accordingly, offer a best experience to the viewer, and also can save the energy cost, reduce the heat and extends the life of the screen.
55 inch industrial high brightness is with 4500 nit high brightness,
Our high brightness LCD screens provide a sun and daylight readable solution for outdoor displays, suitable for 24/7 operation. High brightness touch screens are also available on request
55 inch industrial high brightness is with Wide industrial working temperature
Most residential and commercial screens will blacken or result in isotropic failure when the LCD panel overheats. This industrial high brightness LCD panel display is equipped with a high-temperature LCD screen capable of withstanding temperatures up to 110˚C (230°F) without blackening – crucial for direct sunlight applications.
Application of industrial high brightness tft LCD panel module: outdoor kiosk, outdoor digital signage, EV car charging station, bus station advertisement, railway station information digital signage, airport information digital signage, taxi stand information display, vending machine interactive display, store Facing the window display, city street guidance information display
| Screen Diagonal | 55 inch |
| Brand | Risingstar |
| Model No | RS550DPY-GD45 |
| Active Area | 1209.6(W)×680.4(H) mm |
| Resolution | 1920(3)×1080, FHD, 40PPI |
| Physical Size | 1242.1(W)×718(H)×60.9(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 1000:1 |
| White Luminance ( Center ) | 4500 nits |
| Optical Response Time | 6 (Typ.)(G to G) ms |
| Nominal Input Voltage | 12V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [g] | 13.5g(Typ.) |
| Interface Type | LVDS (2 ch, 8-bit) , 51 pins |
| Support Color | 16.7M , 70% NTSC |
| Surface Treatment | Hard coating (2H) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | 0 ~50 °C |
| Storage (Non-Operating) | -20 ~ 60 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
