1000 nits high brightness, with LED driver, Military-grade quality, wide working temperature (-30 °C ~80 °C), stable operation, suitable for applications in various harsh environment.

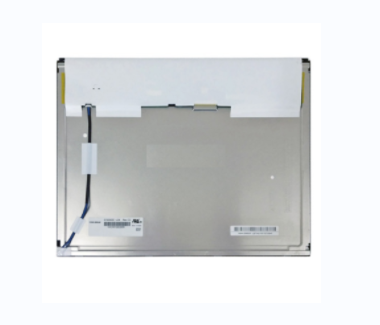

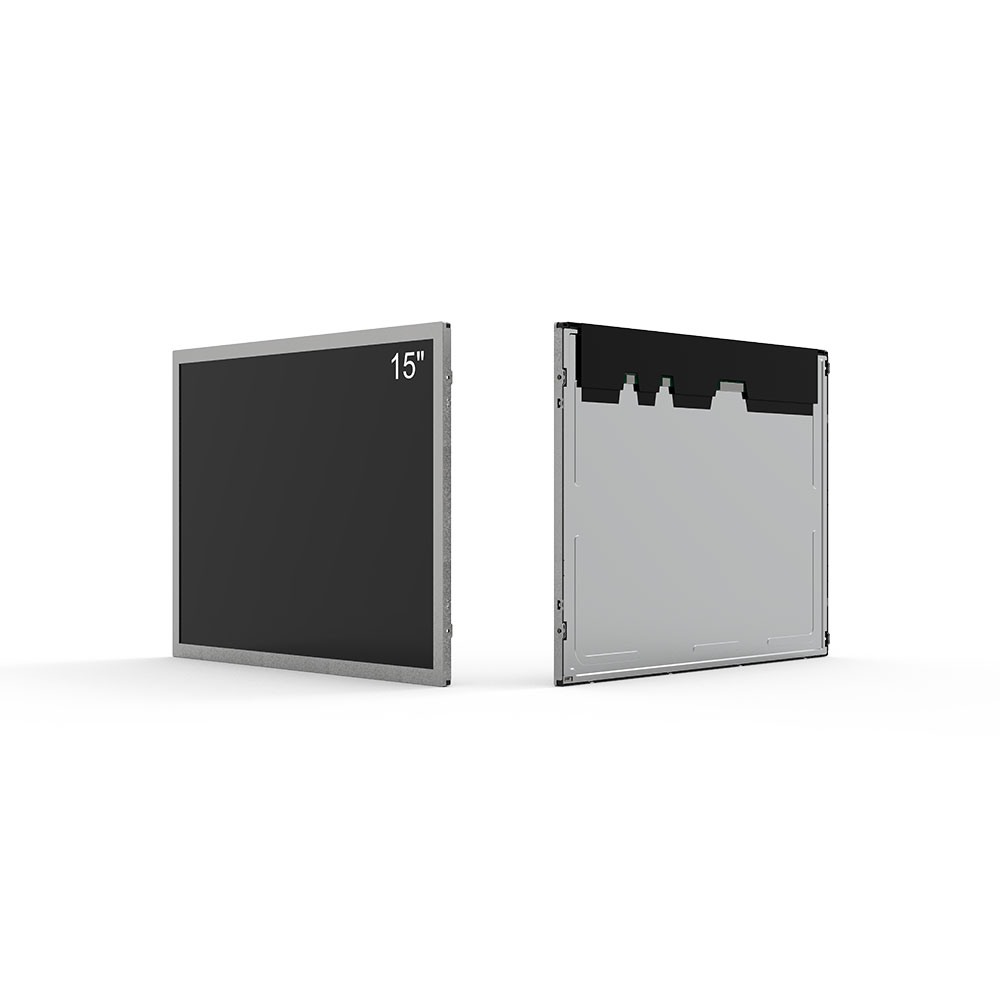

RisingLCD RS150XGE-GE10 is a 15 inch military grade TFT LCD panel with 1000 nits high brightness, with LED driver, Military-grade quality, wide working temperature (-30 °C ~80 °C), stable operation, suitable for applications in various harsh environment.
RS150XGE-GE10 Main Features:
1. Original TFT LCD panel
2. High resolution: 1024*768
3. Brightness up to 1000 nits
4. Military grade, Blackening Defect free
5. More brightness adjustment available: Auto brightness sensor, Manual brightness adjustment( PWM brightness adjustment, OSD brightness adjustment)
6. Multi touch (PCAP) is option.
RisingLCD 15 inch military grade LCD panel offers 1000 nits sunlight readable brightness, best visibility, low power consumption, are recommended for outdoor device, outdoor kiosk, charging station screen and outdoor vending machine.
| Screen Diagonal | 15 inch |
| Brand | Risingstar |
| Model No | RS150XGE-GE10 |
| Active Area | 261.12(W)×163.2(H) mm |
| Resolution | 1024(RGB)×768, XGA, 85PPI |
| Physical Size | 326.5(W)×253.5(H)×12(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 700:1 |
| White Luminance ( Center ) | 1000 nits |
| Optical Response Time | 8/17 (Typ.)(Tr/Td) ms |
| Nominal Input Voltage | 3.3V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) |
| Weight [g] | 835g(Typ.) |
| Interface Type | LVDS (1 ch, 6/8-bit) , 20 pins |
| Support Color | 262K/16.2M , 55% NTSC |
| Surface Treatment | Antiglare,Hard coating (3H) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | -30 ~80 °C |
| Storage (Non-Operating) | -40 ~ 85 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
