High brightness industrial LCD monitor, 1000 nits high brightness, RisingLCD customized LED backlight technology ensures it high reliability and low power consumption, ideal for outdoor and industrial application.

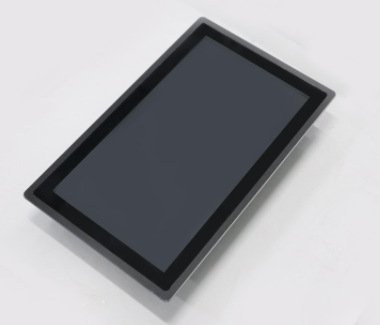

RS185-MH01XT01BK is a 18.5 inch industrial grade high brightness LCD monitor, with high brightness 1000 nits, it produces sharp images, crisp text and lifelike colors. with VESA mount (75*75mm, 100*100mm), easy to mount for any space.
18.5 inch high brightness LCD monitor Key Features
High brightness 1000nits
Edge LED Backlight
Wide Viewing Angle of 178°(H), 178°(V)
Wide Operation Temperature (-20 ˚C~70˚C)
Fully enclosed industrial grade metal housing
Low Power Consumption
BL MTBF: 50,000 hours

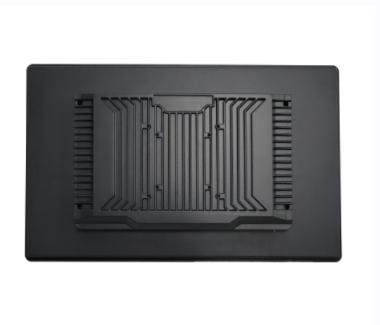

VESA Mount, (75 x 75mm, 100*100mm)
Multi capacitive touch is option.
More size high brightness LCD monitors are avaialble, 10.1 inch, 12.1 inch, 13.3 inch·15.6 inch·18.5 inch, 21.5 inch, 27 inch.
18.5 inch high brightness LCD monitor application:
Self-service terminals device, medical equipment, express cabinets, self-service vending machines, banking equipment, industrial equipment
| Model Name | RS18.5-MH00XT01BK |
| Screen Size | 18.5 inch |
| Display Area (mm) | 409.8(H) x 230.4(V) |
| Brightness | 1000 cd/m |
| Resolution | 1920*1080 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1000：1 |
| Pixel Pitch (mm) | 0.213(H) x 0.213(V) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Color Saturation (NTSC) | 70% |
| Display Colors | 16.7M |
| Response Time (Typical) | 30(Typ.)(Tr/Td) ms |
| Input Interface | HDMI*1 VGA*1 AUDIO IN*1 HDMI*1DVI*1 DCIN*1 |
| Touch (optional) | NC 2MM Tempered Glass |
| CPU | NC |
| Memory | NC |
| SDD | NC |
| System | NC |
| Input Power | DC 12v |
| Power Consumption | 21.5W |
| Dimensions (mm) | 482 x 302 x 61 |
| Mounting | 75*75/100*100 |
| Weight (Net) | 3.5KGS |
| Operating Temperature | -20 ˚ C ~ 70 ˚ C |
| Storage Temperature | -30 ˚ C ~ 80 ˚ C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
