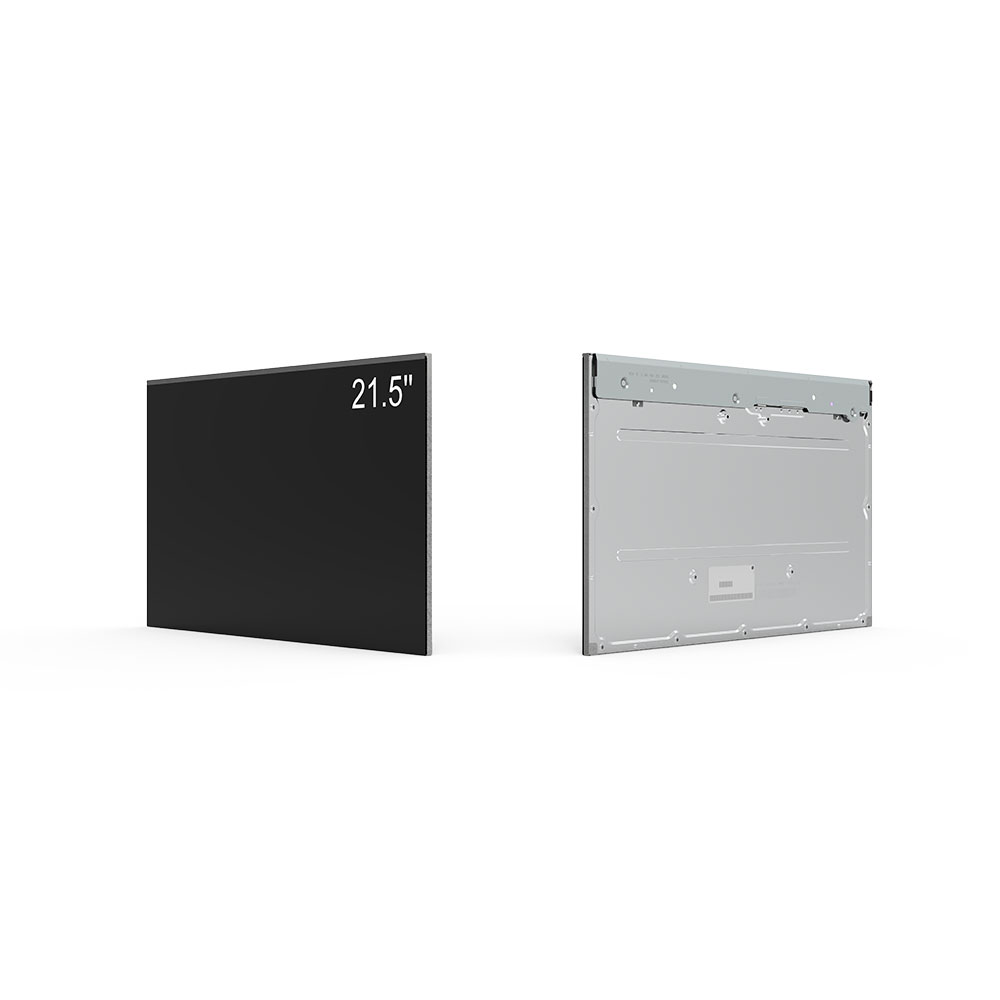

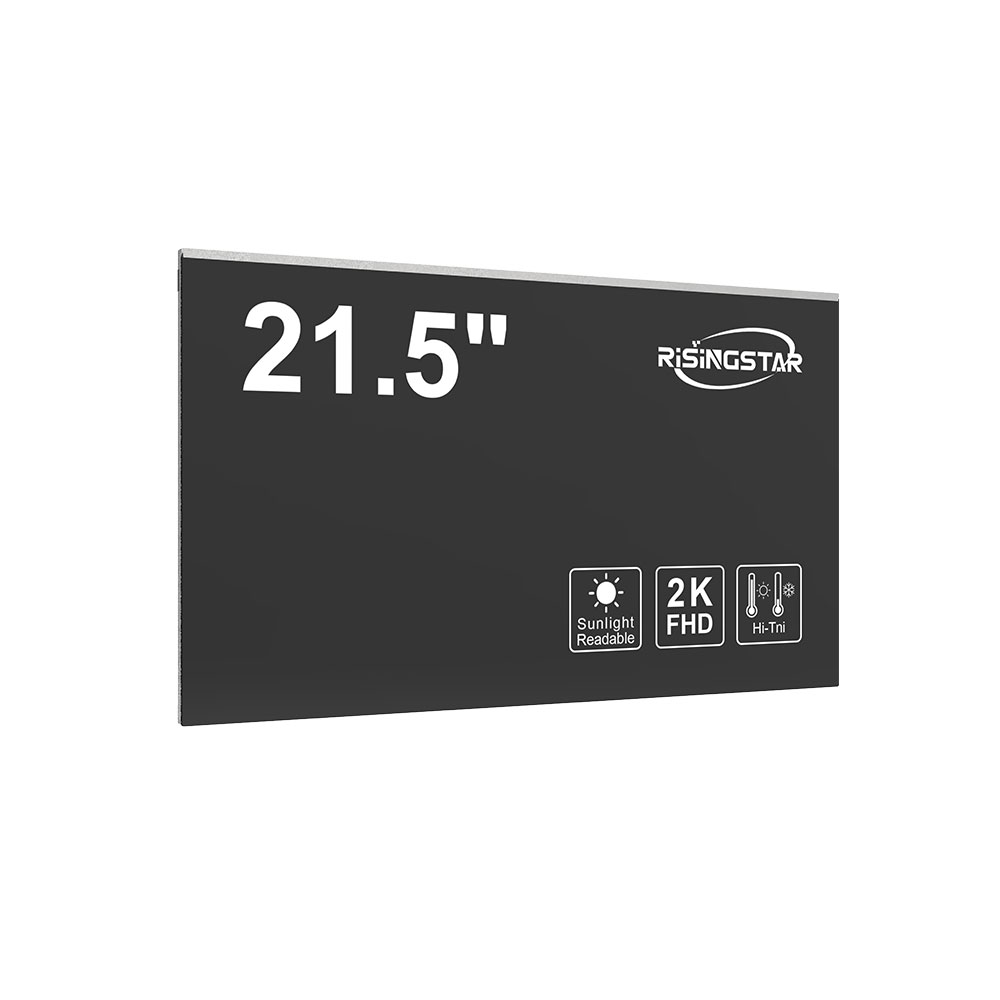

BOE DV215FHM-R10 is A 21.5 inch TFT LCD liquid crystal module product, high brightness 1500nits, no touch function, no backlight driver. With a -20 ~ 85°C wide industrial operating temperature and the storage temperature is -30 ~ 85°C, full viewing angel 178/178, antiglare surface treatment, the1500 nits ultra high brightness, white LED backlight and above 50000 hours life span.

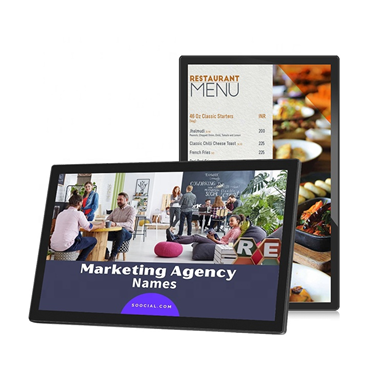

It is ideal for digital signage, outdoor highbrightness, industrial products, transportation and automotive industry.
BOE DV215FHM-R10 is with outstanding visibility,
Billiant and bright, this industrial LCD panel process powerful brightness of 1500nits, message remain clear and bright even in the outdoor direct sunlight in a store front and along with the extra wide 178° viewing angle is a perfect fit for shoppers, store, employees or visitors that will view Window Facing displays from diverse angles while passing by.
BOE DV215FHM-R10 is with auto brightness control
An onboard light sensor is built in this LCD panel, it can adjusts the brightness of the display automatically according to the surrounding lighting condition,it measures the ambient light and change the image light accordingly, offer a best experience to the viewer, and this feature considerably reduces power consumption and increases the display's lifetime.
BOE DV215FHM-R10 is with Industrial operating temperature range,
This LCD panel can operate in a stable and failure-free way for a long period within wide range of tepmerature -20 ~ 85 °C, thanks to such option, it maybe successfully applied in transportation and automotive industry. Most residential and commercial display will blacken or result in isotropic failure with the display overheats for a long period, this BOE LCD panel can withstand the themperatures up to 110˚C (230°F) without blackening – crucial for direct sunlight applications.
| Panel Model | Brand | Size | Composition | Resolution | Brightness | C/R | View Angle | Colors | Backlight | Interface |
| GV215FHM-N10 | BOE | 21.5" | LCM | 1920×1080 | 350-1500 | 1000:01:00 | 89/89/89/89 | 16.7M | WLED | LVDS |
| UV215FHM-N10 | BOE | 21.5" | LCM | 1920×1080 | 500-1500 | 1000:01:00 | 89/89/89/89 | 16.7M | WLED | LVDS |
| QV215FHM-N10 | BOE | 21.5" | LCM | 1920×1080 | 300-1500 | 1000:01:00 | 89/89/89/89 | 16.7M | WLED | LVDS |
| DV215FHM-R01 | BOE | 21.5" | LCM | 1920×1080 | 500-1500 | 1000:01:00 | 89/89/89/89 | 16.7M | WLED | LVDS |
| QV215FHB-N10 | BOE | 21.5" | LCM | 1920×1080 | 300-1500 | 1000:01:00 | 89/89/89/89 | 16.7M | WLED | LVDS |
| GV215FHB-N10 | BOE | 21.5" | LCM | 1920×1080 | 300-1500 | 1000:01:00 | 89/89/89/89 | 16.7M | WLED | LVDS |
| DV215FHM-NR01 | BOE | 21.5" | LCM | 1920×1080 | 500-1500 | 1000:01:00 | 89/89/89/89 | 16.7M | WLED | LVDS |
| DV215FHM-R10 | BOE | 21.5" | LCM | 1920×1080 | 1500 | 1000:01:00 | 89/89/89/89 | 16.7M | WLED | LVDS |
| DV215FHM-R01-4850 | BOE | 21.5" | LCM | 1920×1080 | 350-1500 | 1000:01:00 | 89/89/89/89 | 16.7M | WLED | LVDS |
| Panel Brand | BOE |
| Panel Model | DV215FHM-R10 |
| Size | 21.5 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution: | 1920(RGB)×1080 [FHD] 102PPI |
| Pixel Format | RGB Horizontal Stripe |
| Display Area | 478.66 × 260.28 mm (H×V) |
| Outline Size | 481.1*262.7mm (H×V) |
| Bezel Area | 499*286.2*15.2mm |
| Surface Treatment | Antiglare, Hard coating (3H) |
| Brightness | 1500 |
| Constrast Ratio. | 1000:1 |
| Aspect Ratio: | 16:9 |
| View Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Model | ADS, Normally Black, Transmissive |
| Response Time | 14(Typ.)( G to G) |
| Display Color | 16.7B 72% NTSC |
| Backlight | WLED , 50K hours , W/O LED Driver |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Panel Weight | 2.0KGS (Typ./Max.) |
| Frame Rate | 60Hz |
| Working Temperature | -20 ~ 85 ° |
| Storage Temperature | -30 ~ 85 °C |
