Brand:
Risinglcd
Model name:
RS980ENT-N25
Screen size:
98"
Screen type:
LCD Monitor
Resolution:
3840×2160(RGB)
Brightness (cd/m²):
1000 to 5000

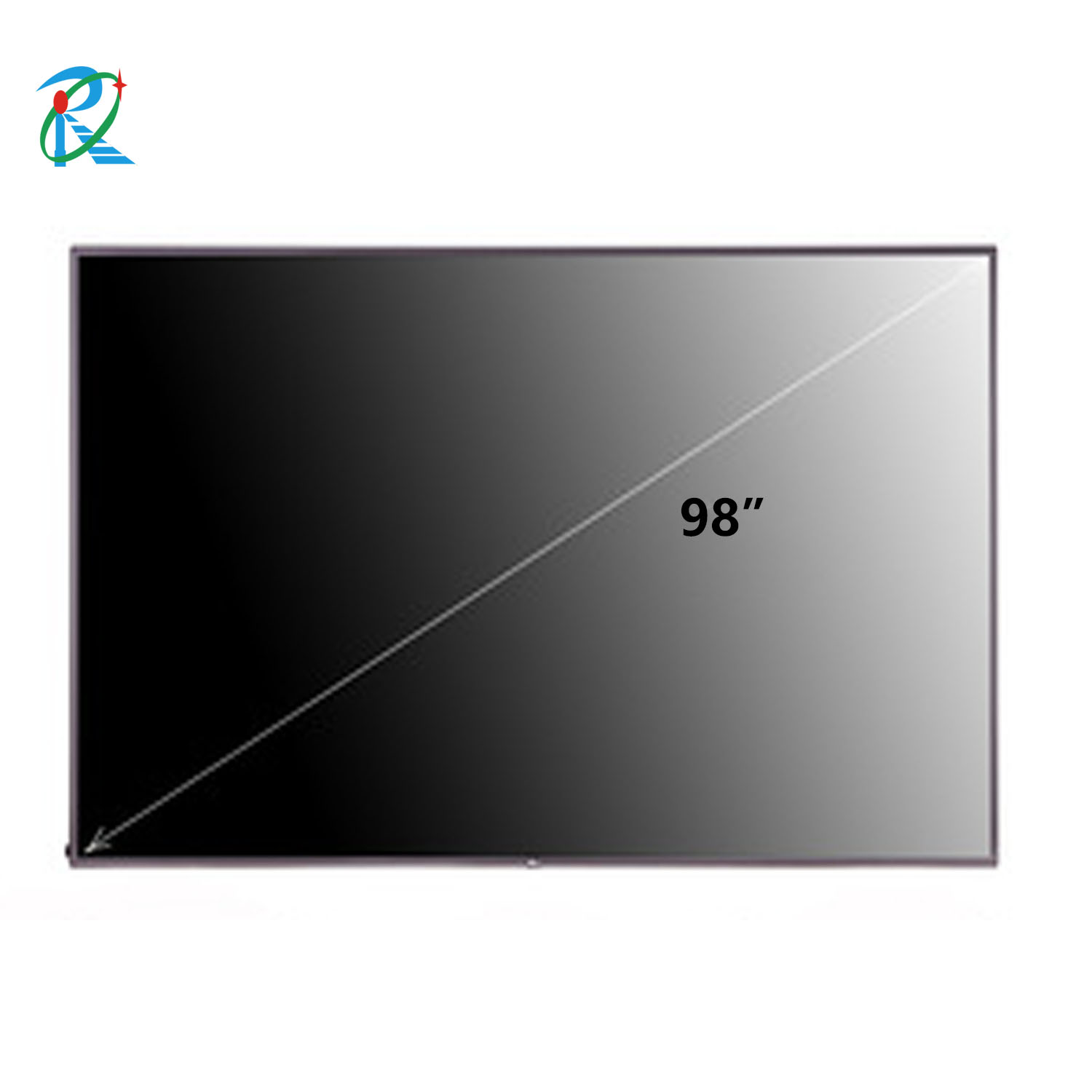

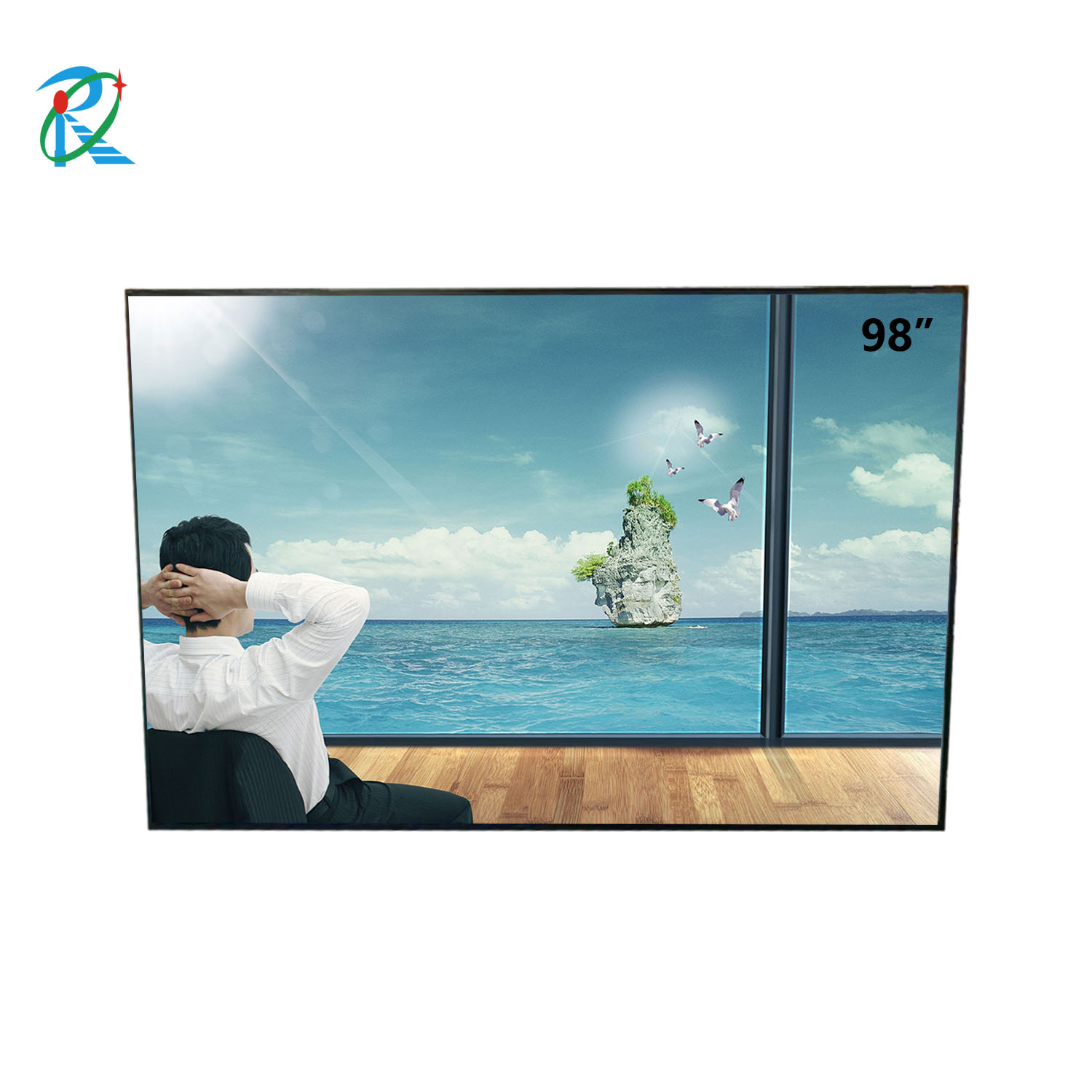

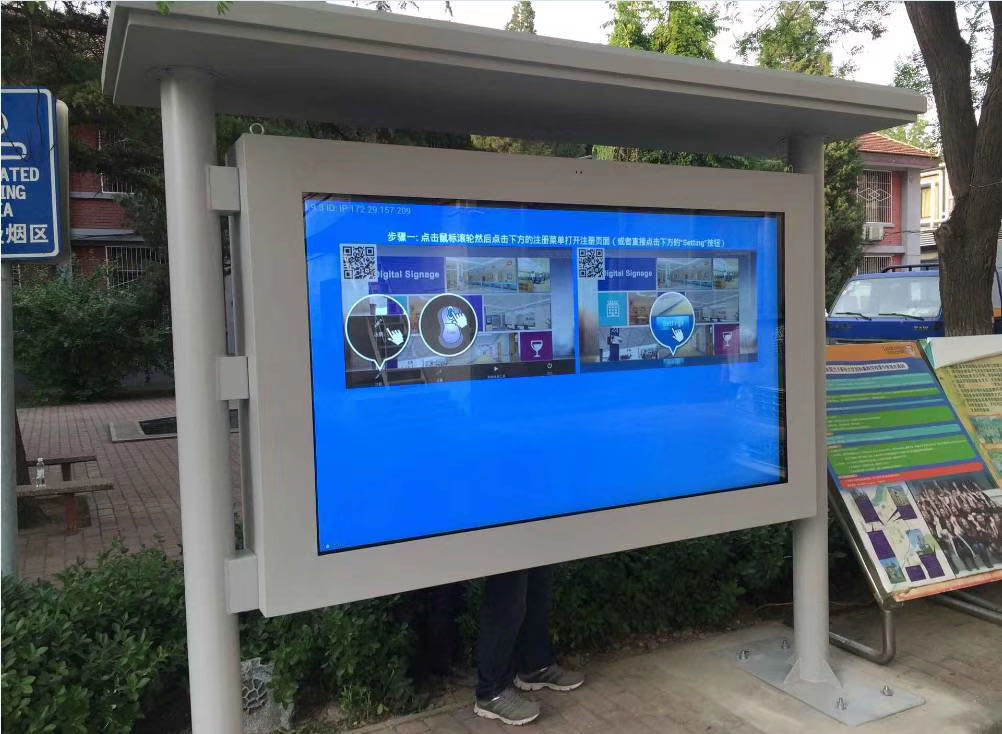

Risingstar 98" outdoor high light LCD screen for outdoor terminal advertisement machine.UFHD LCD screen with high quality metal frame,Reduing the overall operating temperature.Meeting higher environmental requirements.
Advantages of RisingLCD industrial-grade LCD module:
1. Adopt LG industrial-grade LCD panel;
2. Aluminum alloy structure design;
3, 120 degrees Celsius optical materials;

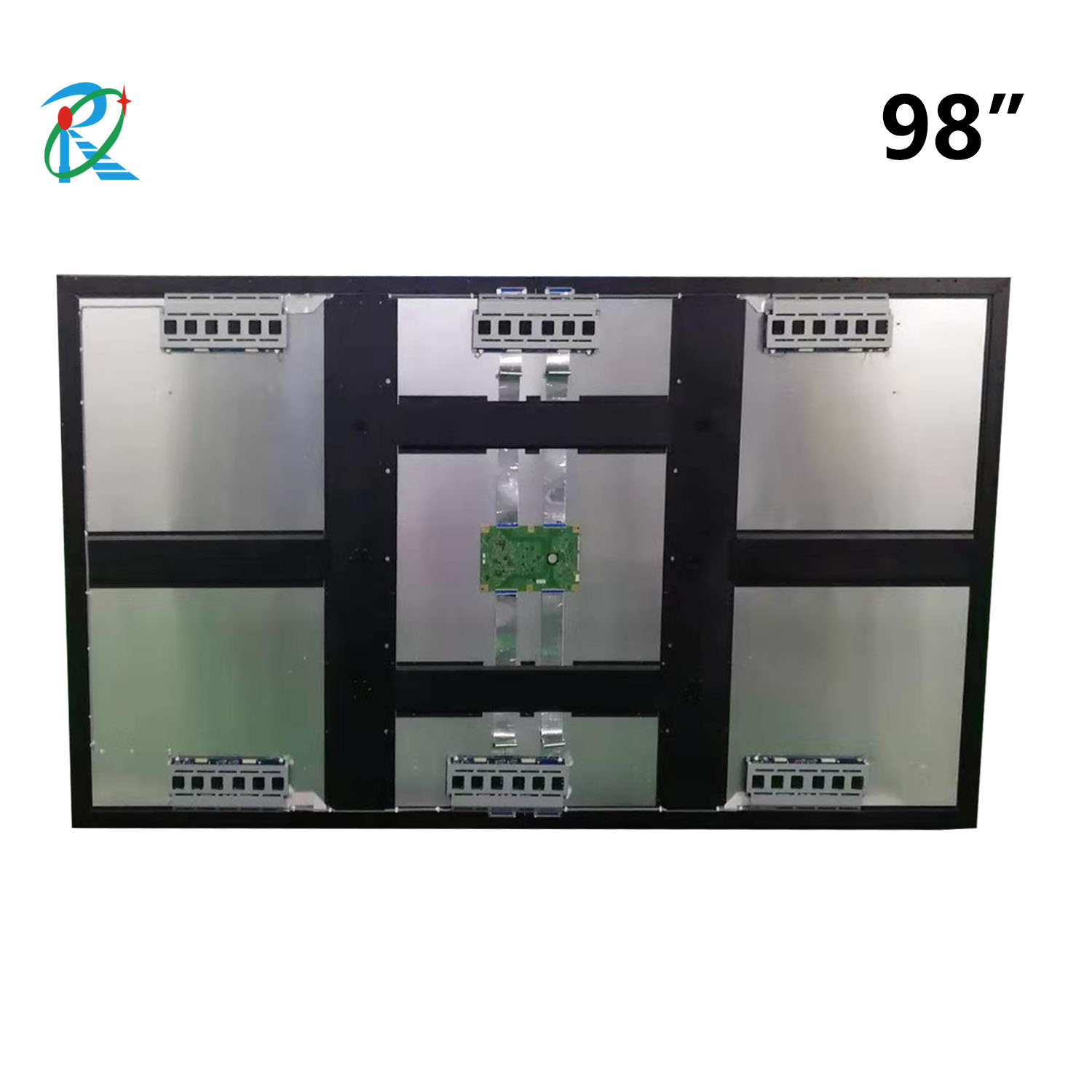

4. Matrix LED backlight design;
5, industrial-grade backlight driver motherboard;
6, automatic, knob, pwm and more brightness adjustment methods;
7, Support long-term supply system;
8 or 7-day fast response mechanism；
9, automatically dimming backlight driver motherboard.
Size | 98inch |
Panel item | RS980ENT-N40 |
Panel type | a-Si TFT-LCD |
Display mode | IPS,Normally black，transmissive display |
Pixels | 3840*2160 |
brightness | 2500cd/m2 |
Constrast Ratio | 1400:1 |
Display ratio | 16:9 |
Display color | 16.7m(8-bit) |
View angle | 89/89/89/89 (Min) |
View area | 2162*1217mm(H*V) |
Dispaly area | 2158.85*1214.35mm(H*V) |
Outline Size | 2192*1247.5*35mm(H*V*D) |
Respon Time | 6ms |
Working freqyency | 60Hz |
Signal Type | LVDS |
Backlight Type | WLED |
Working temperature | 0- 50ﾟC |
Storage Temperature | -20 - +60ﾟC |
Backlight Voltage | 24V |
Back;ight Power Consumption | 1000w |
Surface Treatment | Haze 1%,Hard coating(3H) |
Weight | 60kgs |
