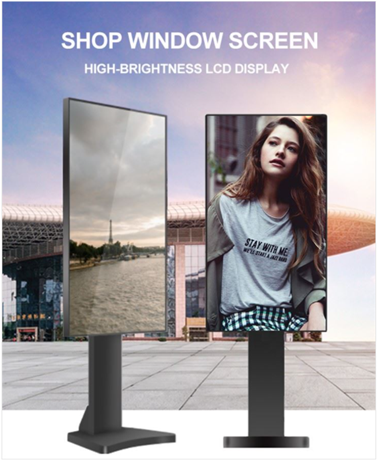

RS650ENT-N30 is suitable for: terrace TV, outdoor TV, waterproof monitor, outdoor digital signage, shop window advertising screen, all sunlight readable display equipment.
Brand:
Risinglcd
Model name:
RS650ENT-N30
Screen size:
65"
Screen type:
LCD Monitor
Resolution:
3840×2160 (RGB)
Brightness (cd/m²):
1000-4000

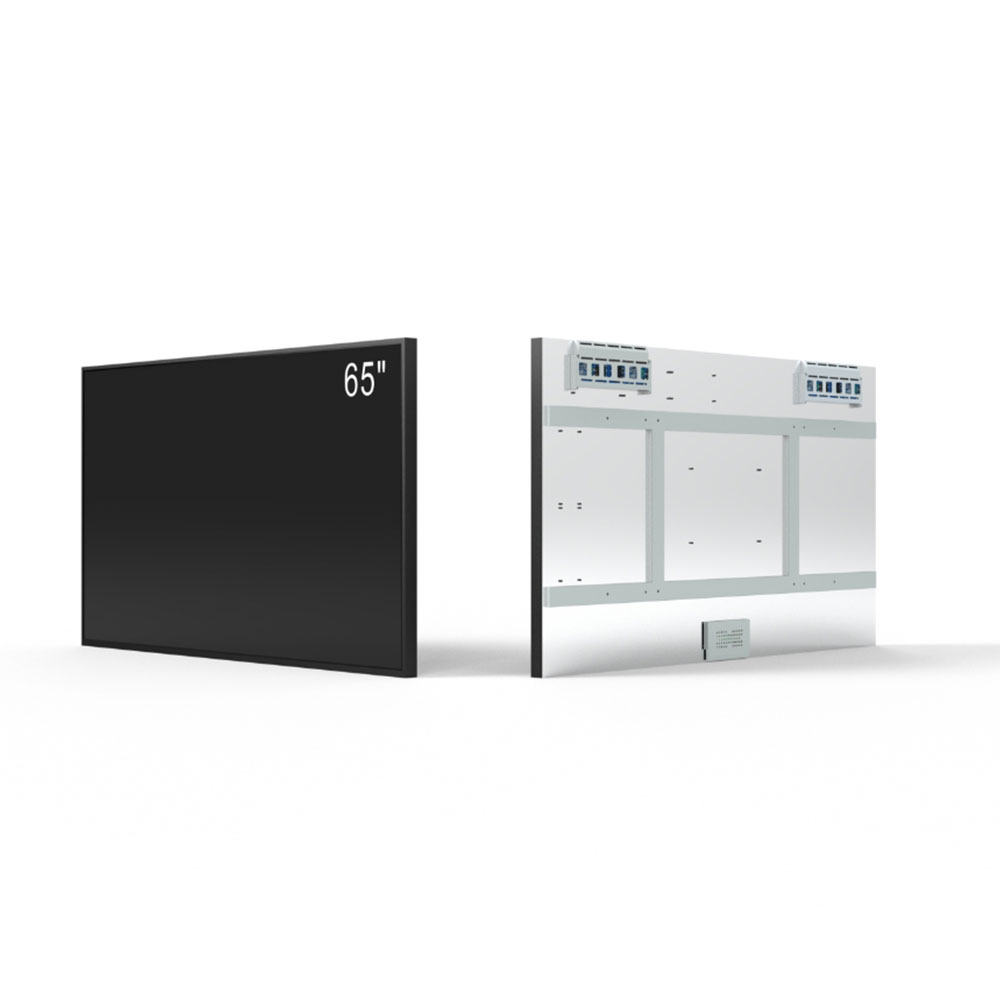

Risinglcd 65 inch outdoor high brightness sun readable LCD display, high brightness LCD module can be designed into different outdoor digital signs, such as: outdoor monitors, digital signs, touch query displays, outdoor advertising screens, road traffic guidance screens, etc.
RS650ENT-N20 product features:
1. Adopt LG/BOE/AUO commercial grade A-standard LCD panel;
2. Support 3 kinds of adjustment methods for backlight drive motherboard;
3. The structure adopts aluminum alloy material;
4. Support double-sided simultaneous display;
5. Support horizontal screen and vertical screen playback mode;
6. The direct-lit gypsophila backlight design is more reliable for heat dissipation;
7.Pass the 120℃ reliability test of optical materials;
Techspecs:
Items | Specification | Note |
Panel Brand | RisingLCD | |
Diagonal Size | 65" | |
Panel Type | a-Si TFT-Module | LG/BOE/AUO |
Resolution | 1920×1080 / 3840 × 2160 (RGB) | |
Pixel Format | RGB Vertical Stripe | |
Display Area | 1428×803 mm (H×V) | |
Outline Size: | 1452×830×40mm (H×V×D) | |
Surface | Antiglare (Haze 1%), Hard coating (2H). | |
Brightness | 500 to 4000 cd/m² (Typ.) | |
Contrast Ratio | 1300:1 (Typ.) (TM) | |
waterproof level | / | |
Protection level | / | |
Support Color | 1.67B 100% NTSC | |
Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | |
Display Mode | IPS, Normally Black, Transmissive . | |
Response Time | 5 (Typ.)(G to G); 8 (Typ.)(MPRT). | |
Lamp Type | WLED , 50K hours , With LED Driver | |
Frequency: | 60Hz | |
Panel Weight | 25 Kgs (Typ./Max.) | |
Application | Outdoor digital signage | |
Signal Interface | LVDS | |
Input Voltage: | 24V (Typ.). | |
Operating Temp. | 0 ~ 50 °C | |
Storage Temp. | 0 ~ 50 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
