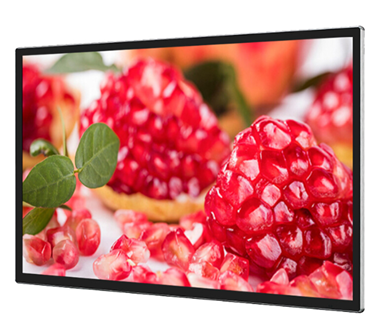

RisingLCD RS430ENT-N35 industrial display have a 1920*1080 resolution, and 16:9 aspect ration, 1200:1 contrast ratio, the high bright LED backlight display provides over 3500nits of brightness, -20 ~ 70 °C wide operating temperature that making the screen sunlight readable for outdoor application
General Description
RisingLCD RS430ENT-N35 industrial display have a 1920*1080 resolution, and 16:9 aspect ration, 1200:1 contrast ratio, the high bright LED backlight display provides over 3500nits of brightness, -20 ~ 70 °C wide operating temperature that making the screen sunlight readable for outdoor application.
3500nits BOE 43 inch high brightness industrial outdoor display Main Features:
BOE original Industrial LCD panel
High resolution: 1920*1080
Brightness up to 700-3500 nits
Wide operating temperature: -20 ~ 70 °C
Blackening Defect free
AR Glass, reduce reflectioin effect.
Built-in Auto Light sensor
Interface: HDMI(2)/DP/DVI-D/RJ45/RS232C/USB
Industrial operating temperature range, this outdoor window facing display can operate in a stable and failure-free way for a long period within wide range of tepmerature -20 ~ 70 °C, thanks to such option, it maybe successfully applied in transportation and automotive industry. Most residential and commercial display will blacken or result in isotropic failure with the display overheats for a long period, RS430ENT-N35 outdoor window facing display is equipped with a high-temperature BOE LCD panel ( DV320FHB-R00) that can withstand the themperatures up to 110˚C (230°F) without blackening – crucial for direct sunlight applications.
Outstanding visibility,

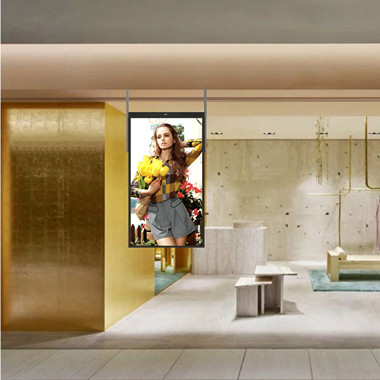

Billiant and bright, the industrial outdoor window facing series process powerful brightness of 3500nits, message remain clear and bright even in the outdoor direct sunlight in a store front and along with the extra wide 178° viewing angle is a perfect fit for shoppers, store, employees or visitors that will view Window Facing displays from diverse angles while passing by.
Auto brightness control
Different external lighting condition requires different brightness leverls, an onboard light sensor that built-in our outdoor window facing display measures the ambient light in the area and automatically adjust the image light accordkingly, offer a best experience to the viewer, and also can save the engery cost, reduce the heat and extends the life of the screen.
| Factory Model No: | RS430ENT-N35 |
| Panel Brand | BOE Display |
| Panel No.: | DV430FHB-R00 |
| Screen Size | 43" |
| Panel Technology | IPS, M+ (WRGB) |
| Active Area(mm) | 940.896×529.254 (H×V)mm |
| Panel Type. | a-Si TFT-LCD, CELL |
| Aspect Ratio | 16:09 |
| Native Resolution | 1920*1080 (FHD) 40PPI |
| Refresh Rate | 60Hz |
| Brightness | 3500nit (Typ, w/ Glass) |
| Contrast Ratio | 1200:1 (Typ) |
| Dynamic CR | 500,000:1 |
| Color gamut | NTSC 72% |
| Viewing Angle (H x V) | 178 x 178 |
| Support Color: | 16.7M , 72% NTSC |
| Response Time | 8 (Typ.) (G to G)ms |
| Surface Treatment (Haze) | Hard coating (2H), Reflection 1.0% (Max.) |
| Transmittance: | 6.0% (Typ.) (without Polarizer) |
| Life time | 50,000 Hrs (Typ) |
| Operation Hours (Hours/Day) | 24/7 |
| Operating Temperature: | -20 ~ 70 °C |
| Storage Temperature: | -20 ~ 70 °C |
| Portrait / Landscape | Yes / Yes |
| QWP (Quarter Wave Plate) | Yes (Apply on glass) |
| Jack interface input | HDMI (2), , RS232C IN (4pin phone jack), RJ45(LAN), IR IN, USB2.0 Type A (1) |
| Jack interface output | DP Out (Input DP/HDMI), Externel Speaker Out (L/R, 10W+10W), RS232C OUT |
| Net work support | LAN/WLAN/3G/4G/5G network. |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
