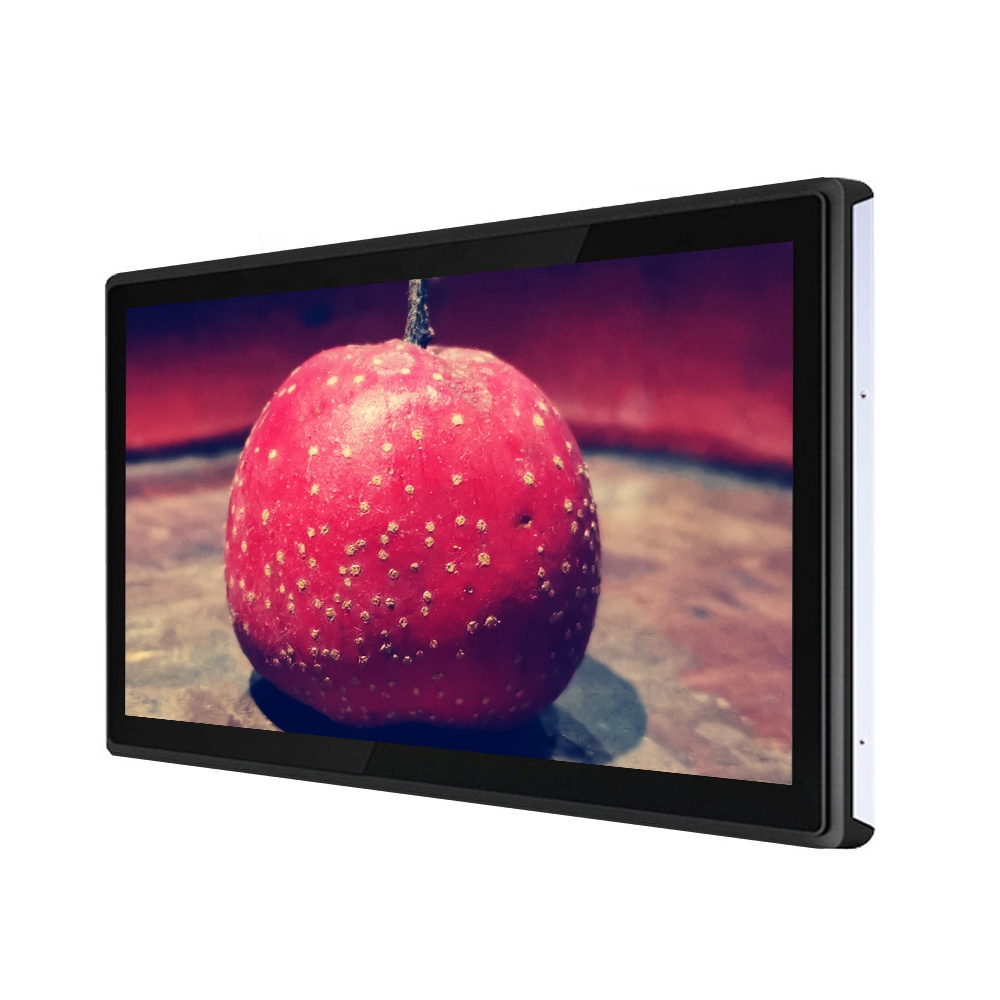

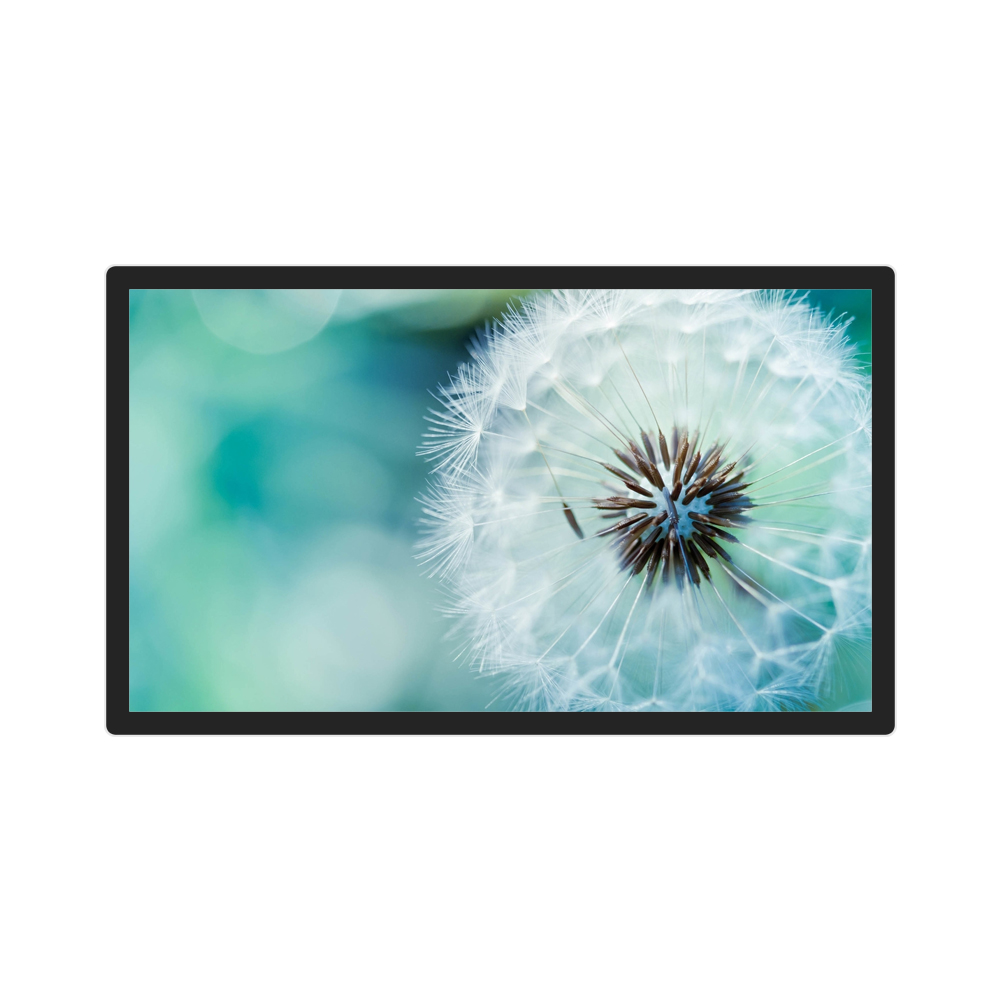

RisingStar 27 inch P-CAP touch screen lcd monitor for gas station
Designed for the gas station Gas pump TV.
A+ grade wide temperature LCD panel can keep working through
-20℃ to 70℃ environment without the cooling system.
Featured with IK10 tempered glass with optical bonding gives the best protection.
Multi-points P-CAP touch screen ensure the optimal reliability
CE certification | ISO9001 QMS | Rohs compliant
And any other test report or certification you need
For more detail please contact with us via the info@risinglcd.com
Rising Star 27" P-CAP Touch Screen LCD Monitor for Gas Stations Key Features:
1. 27-Inch P-CAP Touch Interface: Responsive multi-touch (glove/finger compatible) for interactive fuel pricing, promotions, or payment navigation.
2. High Brightness: Maintains visibility under direct sunlight for ads, safety alerts, and data.
3. IP65-Rated Durability: Resists dust, water jets, and oil splashes; operates in -30°C to 80°C environments.
4. Anti-Glare Glass: Reduces fingerprints and scratches from high-traffic use.
5. Low Power Consumption: 24/7 operation with ≤25W energy use to reduce utility costs.
Practical Benefits:
Slim Bezel: Fits standard gas pump housings or kiosks
1-Year Warranty: Includes corrosion-resistant touchscreen protection.
Target Users:
Gas station operators needing durable, interactive displays for customer engagement.
Convenience stores integrating touchscreen menus or loyalty programs at pumps.
| Screen Size | 27" |
| Display Area (mm) | 478.656(H) x 260.28(V) |
| Brightness | 2500 nits |
| Resolution | 1920x1080 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 3000:1 |
| Pixel Pitch (mm) | 0.31125(H) x 0.31125(V) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Color Saturation (NTSC) | 72% |
| Display Colors | 16.7M |
| Response Time (Typical) | 7/5 (Typ.)(Tr/Td) (ms) |
| Input Interface | USB TOUCH*1 EARPHONE OUT*1 AUDIO IN*1 VGA*1 DVI*1 HDMI*1 AC IN*1 |
| OSD Key | AUTO /MENU /LEFT/ RIGHT /EXIT/SELECT /POWER |
| Glass | 3MM Tempered Glass OCR |
| Touch Type | PCAP |
| Input Power | AC 200-240v |
| Power Consumption | 80W |
| Radiator System | Automatic heat dissipation |
| Dimensions (mm) | 369 x 377 x 58.6mm |
| Mounting | 100x100mm Screws metric M4 |
| Weight (Net) | TBD |
| Operating Temperature | -20 ˚ C ~ 70 ˚ C |
| Storage Temperature | -20 ˚ C ~ 70 ˚ C |
