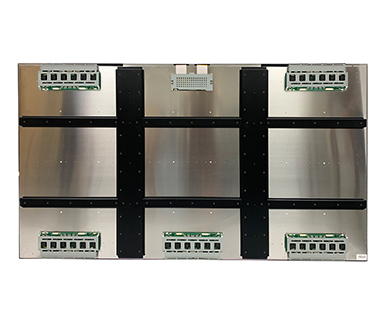

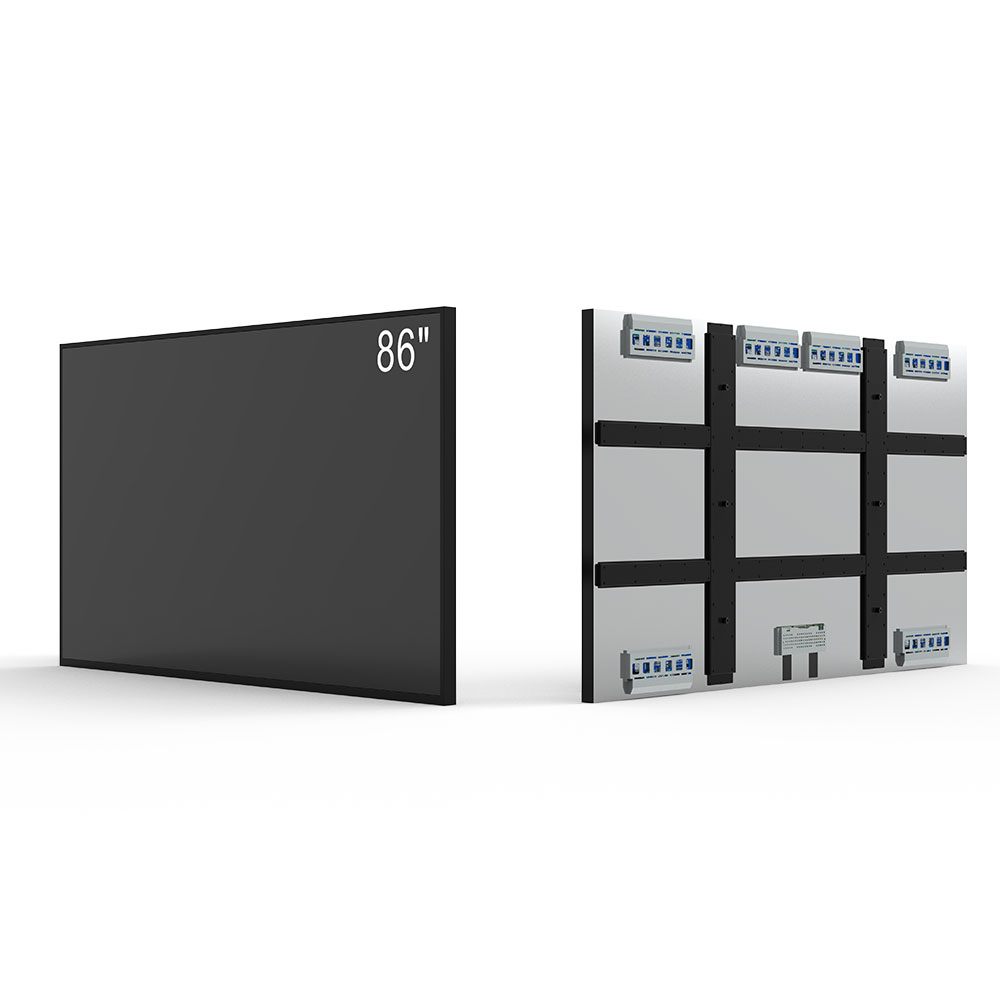

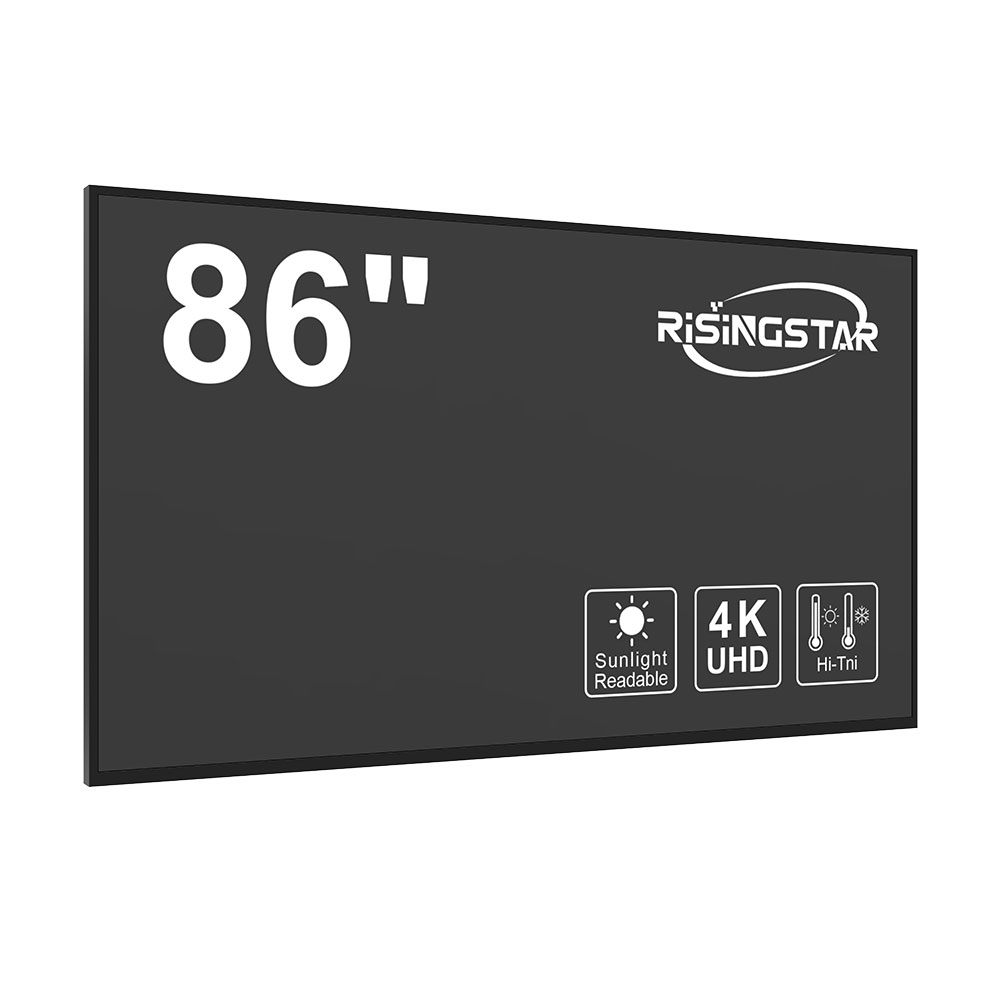

RisingLCD 86 inch big size high brightness LCD panel can be embedded in the outdoor device, 3000 nits high brightness and larger size, it is ideal promotional solution for any business in need of maximizing your products and services in the potential market!
RisingLCD big size 86 inch high brightness TFT LCD panel is along with 4K ultra High resolution, with 3000 nits brightness, it can easily engage and influence your audience, delivers your message with eye-catching details at every angles. You can set it up in a bus station, hospitality, mall or business setting, it is ideal promotional solution for any business in need of maximizing your product and services in the potential market.
86 inch high brightness TFT LCD panel Main Features:
1. Original LG a grade IPS open cell
2. High resolution: 3840*2160
3. Brightness up to 3000 nits
4. More brightness adjustment available: Auto brightness sensor, Manual brightness adjustment( PWM brightness adjustment, OSD brightness adjustment)
5. Almuinum alloy structure easy heat dissipation
6. 24/7 working time
IPS TFT panel technology
Superior image quality and color depth at 178' ultra-wide portrait orientations. It does not produce image distortion and minimizes color shift when viewed from different angles, it provides clear images and instantly optimizes screen color and brightness.
4K (UHD) High resolution
The 4K Ultra HD pictures quality ensures perfect colour and rich details in all possible broadcasting surroundings, ranging from shops to restaurants and office buildings, that bring your clear and color full visual enjoyment
Outstanding visibility high brightness
With RisingLCD customized great brightness of 3500 nits, the 86 inch high brightness TFL LCD panel well equipped to make the contents and images vividly stand out in any commercial location, you can experience superior pictures quality and optimized visibility.
Direct LED back light
RisingLCD customized direct LED back light improves brightness and contrast as well as improving their lifespan and reducing their power consumption.
Applications:
Large Shop Windows, Car Dealerships, Wedding Shops, Hotels, Tourism, entire retail and hospitality industry
Screen Diagonal | 86 inch |
Brand | Risingstar |
Model No | RS860EQY-ND30 |
Active Area | 1895.04(W)×1065.96(H) mm |
Resolution | 3840(RGB)×2160, UHD, 51PPI |
Physical Size | 1930(H)*1111(V)*75.5(D)mm |
Pixel Arrangement | R.G.B. Vertical Stripe |
Display Mode | a-Si TFT-LCD, LCM |
Contrast Ratio : | 1200:1 |
White Luminance ( Center ) | 2000 cd/m2 (Typ.) [cd/m2 ] |
Optical Response Time | 8 (Typ.)(G to G) ms |
Nominal Input Voltage | 12.0V (Typ.) |
Frame Rate | 60Hz |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
Weight [kg] | 40(Typ.) |
Interface Type | V-by-One 8 lane , 56 pins |
Support Color | 16.7M/1.07B , 70% DCI-P3GB |
Surface Treatment | Antiglare (Haze 28%),Hard coating (2H) |
RoHS Compliance | RoHS Compliance |
Temperature Range | 0 ~50 °C |
Storage (Non-Operating) | -20 ~ 60 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
