High brightness TFT LCD panel is a type of display designed for use in environments with high ambient light, these LCD panels are typically used in commercial, industrial, and public applications. we can offer the size from 21.5 inch to 98 inch for your optional.

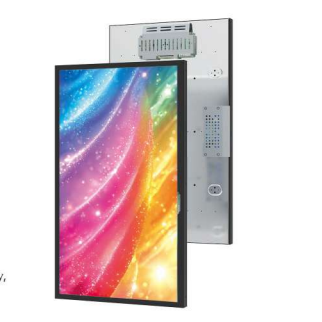

RS550EQQ-ND30 is RisingStar 55 inch high brightness TFT LCD panel, 4k ultra high resolution, 3000 nits brightness, 89/89/89/89 wide viewing angel, perfect for outdoor digital signage, passenger information display.
RS550EQQ-ND high brightness LCD panel Main Features:
High quality original opencell
Risingstar designed backlight
Ultra High resolution: 3840*2160
Brightness up to 3000 nits
Auto brightness control
Almuinum alloy structure easy heat dissipation
Auto brightness control
Different external lighting condition requires different brightness level, an onboard light sensor was built-in our industrial high brightness panel that measures the ambient light in the area and automatically adjust the image light accordingly, offer a best experience to the viewer, and also can save the energy cost, reduce the heat and extends the life of the screen.
3000 nit high brightness,
Our high brightness LCD screens provide a sun and daylight readable solution for outdoor displays, suitable for 24/7 operation. High brightness, touch screens are also available on request

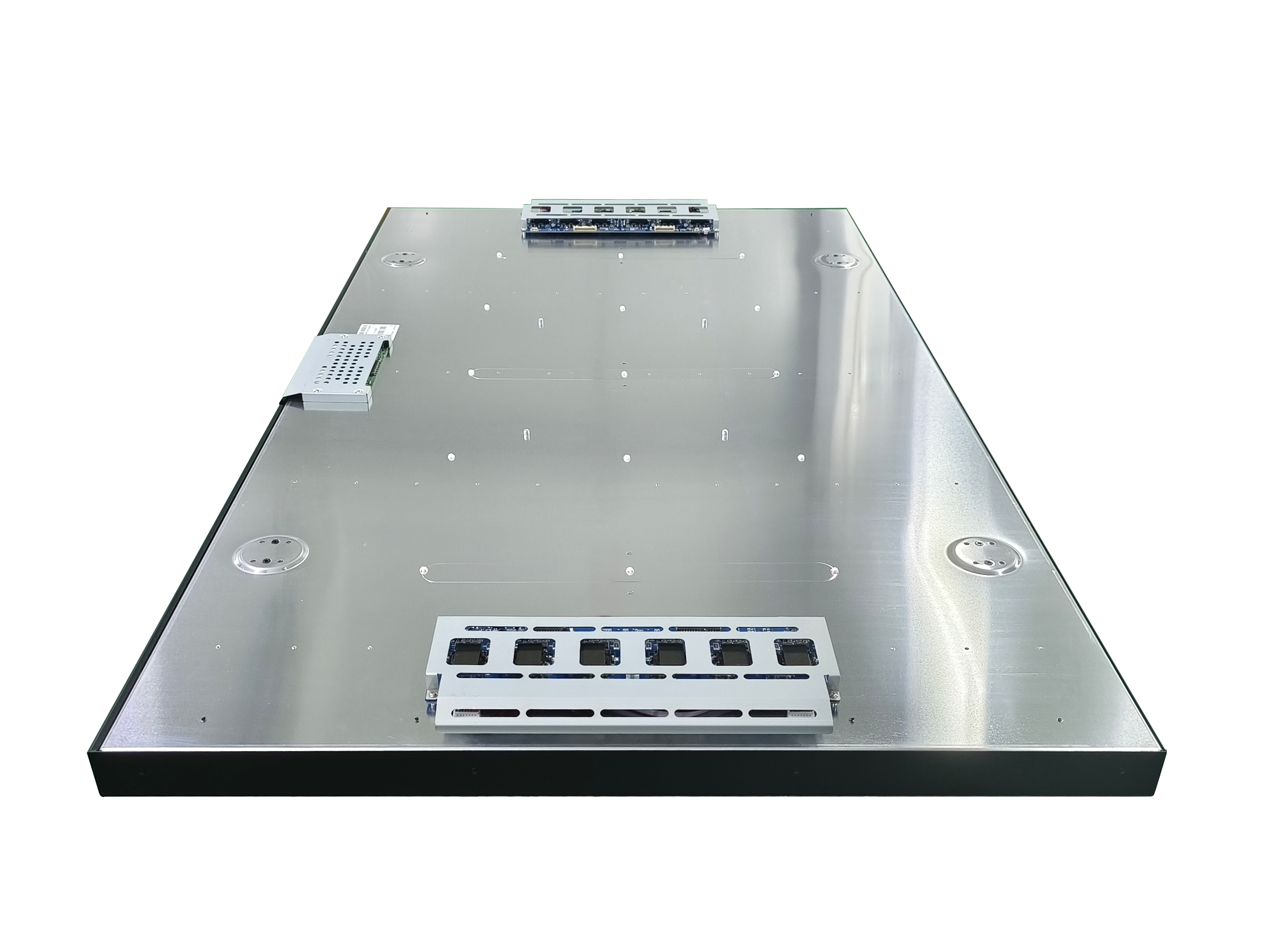

Almuinum alloy structure
We use almuinum alloy structure that is high thermal conductivity to maximize heat transfer, reduces the overall operation temperature, it is ideal to use in a higher environment, the heat dissipation is four times that of the ordinary metal structure.
| Screen Diagonal | 55 inch |
| Brand | Risingstar |
| Model No | RS550EQQ-ND30 |
| Active Area | 1209.6(W)×680.4(H) mm |
| Resolution | 3840(RGB)×2160, UHD, 80PPI |
| Physical Size | 1242.1(W)×718(H)×60.9(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 1300:1 |
| White Luminance ( Center ) | 3000 nits |
| Optical Response Time | 6 (Typ.)(G to G) ms |
| Nominal Input Voltage | 12V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [g] | 13.5g(Typ.) |
| Interface Type | V-by-One 8 lane , 51 pins |
| Support Color | 1.07B |
| Surface Treatment | Hard coating (2H) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | 0 ~50 °C |
| Storage (Non-Operating) | -20 ~ 65 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
