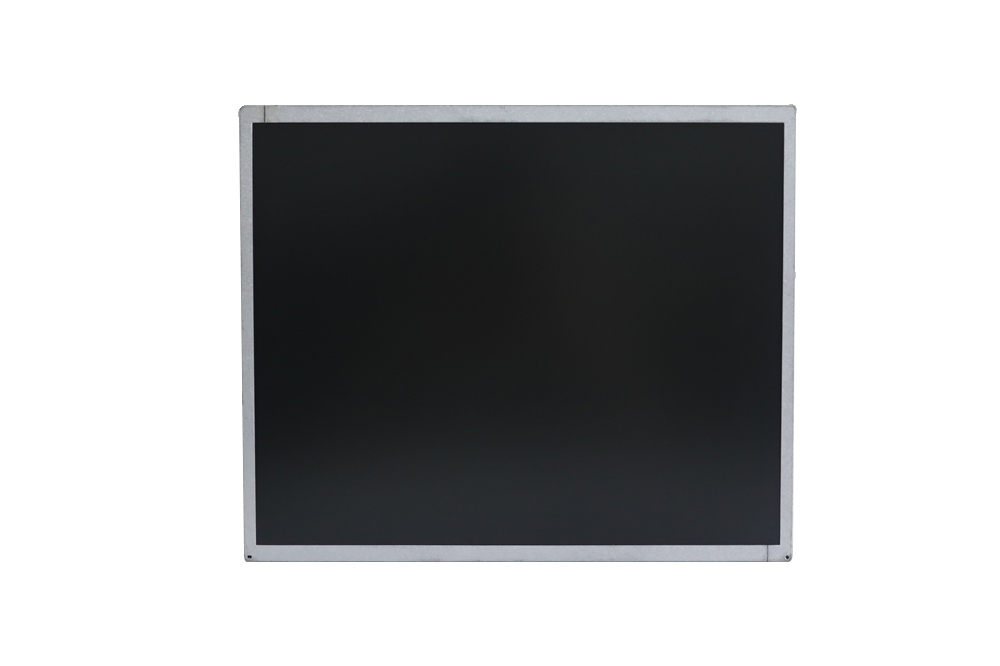

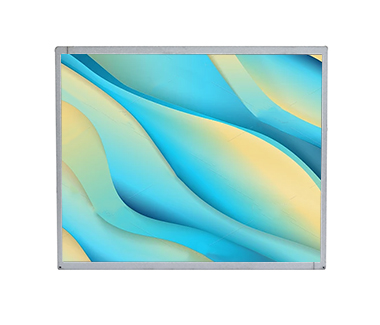

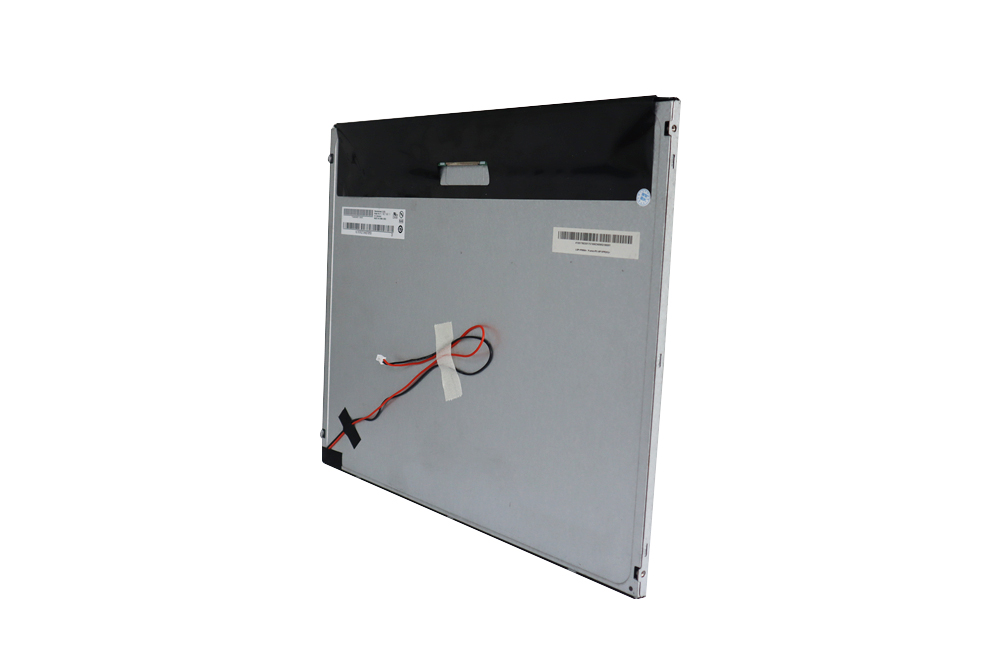

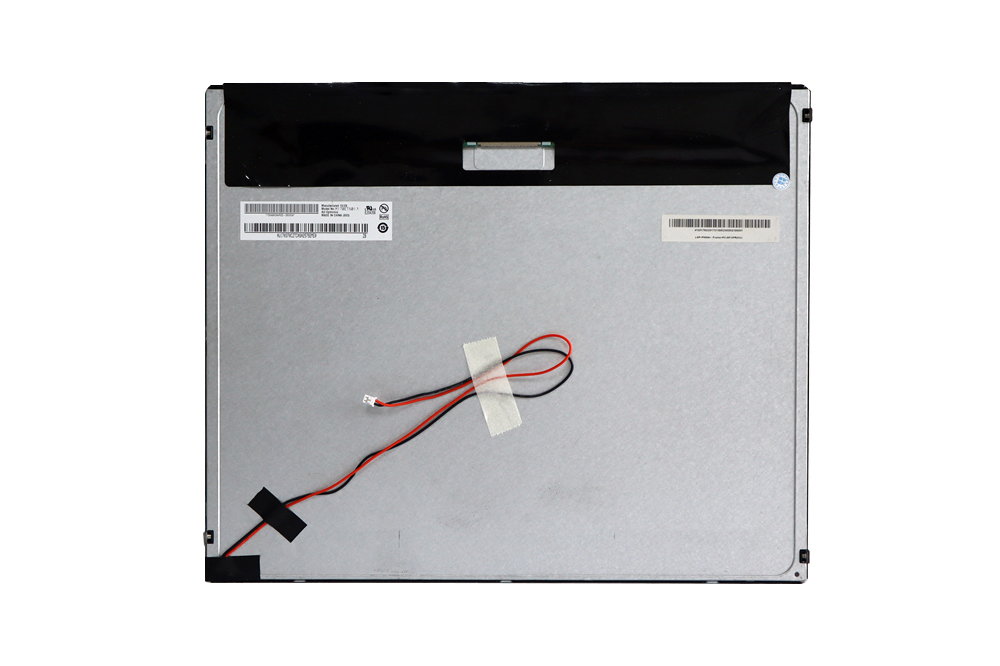

Product Introduction: 17 inch 700 nits TFT LCD Panel
Our 17 inch 700 nits TFT LCD panel is a cutting-edge display solution that offers superior brightness, visual clarity, and enhanced viewing experience. This high-performance panel is designed to meet the demanding requirements of a wide range of applications, including outdoor digital signage, industrial displays, medical systems, and transportation displays.
With a luminance of 700 nits, this TFT LCD panel ensures excellent visibility even under direct sunlight or brightly lit environments. The high brightness feature enables crisp and vibrant image reproduction, making it an ideal choice for outdoor digital signage applications. The panel's enhanced visibility is further enhanced by its wide viewing angles, allowing viewers to see the content clearly from various perspectives.
In addition to its impressive brightness, the 17-inch TFT LCD panel boasts a resolution of (insert specific resolution), ensuring sharp and detailed image quality. The panel's fast response time ensures smooth video playback.
With its versatile features and sturdy design, the 17 inch 700 nits TFT LCD panel provides a reliable and high-quality display solution. Its excellent visibility, sharp image quality, and durability make it the perfect choice for a wide range of applications where brightness and durability are paramount.
If you need more information, please contact us and we will reply you as soon as possible
| Screen Diagonal | 17 inch |
| Model No | RS170ETN-NE07 |
| Active Area | 337.92(W)×270.336(H) mm |
| Pixels | 1280(RGB)×1024, |
| Physical Size | 358.5(W)×296.5(H)×10.8(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| White Luminance ( Center ) | 700 cd/m2 (Typ.) [cd/m2 ] |
| Contrast Ratio | 1000:1 (Typ.) |
| Optical Response Time | 8 (Typ.)(G to G) ms |
| Nominal Input Voltage | 12V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Weight | 1.27Kgs (Typ.) |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Support Color | 16.7M (6-bit + Hi-FRC) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | 0 ~50 °C |
| Storage (Non-Operating) | -20 ~ 60 °C |
