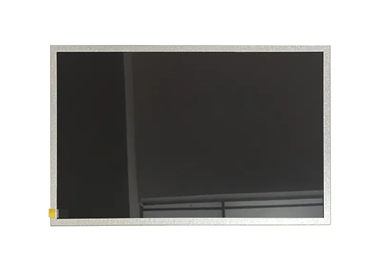

RS121TD02-GE08 RisingStar 12.1 inch TFT LCD module, 1280*800 resolution, with integrated LED driver, has a very wide industrial temperature range,a sunlight readable 800 nits brightness.
these rugged LCD module are rigorously tested to ensure compliance with various industry standards and are ideal for use in any high ambient light condition, and and will give you the intensity and brilliance your application requires.,
Sunlight readable 12.1 inch 800nits LCD module
Main Features:
True Industrial Grade LCD module
Long-Life Advanced LED Backlight, over 100,000 Hours Half-Life
800 nits (cd/m2) sunlight readable Brightness
Smart Brightness Control Exceptional Contrast for Improved Sunlight Readability
Wide Operational Temperature Range -30°C to 85°C (-22°F to 185°F)
Touch Screen Technologies Available (Optional)
Risingstar RS121AD02-GE08 is 12.1 inches, high resolution 1280*800 LCD panel, that boasts an impressive brightness level of 800nits can be comfortably viewed even in broad daylight. The module has an added advantage of an auto-brightness control feature that ensures optimal brightness levels at all times. A built-in light sensor detects ambient lighting conditions and adjusts image brightness accordingly, providing users with an unrivaled viewing experience. This functionality also helps in cost-saving by reducing energy consumption, heat output, and prolongs the lifespan of the module.
| Screen Diagonal | 12.1 inch |
| Brand | Risingstar |
| Model No | RS121TD02-GE08 |
| Active Area | 261.12(W)×163.2(H) mm |
| Resolution | 1280(RGB)×800, WXGA, 124PPI |
| Physical Size | 283(W)×185.1(H)×10.2(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 700:1 |
| White Luminance ( Center ) | 800 nits |
| Optical Response Time | 4/12 (Typ.)(Tr/Td) ms |
| Nominal Input Voltage | 3.3V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Weight [g] | 620g(Typ.) |
| Interface Type | LVDS (1 ch, 6/8-bit) , 20 pins |
| Support Color | 262K/16.7M , 40% NTSC |
| Surface Treatment | Antiglare,Hard coating (2H) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | -30 ~80 °C |
| Storage (Non-Operating) | -30 ~ 80 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
